Electrical System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
ES-20
4. Reconnect the intake hose to the fan and fasten with the gear clamp.
vi. Remove the fan from the mounting base by drilling out the 4 rivets securing the
two components together.
Installing the Brake Cooling Fan (Conquest models)
vii. If replacing the fan, remove the band clamp from the fan. Install the band clamp to
the new fan.
1. Rivet the fan to the mounting bracket assembly. Refer to the appropriate illustrated
parts manual for component structure and hardware.
3. Install the fan back to the metal intake duct and secure with the 4 bolts and
lockwashers. Orient the fan with the outlet facing towards the front of the vehicle
and facing slightly downward.
2. Connect the wiring from the vehicle wire harness to the fan.
On Conquests manufactured from CB17117:
i Disconnect the intake hose at the fan. The fan is located at the front right hand
corner of the vehicle mounted to the molded plastic intake duct. Photo ES-31
iii. Through the separated upper and lower body, remove the 4 fasteners that secure the
fan to the intake duct. Photo ES-32

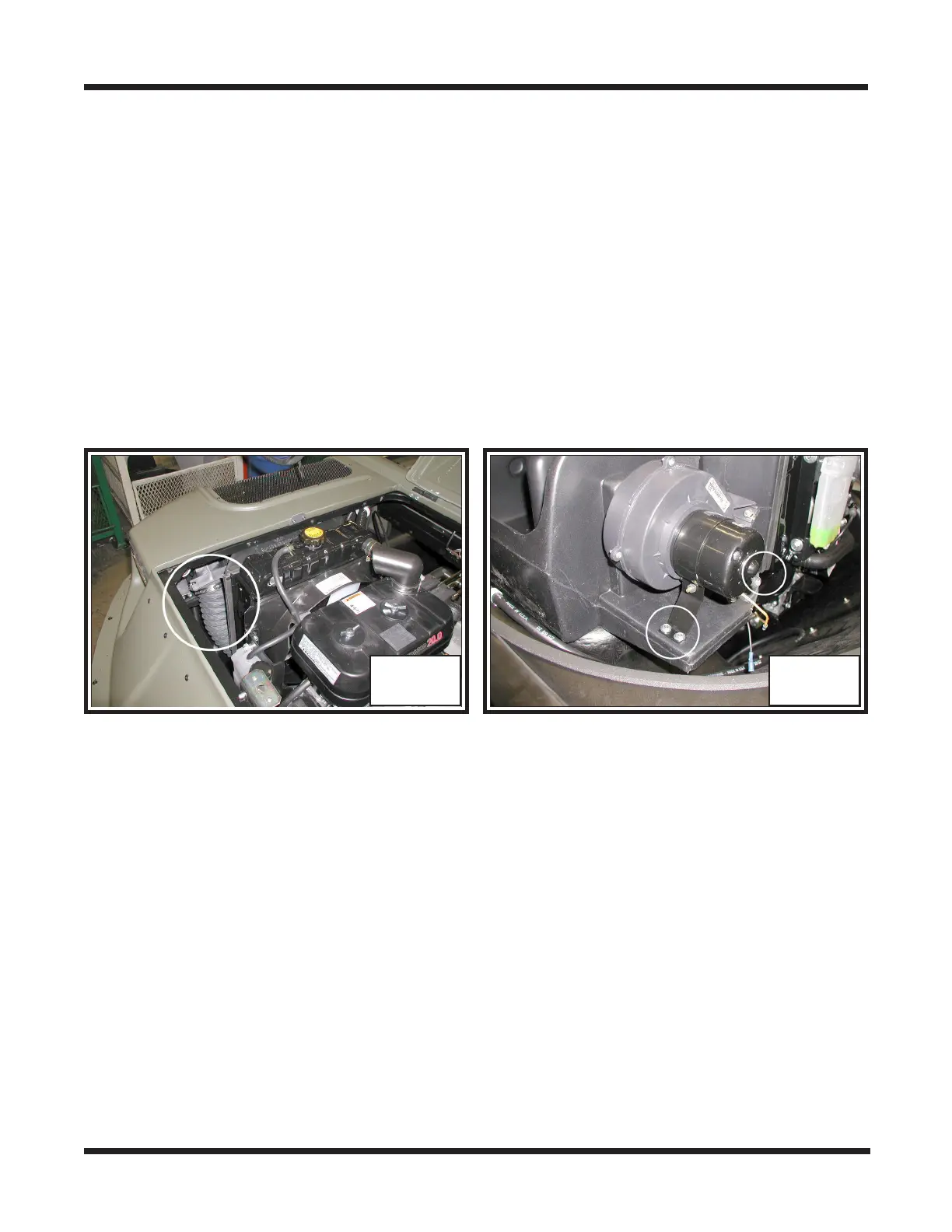

ES-31 ES-32
ii. Unplug the fan wiring.
iv. Navigate the fan out from the vehicle between the separated upper & lower body.
v. If the fan is being replaced, the mounting bracket will need to be removed for instal-
lation to the new blower fan.
