FOR MODELS: JGI, JGM, JGN, JGP AND JGQ SECTION 1 - DESIGN SPECIFICATIONS & DATA
PAGE 1-6 9/08
Product Information and Safety Plates

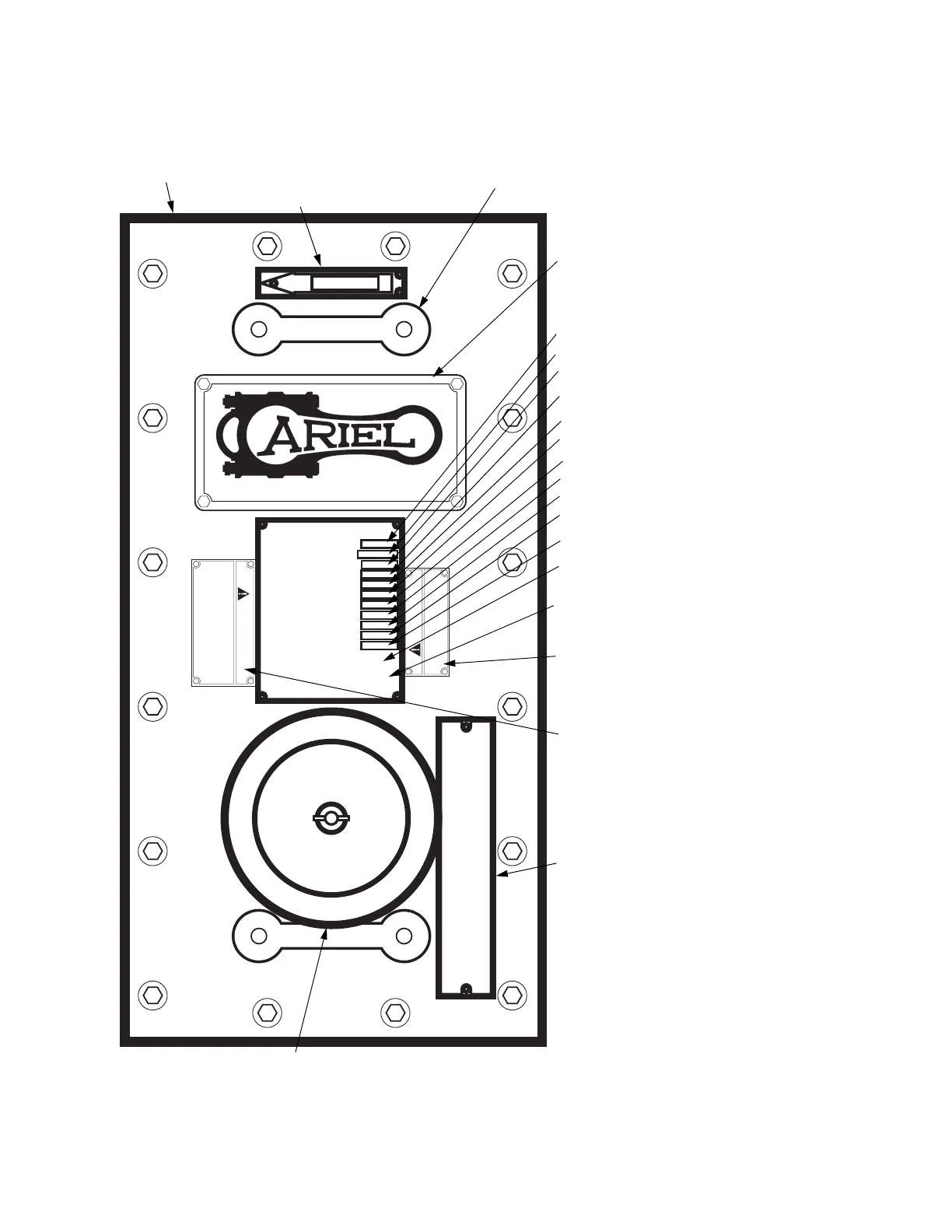

FIGURE 1-4 TOP COVER - TYPICAL JGM:N:P:Q
SEVERE PERSONAL INJURY AND PROPERTY DAMAGE
WILL RESULT IF SUCTION AND DISCHARGE VALVES
ARE NOT INSTALLED IN THEIR PROPER LOCATION.
CAUTION
A-0464
SEVERE PERSONAL INJURY AND PROPERTY
DAMAGE CAN RESULT IF PRESSURE SYSTEM IS
NOT COMPLETELY VENTED BEFORE LOOSENING
THE BOLTS ON FLANGES, HEADS, VALVE CAPS,
PACKING. CONSULT ARIEL TECHNICAL MANUAL
BEFORE PERFORMING ANY MAINTENANCE.
CAUTION
A-0463
www.arielcorp.com
ROTATION
A-719
A-0713
FILTER INSTALLATION INSTRUCTIONS
(1) CHANGE FILTER EVERY 6 MONTHS - 4000 HRS OR 10 PSID (0.7 BARD) AT NORMAL OPERATING TEMPERATURE.
(2) CLEAN FILTER BASE SURFACE - BE CERTAIN OLD GASKET IS REMOVED.
(3) REPLACE ONLY WITH AN ARIEL OEM FILTER.
(4) FILL FILTER WITH CLEAN OIL - SAME AS IN THE UNIT CRANKCASE.
(5) APPLY CLEAN LUBE OIL TO FILTER GASKET.
(6) TIGHTEN ONE TURN AFTER FILTER GASKET CONTACTS BASE.
(7) AFTER STARTING UNIT, CHECK FOR LEAKS - RETIGHTEN IF NECESSARY.
ARIEL CORPORATION
ARIEL FRAME MODEL
FRAME SERIAL NUMBER
STROKE
*FRAME RATED SPEED (RPM)
MINIMUM SPEED (RPM)
MAXIMUM ROD LOAD TENSION
MAXIMUM ROD LOAD COMPRESSION
ARIEL SHIPPING DATE
NORMAL LUBE OIL PRESSURE
MAXIMUM LUBE OIL TEMPERATURE
LUBE OIL PRESSURE
SHUTDOWN SETTING
*MAXIMUM UNIT SPEED IS THE LOWER OF
FRAME OR CYLINDER RATED SPEED
CONSULT ARIEL TECHNICAL MANUAL BEFORE
OPERATING UNIT OR PERFORMING MAINTENANCE.
A-14766
ARIEL LOGO NAME PLATE AND ADDRESS
Aluminum Top
Cover
Direction of Rotation Plate, Located
At The Drive End - Standard Rotation
Shown for JGM:N:P:Q
Manual Lifting
Handles
Breather
CAUTION!
Severe Personal Injury and Property Damage
will Result if Suction and Discharge Valves
are not Installed in their Proper Location.
CAUTION!
Severe Personal Injury and Property Damage
can Result if Pressure System is not
Completely Vented Before Loosening Bolts
on Flanges, Heads, Valve Caps. Consult Ariel
Technical Manual Before Performing any
Maintenance.
Filter Installation Instructions:
1. Change Filter every 6 Months - 4000 Hours o
10 psid (1.0 bar
d
) at Normal Operating
Temperature.
2. Clean Filter Base Surface - Be Certain Old
Gasket is Removed.
3. Replace Only with an Ariel Original
Equipment Manufacturer Filter.
4. Fill Filter with Clean Oil - Same as in Unit
Crankcase.
5. Apply Clean Lube Oil to Filter Gasket.
6. Tighten One Turn After Filter Gasket
Contacts Base.
7. After Starting Unit, Check for Leaks -
Retighten if necessary.
Ariel Frame Model Number
Stroke of Piston
*Frame Rated Speed (RPM)
Minimum Speed (RPM)
Maximum Rod Load Tension
Maximum Rod Load Compression
Ariel Shipping Date, Month, Year
Normal Lube Oil Pressure
Maximum Lube Oil Temperature
Lube Oil Pressure Shutdown Setting
*Maximum Unit Speed is the Lower of
Frame or Cylinder Rated Speed
Consult Ariel Technical Manual Before
Operating Unit or Performing Maintenance
Frame Serial Number
FRAME DATA/INFORMATION PLATE:
