FOR MODELS: JGI, JGM, JGN, JGP AND JGQ SECTION 7 - APPENDICES
PAGE 7-2 9/08
distributor for a replacement. Do not use worn or broken tools, or substitutes for Ariel fur-
nished tools.

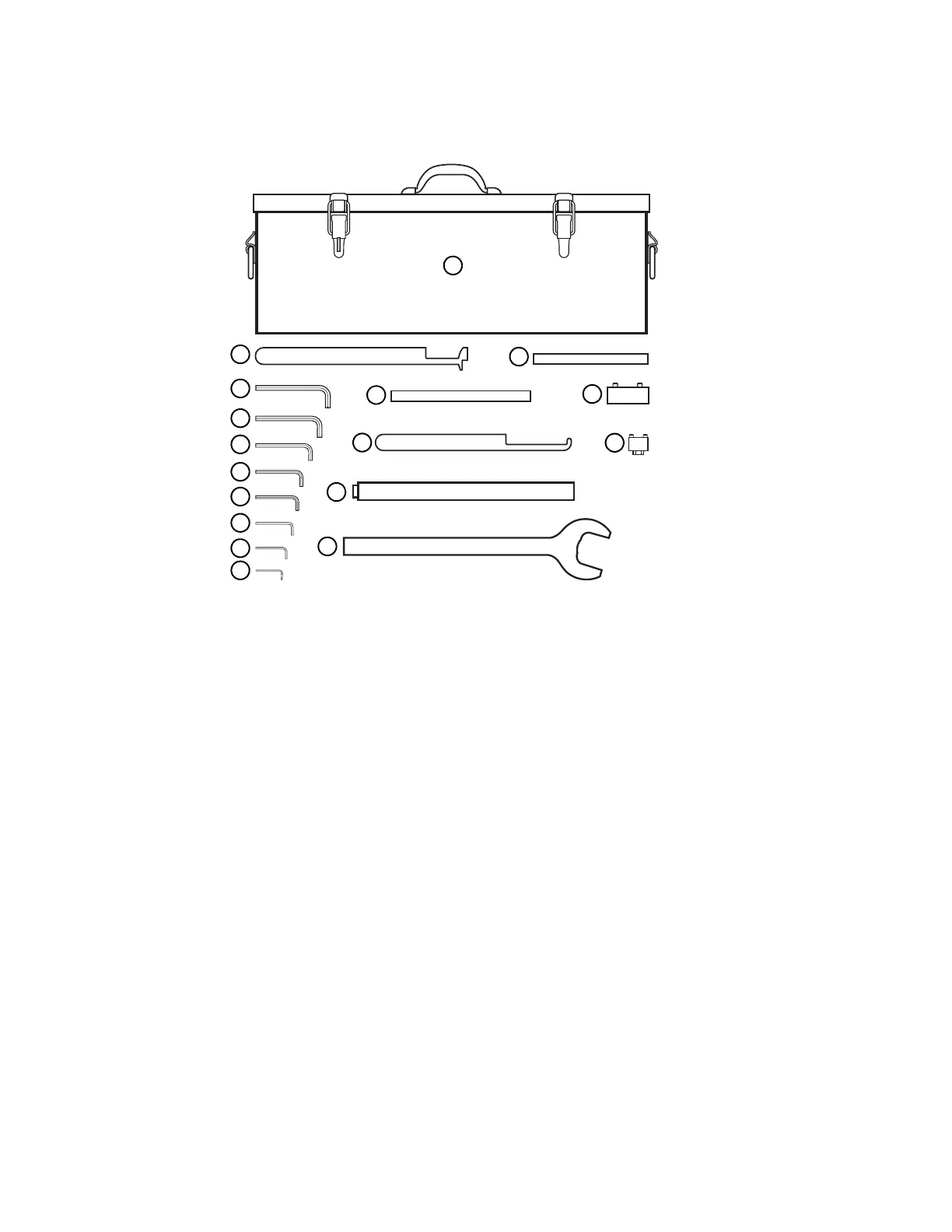

FIGURE 7-1 ARIEL FURNISHED TOOLS
1. Tool Box, A-0798.
2. Crank End Clearance Setting Tool, 0.035 in. (0.89 mm),
A-13801. Provided only for 2-3/4M, 3M, 2-3/4P-CE, and
3-1/4P-CE class cylinders.
3. 3/8 in. Allen Wrenches, Long Arm, 2 provided.
4. 5/16 in. Allen Wrenches, Short Arm, 3 provided.
5. 1/4 in. Allen wrench, Short Arm, 3 provided.
6. 3/16 in. Allen Wrenches, Short Arm, 5 provided.
7. 5/32 in. Allen Wrenches, Short Arm, 5 provided
8. 9/64 in. Allen Wrenches, Short Arm, 1 provided.
9. 1/8 in. Allen Wrenches, Short Arm, 10 provided.
10. 3/32 in. Allen Wrenches, Short Arm, 10 provided.
11. Valve Puller Tool, 5/16 x 1/2 in. UNF, A-0135.
12. Valve Puller Tool, 1/4 x 3/8 in. UNF, A-0409.
13. Piston Turning/Piston Nut Torquing Tool, A-0279, for 3/4
in. square drive wrench.
14. Crank End Clearance Setting Tool, 0.035 in. (0.89 mm),
A-11344. Provided only for 2-1/4P-CE class cylinders.
15. Piston Turning Tool, A-1678, for 9/16 in. socket, pro-
vided only with small tandem cylinders.
16. Peg Wrench for Round Crosshead-Balance Nuts, 3/4 in.
Diameter, A-0076.
17. Open End Wrench for Hex Crosshead-Balance Nuts,
2 in., B-0016.
18. Piston Entering Sleeve, provided only with compressors
cylinders with step to bore. See Ariel Parts Book for part
number, not shown.
19. Piston Rod Entering Sleeve A-8561, not shown.
20. Fastener Tightening Torque Chart, ER-63, not shown.
1
3
4
9
8
7
6
5
13
11
12
10
14
16
17
15
2
