38 ASUS 3DP-V375 DX User’s Manual

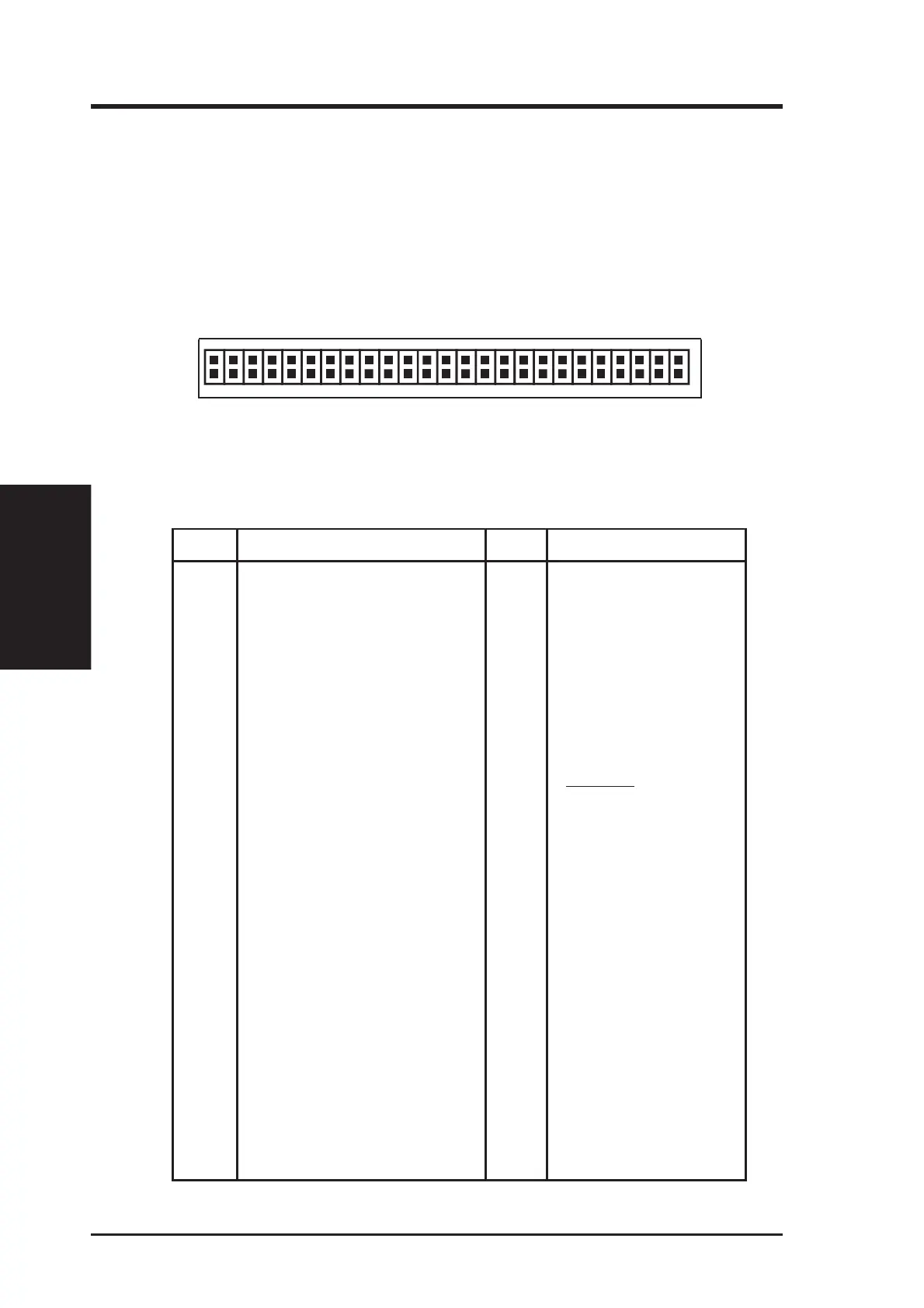

16-BIT LPB Connector
This LPB (Local Peripheral Bus) Connector is also an extension of the
VESA feature connector. The 16-bit LPB connector supports a larger data
transfer than the 8-bit LPB connector.
Pin Signal Description Pin Signal Description
1 GND 2 PA0/LPB0
3 GND 4 PA1/LPB1
5 GND 6 PA2/LPB2
7 EVIDEO/VREQ/VRDY/HS 8 PA3/LPB3
9 ESYNC/NF 10 PA4/LPB4
11 EVCLK/CREQ/CRDY/VS 12 PA5/LPB5
13 N/C 14 PA6/LPB6
15 GND 16 PA7/LPB7
17 GND 18 VCLK/LCLK
19 GND 20 BLANK/NF
21 GND 22 HSYNC/NF
23 N/C 24 VSYNC/NF
25 N/C 26 GND
27 N/C 28 N/C
29 GND 30 NF/I
2
C CLK
31 N/C 32 NF/I
2
C DATA
33 NF/ENABLE2 34 NF/ENABLE1
35 N/C 36 N/C
37 GND 38 PA8/LPB8
39 GND 40 PA9/LPB9
41 GND 42 PA10/LPB10
43 PA12/LPB12 44 PA11/LPB11
45 PA13/LPB13 46 GND
47 PA14/LPB14 48 GND
49 PA15/LPB15 50 GND
49
50
1
2
J1A
VIII. Hardware Information
VIII. H/W Information
LPB Connector
To Next Page
