Asus B150M-A D3 User Manual

1-2
Chapter 1: Product introduction

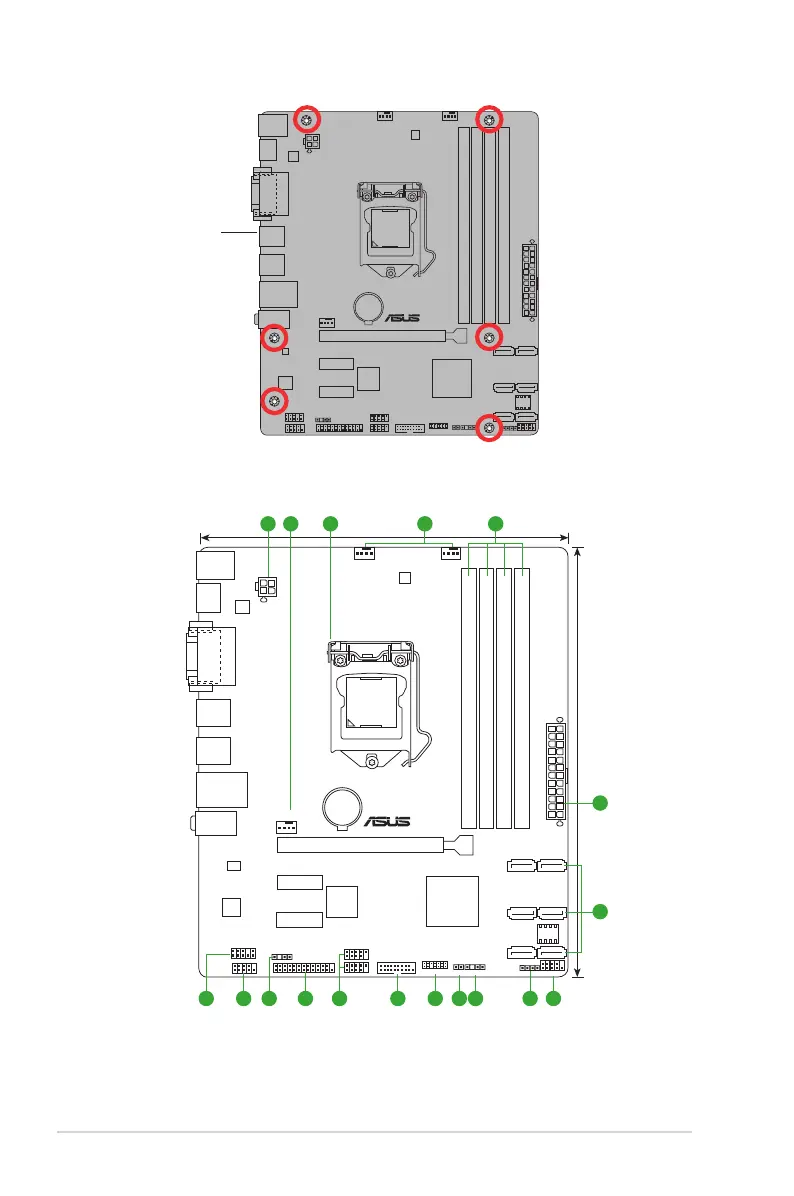

Place this side
towards the rear
of the chassis
1.2.3 Motherboard layout
B150M-A D3
B150M-A D3
PCIEX16
PCIEX1_1
PCIEX1_2
SPEAKER
F_PANEL
CLRTC
TPM
SPDIF_OUT
USB1112
USB910
LPT
USB3_12
AAFP
COM
ATX12V
EATXPWR
CHA_FAN2
CPU_FAN
CHA_FAN1
BATTERY
Super
I/O
ALC
887
Realtek
8111H
ASM
1442K
DIGI
+VRM
23.4cm(9.2in)
LGA1151
Intel
®
B150
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
SATA6G_1
SATA6G_3
SATA6G_2
SATA6G_4
SATA6G_5 SATA6G_6
AUDIO
KBMS
HDMI
LAN_USB3_34
USB78
USB3_56
20.1cm(7.9in)
128Mb
BIOS
CHASSIS
DVI VGA
321 42
1
89 671011
5
1214 131516

Asus B150M-A D3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel B150
Socket	LGA 1151
Memory Type	DDR3
Memory Slots	4
Maximum Memory	64GB
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA Ports	6 x SATA 6Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB 2.0 Ports	6
LAN	Realtek RTL8111H Gigabit LAN
Video Outputs	VGA, HDMI
