ASUS B150M-A D3
1-11
IRQ assignments for this motherboard
A B C D
PCIEx16 shared – – –
PCIEx1_1 – – shared –
PCIEx1_2 – – – shared
Realtek8111HLAN – – – shared
USB3.0Controller shared – – –
SATAController shared – – –
HDAudio shared – – –
1.6 Headers

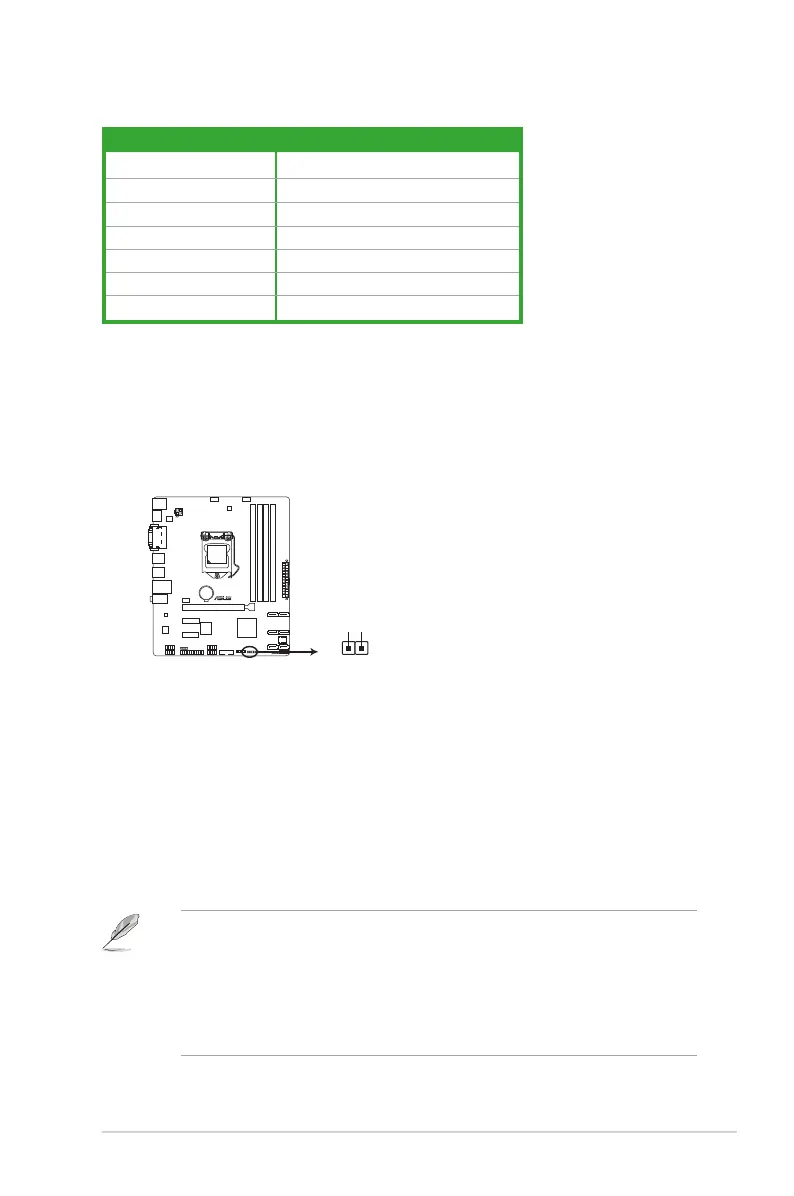

1. Clear RTC RAM (2-pin CLRTC)
ThisheaderallowsyoutocleartheRealTimeClock(RTC)RAMinCMOS.Youcan
cleartheCMOSmemoryofdate,time,andsystemsetupparametersbyerasingthe
CMOSRTCRAMdata.TheonboardbuttoncellbatterypowerstheRAMdatain
CMOS,whichincludesystemsetupinformationsuchassystempasswords.
To erase the RTC RAM:
1. TurnOFFthecomputerandunplugthepowercord.
2. Useametalobjectsuchasascrewdrivertoshortthetwopins.
3. PlugthepowercordandturnONthecomputer.
4. Holddownthe<Del>keyduringthebootprocessandenterBIOSsetuptore-
enter data.
• Ifthestepsabovedonothelp,removetheonboardbatteryandshortthetwopins
againtocleartheCMOSRTCRAMdata.AfterclearingtheCMOS,reinstallthe
battery.
• YoudonotneedtocleartheRTCwhenthesystemhangsduetooverclocking.For
systemfailureduetooverclocking,usetheCPUParameterRecall(C.P.R.)feature.
Shutdownandrebootthesystem,thentheBIOSautomaticallyresetsparameter
settingstodefaultvalues.
B150M-A D3
CLRTC
+3V_BAT GND
PIN 1
B150M-A D3 Clear RTC RAM

Asus B150M-A D3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel B150
Socket	LGA 1151
Memory Type	DDR3
Memory Slots	4
Maximum Memory	64GB
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA Ports	6 x SATA 6Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB 2.0 Ports	6
LAN	Realtek RTL8111H Gigabit LAN
Video Outputs	VGA, HDMI
