ASUS B150M-A D3
1-19

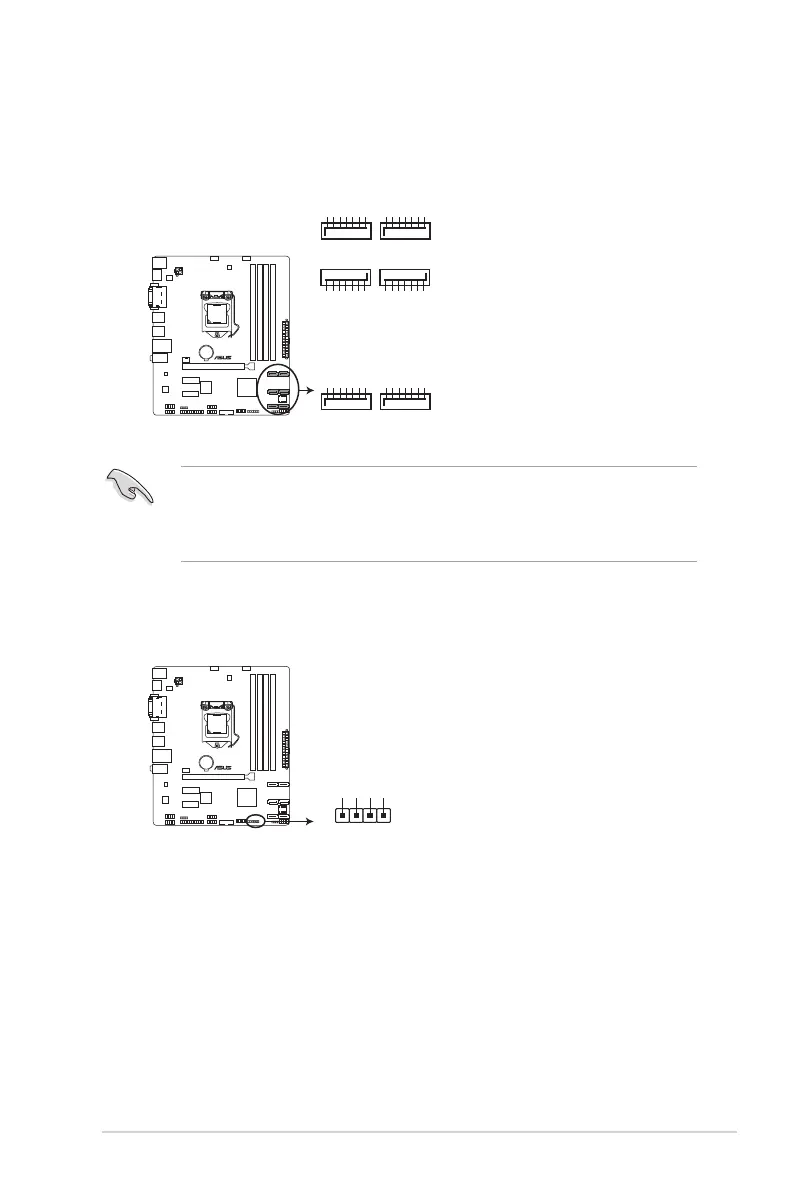

9. Intel
®
B150 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~6)
TheseconnectorsconnecttoSerialATA6.0Gb/sharddiskdrivesviaSerialATA6.0
Gb/ssignalcables.
•YoumustinstallWindows.XPServicePack3orlaterversionbeforeusingSerialATA
harddiskdrives.
•Whenusinghot-plugandNCQ,settheSATA Mode SelectionitemintheBIOSto
[AHCI].Seesection2.6.5 SATA Configuration for details.
10. Speaker connector (4-pin SPEAKER)
The4-pinconnectorisforthechassis-mountedsystemwarningspeaker.Thespeaker
allows you hear system beeps and warnings.
SATA6G_3
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
SATA6G_4
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXN4
RSATA_RXP4
GND
B150M-A D3
B150M-A D3 SATA 6.0Gb/s connectors
SATA6G_1
GND RSATA_RXP1 RSATA_RXN1 GND RSATA_TXN1 RSATA_TXP1 GND
SATA6G_5
GND RSATA_RXP5 RSATA_RXN5 GND RSATA_TXN5 RSATA_TXP5 GND
SATA6G_2
GND RSATA_RXP2 RSATA_RXN2 GND RSATA_TXN2 RSATA_TXP2 GND
SATA6G_6
GND RSATA_RXP6 RSATA_RXN6 GND RSATA_TXN6 RSATA_TXP6 GND
B150M-A D3
B150M-A D3 Speaker Out connector
+5V GND GND Speaker Out
SPEAKER
PIN 1

Asus B150M-A D3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel B150
Socket	LGA 1151
Memory Type	DDR3
Memory Slots	4
Maximum Memory	64GB
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA Ports	6 x SATA 6Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB 2.0 Ports	6
LAN	Realtek RTL8111H Gigabit LAN
Video Outputs	VGA, HDMI
