ASUS B150M-A D3

1-3

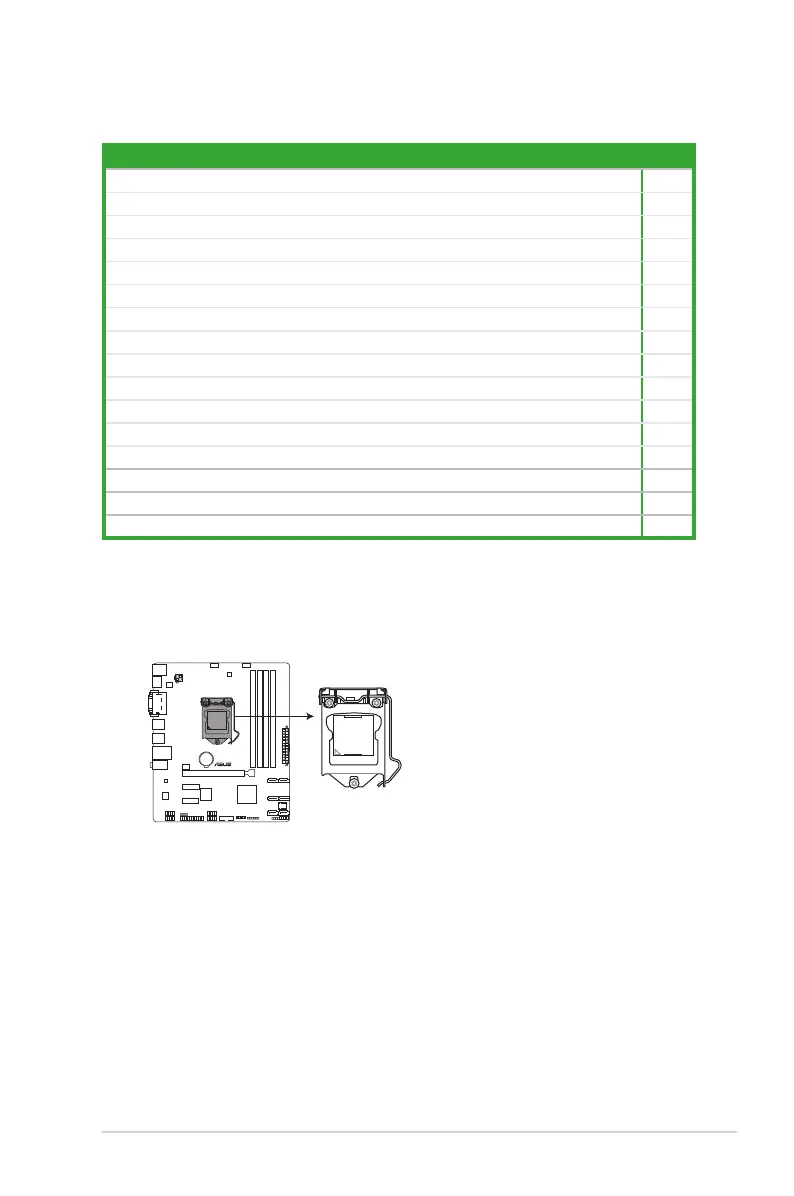

1.2.4 Layout contents

1.3 Central Processing Unit (CPU)

ThismotherboardcomeswithasurfacemountLGA1151socketdesignedforthe6th

GenerationIntel

Core™i7/Core™i5/Core™i3,Pentium

andCeleron

processors.

Connectors/Jumpers/Slots/LED Page

1. ATXpowerconnectors(24-pinEATXPWR,4-pinATX12V)

1-16

2. CPU,chassisfanconnectors(4-pinCPU_FAN,4-pinCHA_FAN1~2) 1-14

3. Intel

LGA1151CPUsocket 1-3

4. DDR3DIMMslots 1-7

5. Intel

SerialATA6.0Gb/sconnector(7-pinSATA6G_1~6) 1-19

6. Systempanelconnector(10-1pinF_PANEL) 1-18

7. Speakerconnector(4-pinSPEAKER)

1-19

8. Chassisintrusionconnector(4-1pinCHASSIS) 1-21

9. ClearRTCRAM(2-pinCLRTC) 1-11

10. TPMheader(14-1pinTPM) 1-20

11. USB3.0connector(20-1pinUSB3_12) 1-15

12. USB2.0connectors(10-1pinUSB910,USB1112) 1-15

13. LPTconnector(26-1pinLPT) 1-20

14. Digitalaudioconnector(4-1pinSPDIF_OUT) 1-17

15. Serialportconnector(10-1pinCOM) 1-14

16. Frontpanelaudioconnector(10-1pinAAFP) 1-17

B150M-A D3

B150M-A D3 CPU socket LGA1151

Questions and Answers:

Need help?

Do you have a question about the Asus B150M-A D3 and is the answer not in the manual?

Asus B150M-A D3 Specifications

General

Form Factor	Micro ATX
Chipset	Intel B150
Socket	LGA 1151
Memory Type	DDR3
Memory Slots	4
Maximum Memory	64GB
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA Ports	6 x SATA 6Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
USB 2.0 Ports	6
LAN	Realtek RTL8111H Gigabit LAN
Video Outputs	VGA, HDMI
