Asus K73SV User Manual

44 Notebook PC User Manual

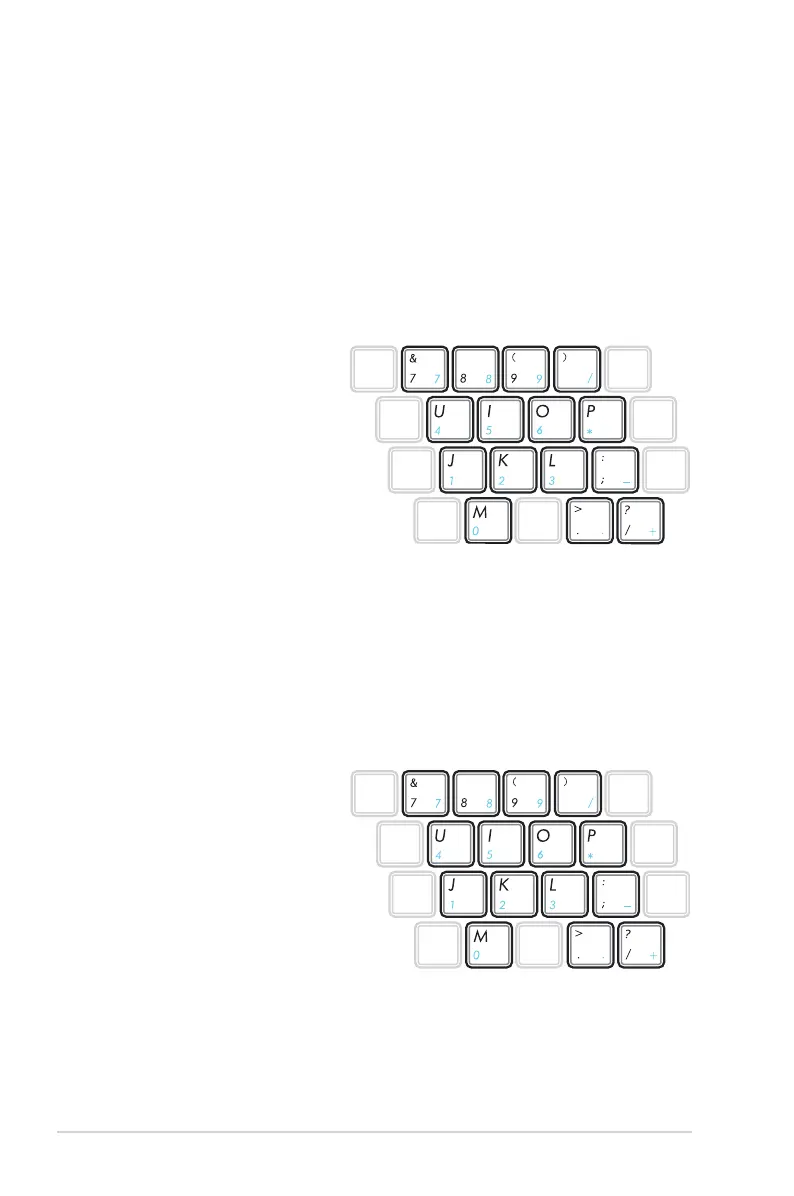

Keyboard as a Numeric Keypad
The numeric keypad is embedded in the keyboard and consists
of 15 keys that make number intensive input more convenient.
These dual-purpose keys are labeled in orange on the key caps.
Numeric assignments are located at the upper right hand corner
of each key as shown in the figure. When the numeric keypad is
engaged by pressing [Fn][Ins/Num LK], the number lock LED lights
up. If an external keyboard is connected, pressing the [Ins/Num LK]
on the external keyboard enables/disables the NumLock on both
keyboards simultaneously.
To disable the numeric
keypad while keeping
the keypad on an external
keyboard activated, press the
[Fn][Ins/Num LK] keys on the
Notebook PC.
Keyboard as Pointers
The keyboard can be used as pointers while Number Lock is ON or
OFF in order to increase navigation ease while entering numeric
data in spreadsheets or similar applications.
With Number Lock OFF, press [Fn] and one of the pointer keys
shown below. For example [Fn][8] for up, [Fn][K] for down, [Fn][U] for
left, and [Fn][O] for right.
With Number Lock ON,
use [Shift] and one of the
pointer keys shown below.
For example [Shift][8] for up,
[Shift][K] for down, [Shift][U] for
left, and [Shift][O] for right.

Asus K73SV Specifications

General

Graphics	NVIDIA GeForce GT 540M
Card Reader	3 -in-1 card reader ( SD/ MS/ MMC)
Networking	Integrated 802.11 b/g/n
LAN	10/100/1000 Base T
Battery	6Cells : 5200 mAh 56 Whrs
HDMI	1 x HDMI
Wi-Fi	802.11 b/g/n
Processor	Intel Core i7 2630QM / i5 2410M / i3 2310M
Display	17.3-inch HD (1600x900) or Full HD (1920x1080)
RAM	Up to 8GB DDR3
Storage	500GB
Operating System	Windows 7 Home Premium
CPU	Intel Core i7 2630QM / i5 2410M / i3 2310M
Chipset	Intel HM65
Memory	Up to 8GB DDR3
Display Options	17.3-inch HD (1600x900) or Full HD (1920x1080)
Graphics VRAM	1GB/2GB DDR3
Storage Options	500GB
Optical Drive	DVD Super Multi
Camera	0.3 Mega Pixel web camera
Bluetooth	Bluetooth V3.0+HS (optional)
Interface	1 x Microphone-in jack, 1 x Headphone-out jack, 1 x VGA port/Mini D-sub 15-pin for external monitor, 3 x USB 2.0 port(s), 1 x USB 3.0 port(s), 1 x RJ45 LAN Jack for LAN insert, 1 x HDMI
Audio	Built-in Speakers And Microphone
Power Adapter	Output : 19 V DC, 4.74 A, 90 W Input : 100 -240 V AC, 50/60 Hz universal
Optical Drive Type	DVD Super Multi
USB Ports	3 x USB 2.0 port(s), 1 x USB 3.0 port(s)
Weight	3.3 kg (with 6-cell battery)
