ASUS M2N-MX
1-7
M2N-MX
R
Do not overtighten the screws! Doing so can damage the motherboard.
1
.
3
.
2
P
l
a
c
e
m
e
n
t
d
i
r
e
c
t
i
o
n

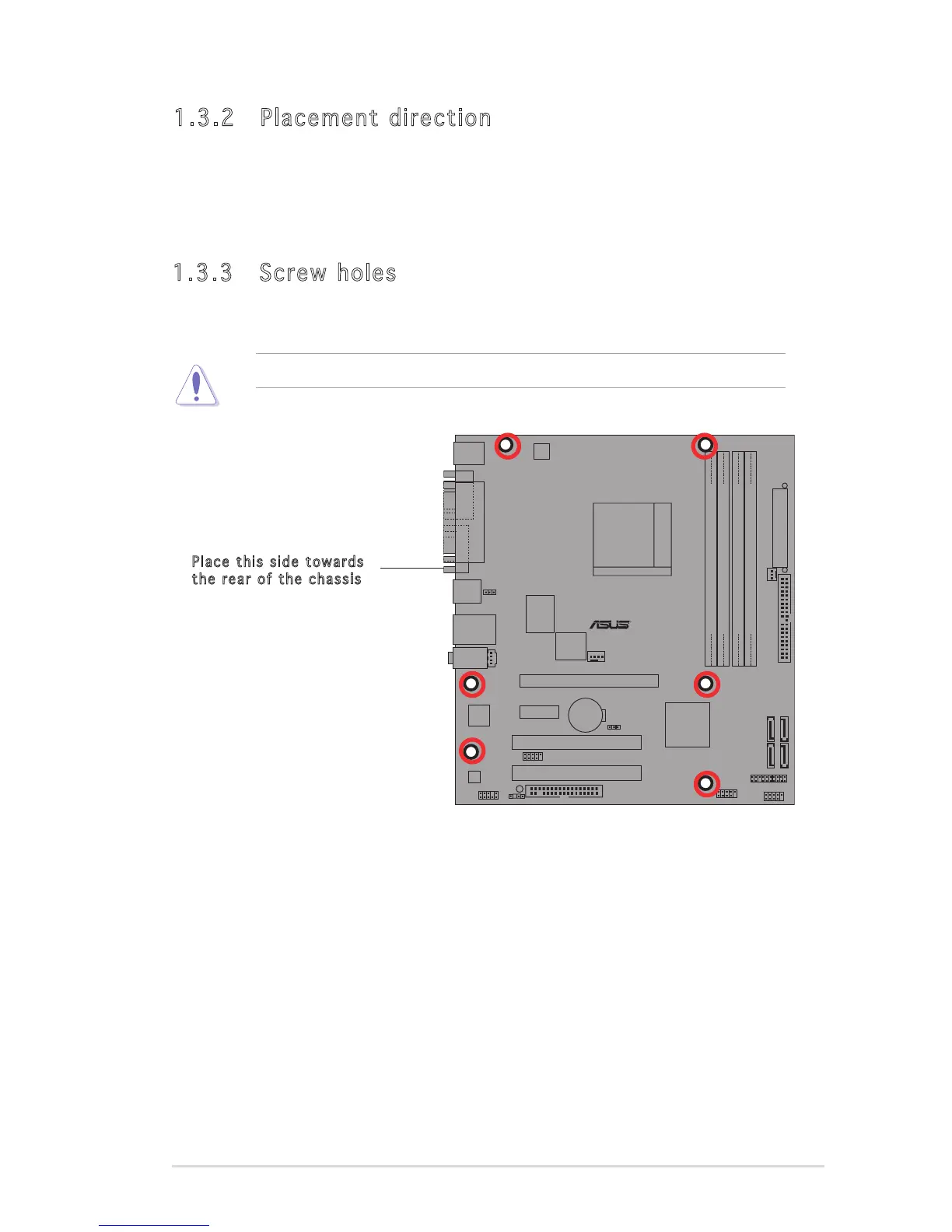

When installing the motherboard, make sure that you place it into the
chassis in the correct orientation. The edge with external ports goes to the
rear part of the chassis as indicated in the image below.
P
l
a
c
e
t
h
i
s
s
i
d
e
t
o
w
a
r
d
s
t
h
e
r
e
a
r
o
f
t
h
e
c
h
a
s
s
i
s
1
.
3
.
3
S
c
r
e
w
h
o
l
e
s
Place six (6) screws into the holes indicated by circles to secure the
motherboard to the chassis.
16
18
Table of Contents
Default Chapter
3
Table of Contents
3
Canadian Department of Communications Statement
6
Federal Communications Commission Statement
6
Notices
6
Electrical Safety
7
Safety Information
7
M2N-MX Specifications Summary
8
Chapter 1: Product Introduction
11
Special Features
12
Product Highlights
12
High Definition Audio
13
Innovative ASUS Features
14
Before You Proceed
15
Motherboard Overview
16
Motherboard Layout
16
Placement Direction
17
Screw Holes
17
Central Processing Unit (CPU)
18
1.4.1 Installing the CPU
18
Installing the Heatsink and Fan
20
System Memory
22
Overview
22
Memory Configurations
22
Installing a DIMM
24
Removing a DIMM
24
Expansion Slots
25
Installing an Expansion Card
25
Configuring an Expansion Card
25
Standard Interrupt Assignments
26
Irq Assignments for this Motherboard
26
PCI Slots
27
PCI Express X1 Slot
27
PCI Express X16 Slot
27
Jumpers
28
To Erase RTC RAM
28
Clear RTC RAM CLRTC
28
1.10 Connectors
30
1.10.1 Rear Panel Connectors
30
1.10.2 Internal Connectors
31
Serial Ata Connectors
33
USB Connectors 10-1 Pin USB56/78/910
35
Optical Drive Audio in Connector 4-Pin CD
35
Front Panel Audio Connector 10-1 Pin AAFP
36
System Power Led
38
System Panel Connector
38
Reset Button
38
Chapter 2 : BIOS Setup
40
Managing and Updating Your BIOS
40
Creating a Bootable Floppy Disk
40
ASUS EZ Flash 2 Utility
41
AFUDOS Utility
42
Updating the Bios File
43
ASUS Crashfree BIOS 2 Utility
44
ASUS Update Utility
45
Updating the Bios through a Bios File
46
BIOS Setup Program
47
BIOS Menu Screen
48
Menu Bar
48
Navigation Keys
48
Menu Items
49
Sub-Menu Items
49
Configuration Fields
49
Pop-Up Window
49
Scroll Bar
49
General Help
49
Main Menu
50
System Time
50
System Date
50
Legacy Diskette a
50
IDE Configuration
51
Primary IDE Master/Slave
51
SATA1, SATA2, SATA3, and SATA4
53
System Information
54
Advanced Menu
55
CPU Configuration
55
Chipset
56
Southbridge Configuration
58
Hyper Transport Configuration
58
Onboard Devices Configuration
59
PCI Pnp
60
USB Configuration
61
Jumperfree Configuration
62
Power Menu
64
Suspend Mode
64
Repost Video on S3 Resume
64
ACPI Support
64
ACPI APIC Support
64
APM Configuration
65
Hardware Monitor
66
Boot Menu
67
Boot Device Priority
67
Boot Settings Configuration
68
Security
69
Change User Password
70
Clear User Password
70
Tools Menu
71
ASUS EZ Flash 2
71
Exit Menu
72
