1-26 Chapter 1: Product introduction

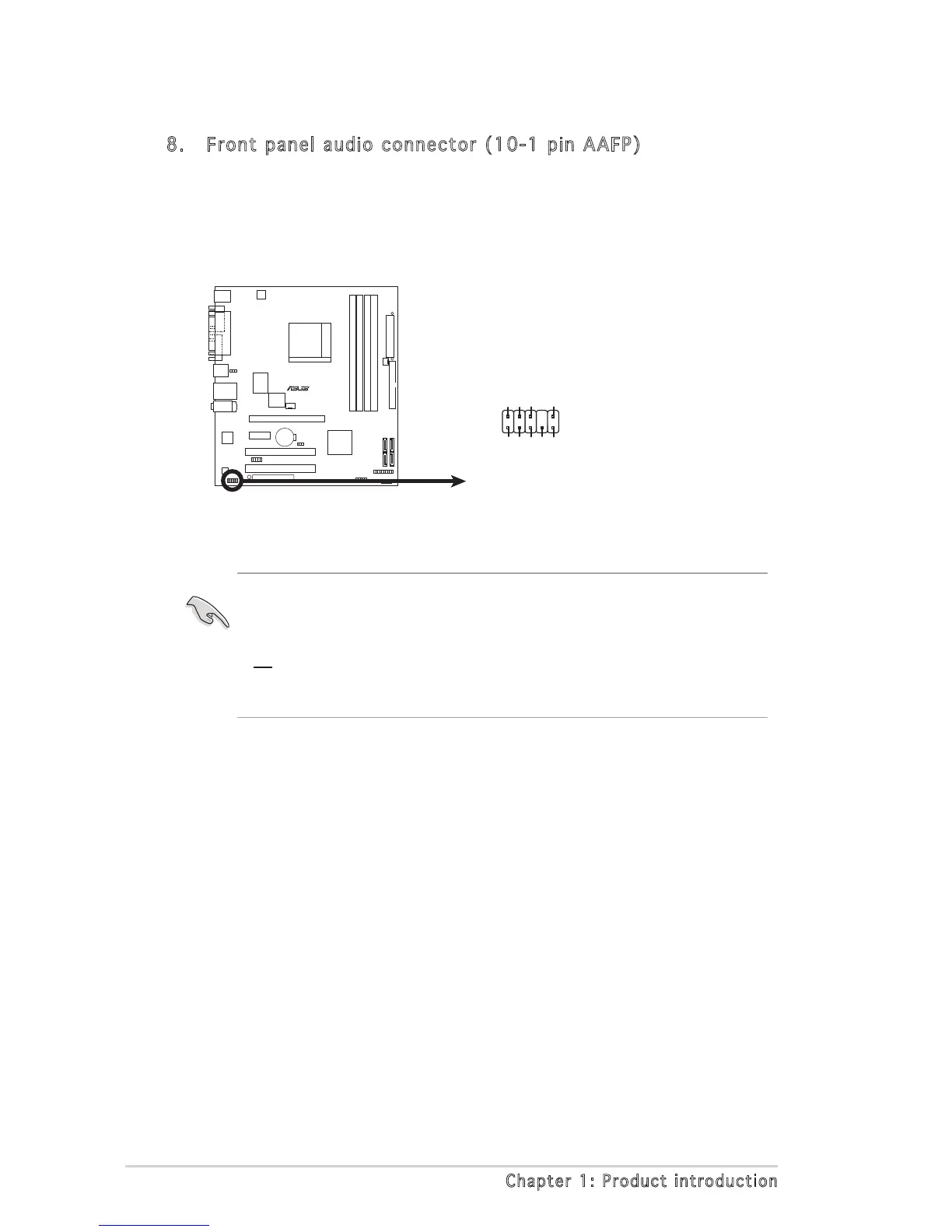

8. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module
that supports either High Denition Audio or AC`97 audio standard.
Connect one end of the front panel audio I/O module cable to this
connector.
• We recommend that you connect a high-denition front panel audio
module to this connector to avail of the motherboard high-denition
audio capability.
• If you want to connect a high-denition front panel audio module to
this connector, make sure that the HD Audio item in the BIOS is set
to [Enabled].
M2N-MX
R
M2N-MX Azalia Analog Front Panel Connector
HP_HD
MIC2_L
HP_R
HP_L
MIC2_JD
Jack_Sense
MIC2_R
PRESENSE# AGND
AAFP

Asus M2N-MX DVI2 Specifications

General

CPU Socket Type	AM2
PCI Express x16	1
PCI Express x1	1
PCI Slots	2
Audio Chipset	Realtek ALC662
Audio Channels	6
Max. LAN Speed	10/100 Mbps
Form Factor	Micro ATX
Memory Slots	2
Memory Standard	DDR2
SATA	4
IDE	1
LAN Chipset	Realtek RTL8201CL
Video Ports	DVI, VGA
