ASUS M2N-MX 1-25
Never connect a 1394 cable to the USB connectors. Doing so will
damage the motherboard!

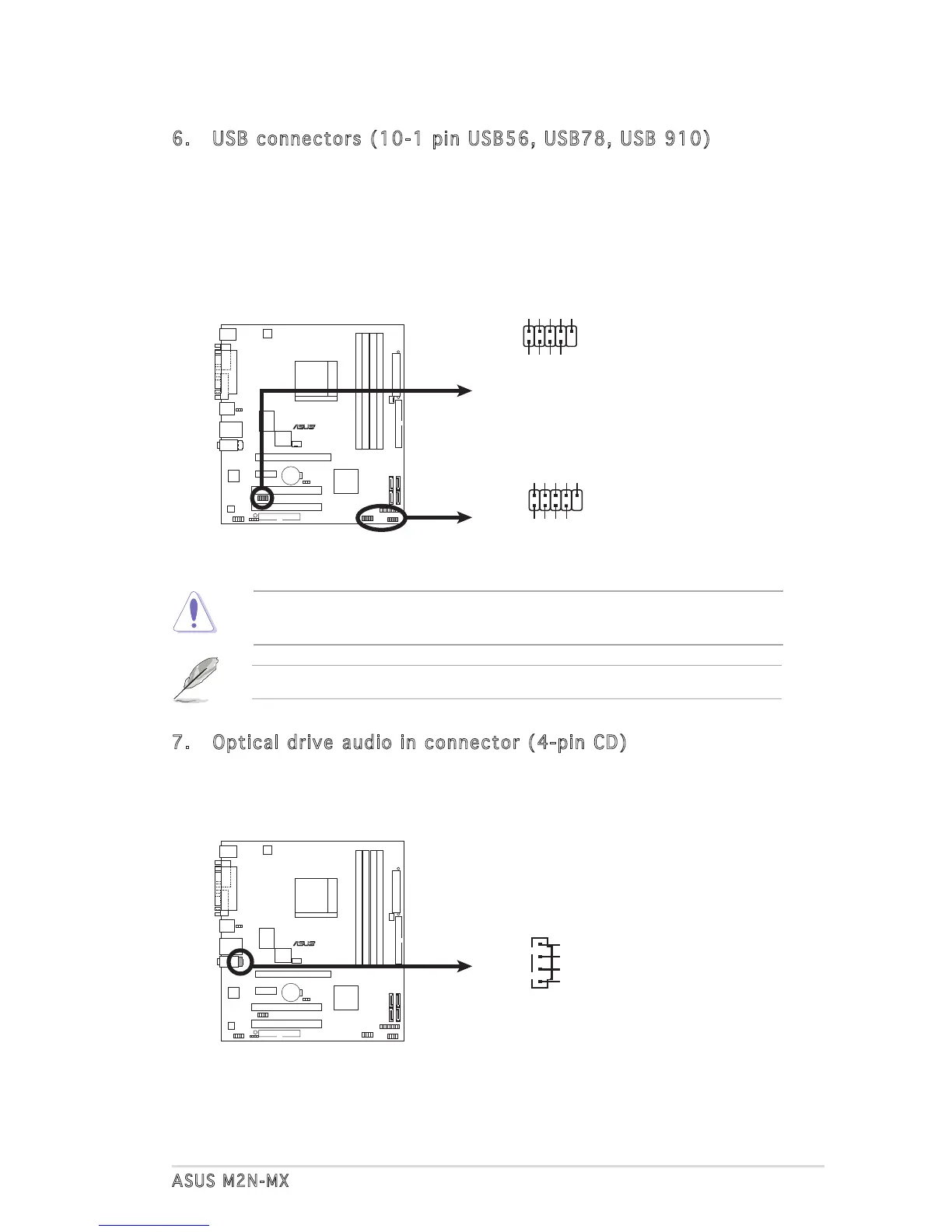

6. USB connectors (10-1 pin USB56, USB78, USB 910)
These connectors are for USB 2.0 ports. Connect the USB module
cable to any of these connectors, then install the module to a slot
opening at the back of the system chassis. These USB connectors
comply with USB 2.0 specication that supports up to 480 Mbps
connection speed.
7. Optical drive audio in connector (4-pin CD)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card.
The USB 2.0 module is purchased separately.
M2N-MX
R
M2N-MX USB 2.0 Connectors
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
1
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
1
USB910
USB+5V USB_P10- USB_P10+ GND NC
USB+5V
USB_P9-
USB_P9+
GND
1
M2N-MX
R
M2N-MX Internal Audio Connector
CD
(black)
Right Audio Channel
Left Audio Channel
Ground
Ground

Asus M2N-MX DVI2 Specifications

General

CPU Socket Type	AM2
PCI Express x16	1
PCI Express x1	1
PCI Slots	2
Audio Chipset	Realtek ALC662
Audio Channels	6
Max. LAN Speed	10/100 Mbps
Form Factor	Micro ATX
Memory Slots	2
Memory Standard	DDR2
SATA	4
IDE	1
LAN Chipset	Realtek RTL8201CL
Video Ports	DVI, VGA
