2.8.2 Internal connectors
1. Intel
®

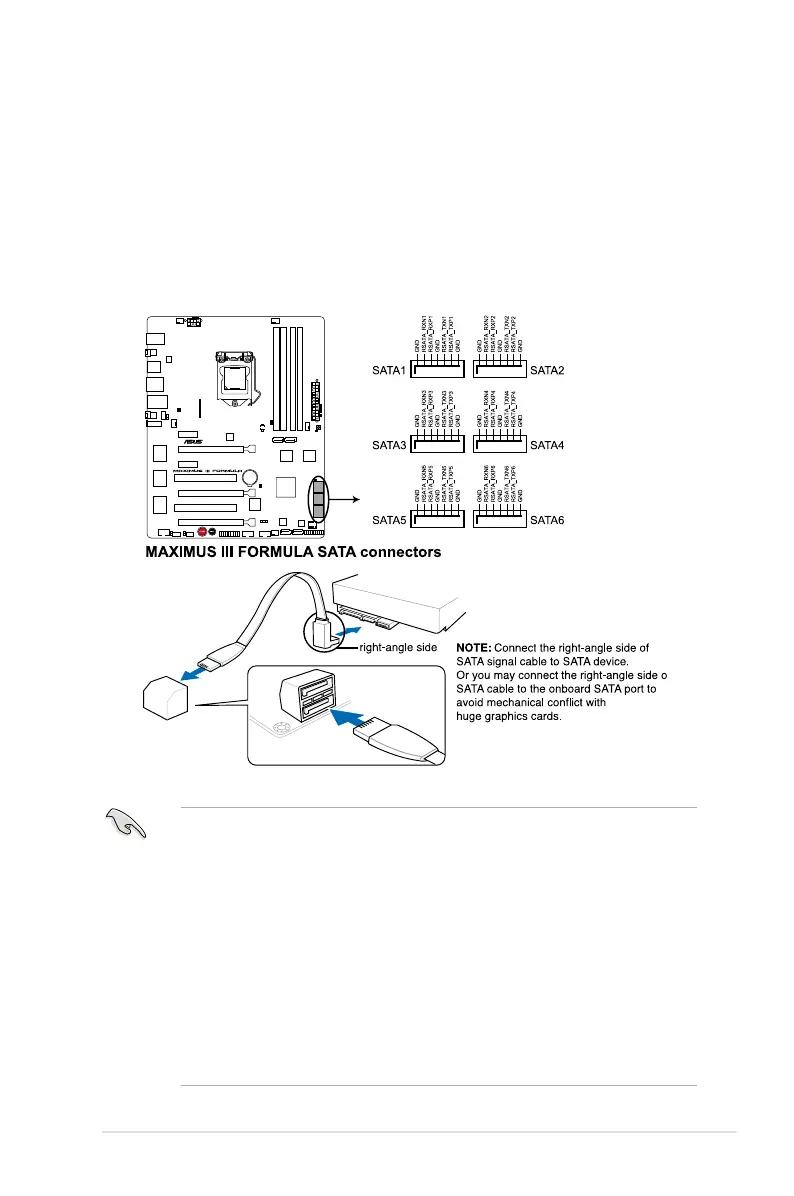

P55 Serial ATA connectors (7-pin SATA 1-6)
These connectors are for the Serial ATA signal cables for Serial ATA hard disk
drives and optical disc drives.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and
®
Matrix Storage Technology through the onboard
Intel
®
P55 chipset.
•
These connectors are set to Standard IDE mode by default. In Standard
IDE mode, you can connect Serial ATA boot/data hard disk drives to these
connectors. If you intend to create a Serial ATA RAID set using these
connectors, set the item in the BIOS to [RAID]. See
section for details.
• Before creating a RAID set, refer to section or the
manual bundled in the motherboard support DVD.
•
You must install Windows
®
XP Service Pack 2 or later versions before using
Serial ATA hard disk drives. The Serial ATA RAID feature is available only if
you are using Windows
®
XP SP2 or later versions.
•
When using hot-plug and NCQ, set the in the BIOS to
[AHCI]. See section for details.
ROG Maximus III Formula 2-31
