Asus P5GV-MX User Manual

1-8 Chapter 1: Product introduction

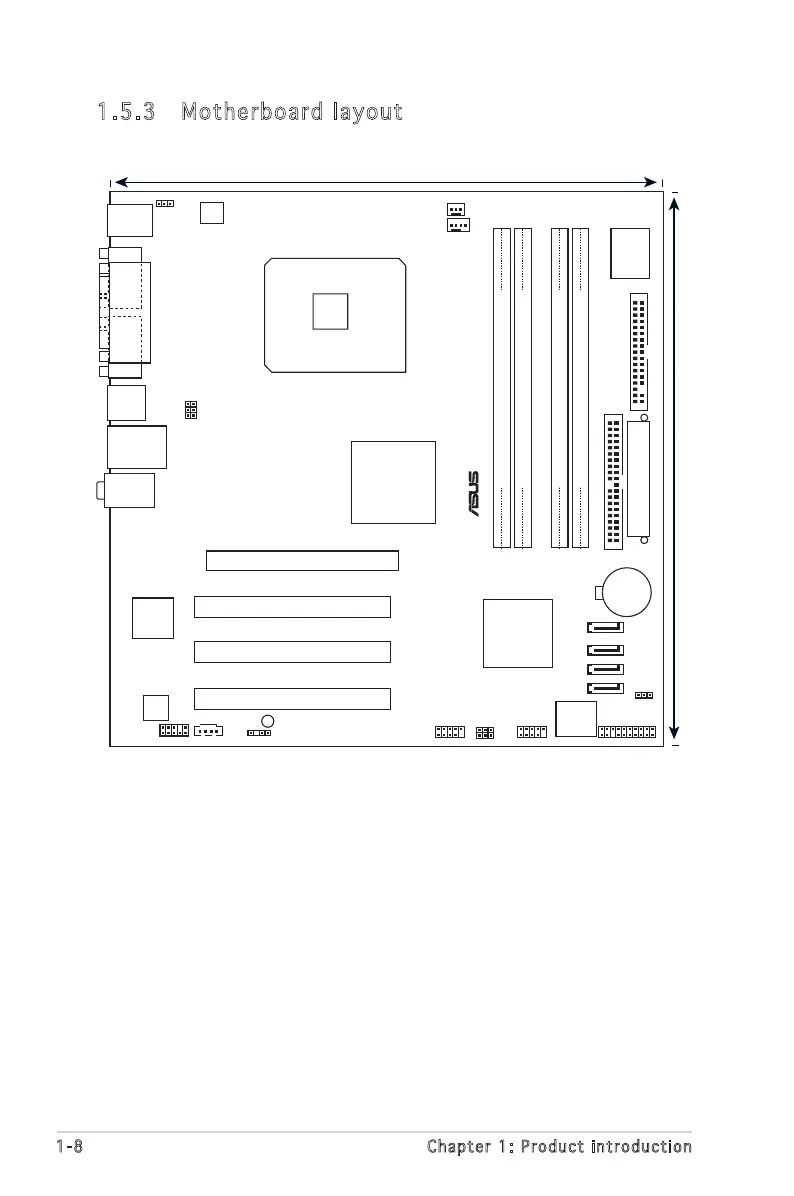

1.5.3 Motherboard layout
P5GV-MX
CR2032 3V
Lithium Cell
CMOS Power
CD
Super
I/O
4Mb
BIOS
ATX12V
FLOPPY
AAFP
DDR DIMM_A1 (64 bit,184-pin module)
SB_PWR
USBPW34 USBPW12
USB78
USB56
USBPW78
USBPW56
CLRTC
SATA1
PCI1
Intel
®
915GV
MCH
Intel
ICH6
DDR DIMM_A2 (64 bit,184-pin module)
DDR DIMM_B1 (64 bit,184-pin module)
DDR DIMM_B2 (64 bit,184-pin module)
CHA_FAN
CPU_FAN
PRI_IDE
AD1986A
EATXPWR
SATA3
SATA2
SATA4
RTL8100C
PCIEX16(x4 mode)
®
PCI2
PCI3
LGA775
Below:
Center/Subwoofer
Center
:
Side Speaker Out
Top:Rear Speaker Out
PS/2KBMS
T: Mouse
B: K
eyboard
F_USB12
LAN_USB34
COM1
PARALLEL PORT
VGA
PANEL
SPDIF_OUT
KBPWR
24.5cm(9.6in)
24.5cm(9.6in)

Asus P5GV-MX Specifications

General

Networking features	Realtek RTL8100C PCI 10/100M LAN
Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 connectors	2
S/PDIF out connector	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, SM Bus
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II Anti-Virus Software ASUS LiveUpdate
BIOS memory size	32 Mbit

Weight and Dimensions

Width	245 mm
