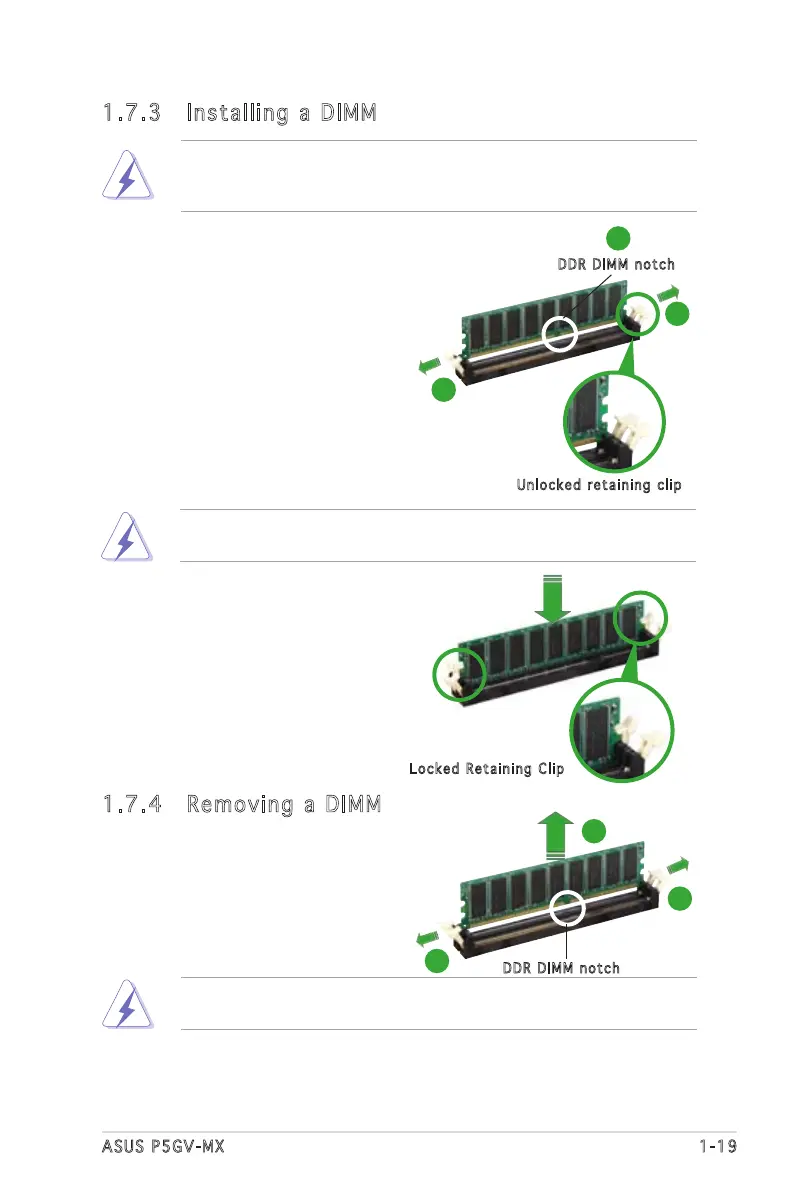

1.7.4 Removing a DIMM
Follow these steps to remove a DIMM.
1. Simultaneously press the
retaining clips outward to unlock
the DIMM.
2. Remove the DIMM from the socket.
1.7.3 Installing a DIMM
3. Firmly insert the DIMM into the
socket until the retaining clips
snap back in place and the DIMM
is properly seated.
1. Unlock a DIMM socket by
pressing the retaining clips
outward.
2. Align a DIMM on the socket
such that the notch on the
DIMM matches the break on the
socket.
Locked Retaining Clip
Make sure to unplug the power supply before adding or removing DIMMs
or other system components. Failure to do so may cause severe damage
to both the motherboard and the components.
A DDR DIMM is keyed with a notch so that it fits in only one direction. DO
NOT force a DIMM into a socket to avoid damaging the DIMM.
Unlocked retaining clip
DDR DIMM notch
1
2
1
Support the DIMM lightly with your fingers when pressing the retaining
clips. The DIMM might get damaged when it flips out with extra force.
DDR DIMM notch
1
2
1

Asus P5GV-MX Specifications

General

Networking features	Realtek RTL8100C PCI 10/100M LAN
Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 connectors	2
S/PDIF out connector	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, SM Bus
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II Anti-Virus Software ASUS LiveUpdate
BIOS memory size	32 Mbit

Weight and Dimensions

Width	245 mm
