Asus P5GV-MX User Manual

ASUS P5GV-MX 1-9

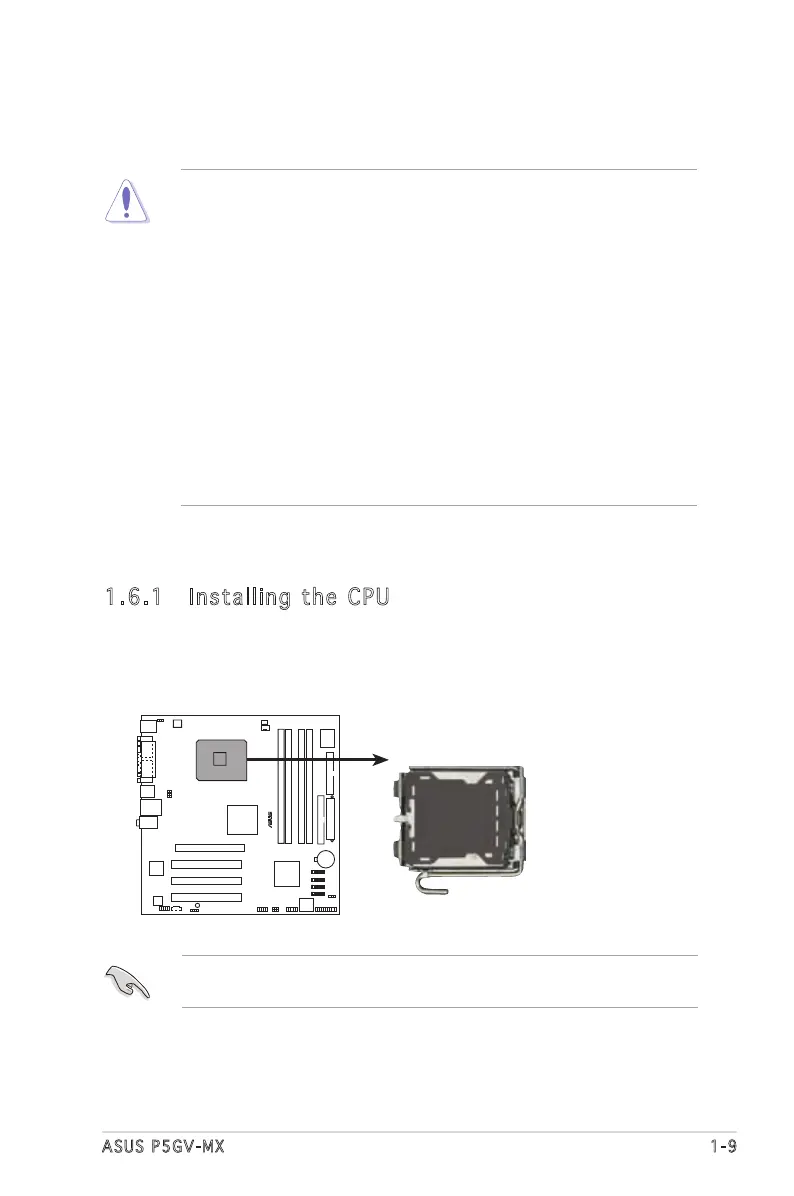

1.6.1 Installing the CPU
To install a CPU:
1. Locate the CPU socket on the motherboard.
1.6 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA775 socket designed for
the Intel
®
Pentium
®
4 processor in the 775-land package.
• Your boxed Intel
®
Pentium
®
4 LGA775 processor package should
come with installation instructions for the CPU, fan and heatsink
assembly. If the instructions in this section do not match the CPU
documentation, follow the latter.
• Upon purchase of the motherboard, make sure that the PnP cap is
on the socket and the socket pins are not bent. Contact your retailer
immediately if the PnP cap is missing, or if you see any damage to
the PnP cap/socket pins/motherboard components. ASUS shoulders
the repair cost only if the damage is shipment/transit-related.
• Keep the cap after installing the motherboard. ASUS will process
Return Merchandise Authorization (RMA) requests only if the
motherboard comes with the cap on the LGA775 socket.
• The product warranty does not cover damage to the socket pins
resulting from incorrect CPU installation/removal, or misplacement/
loss/incorrect removal of the PnP cap.
Before installing the CPU, make sure that the socket box is facing
towards you and the load lever is on your left.
P5GV-MX
®
P5GV-MX CPU Socket 775

Asus P5GV-MX Specifications

General

Networking features	Realtek RTL8100C PCI 10/100M LAN
Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 connectors	2
S/PDIF out connector	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, SM Bus
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II Anti-Virus Software ASUS LiveUpdate
BIOS memory size	32 Mbit

Weight and Dimensions

Width	245 mm
