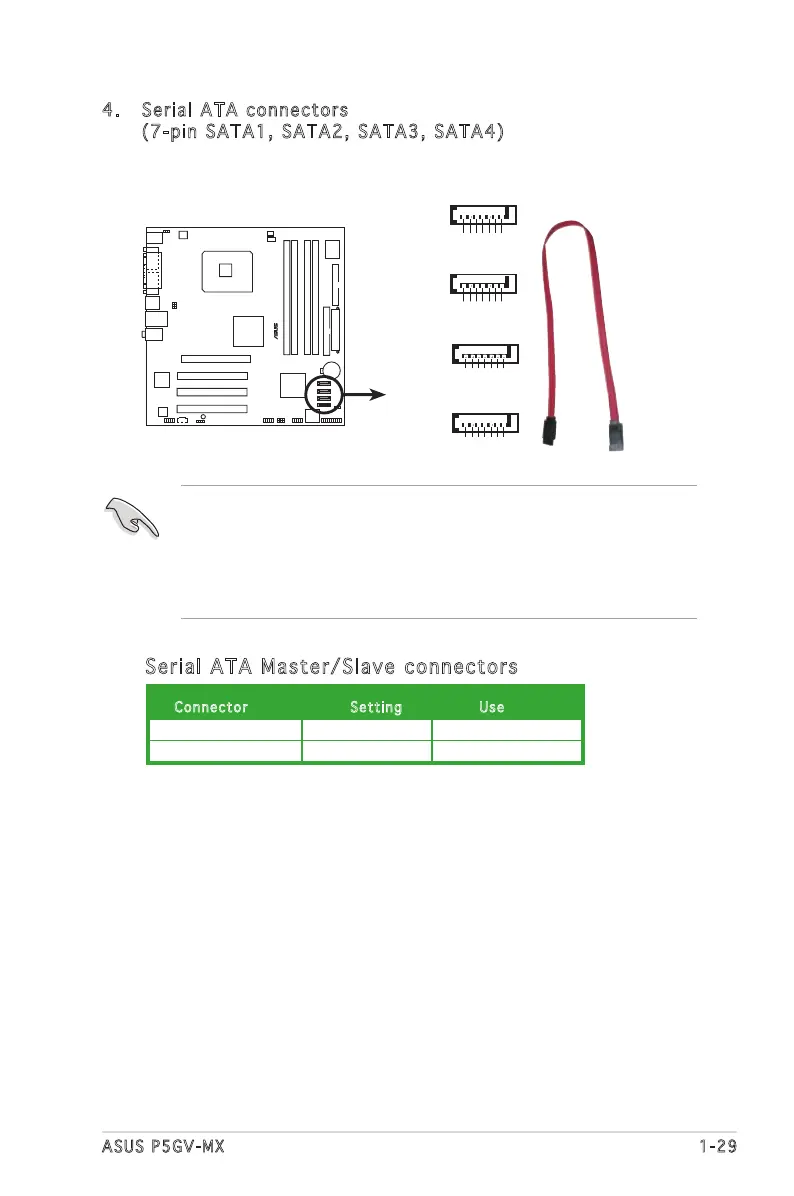

4. Serial ATA connectors
(7-pin SATA1, SATA2, SATA3, SATA4)
These connectors are for the Serial ATA signal cables for Serial ATA
hard disk drives.
Important notes on Serial ATA
• Install the Windows
®
2000 Service Pack 4 or the Windows
®
XP
Service Pack1 before using Serial ATA.
• Plug your Serial ATA boot disk on the master port (SATA1 and
SATA2) to support S3 function. Refer to the table below for details.
Serial ATA Master/Slave connectors
Connector Set tin g Use
SATA1, SATA2 Master Boot disk
SATA3, SATA4 Slave Data disk
P5GV-MX
®
P5GV-MX SATA Connectors
SATA1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA
_RXP1
R
SATA_RXN1
GND
SATA4
GND
RSATA_TXP4
RSATA
_TXN4
GND
RSATA
_RXP4
RSATA
_RXN4
GND
SATA3
GND
RSATA_TXP3
RSATA
_TXN3
GND
RSATA
_RXP3
RSATA
_RXN3
GND
SATA2
GND
RSATA_TXP2
RSATA
_TXN2
GND
RSATA
_RXP2
RSATA
_RXN2
GND

Asus P5GV-MX Specifications

General

Networking features	Realtek RTL8100C PCI 10/100M LAN
Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 connectors	2
S/PDIF out connector	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, SM Bus
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II Anti-Virus Software ASUS LiveUpdate
BIOS memory size	32 Mbit

Weight and Dimensions

Width	245 mm
