1-26 Chapter 1: Product introduction
Audio 2, 4, or 6-channel configuration
Light Blue Line In Surround Speaker Out Surround Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Center/LFE Out
Port Headset 4 -ch ann el 6-channel
2-channel
Refer to the audio configuration table for the function of the audio ports
in 2, 4, or 6-channel configuration.

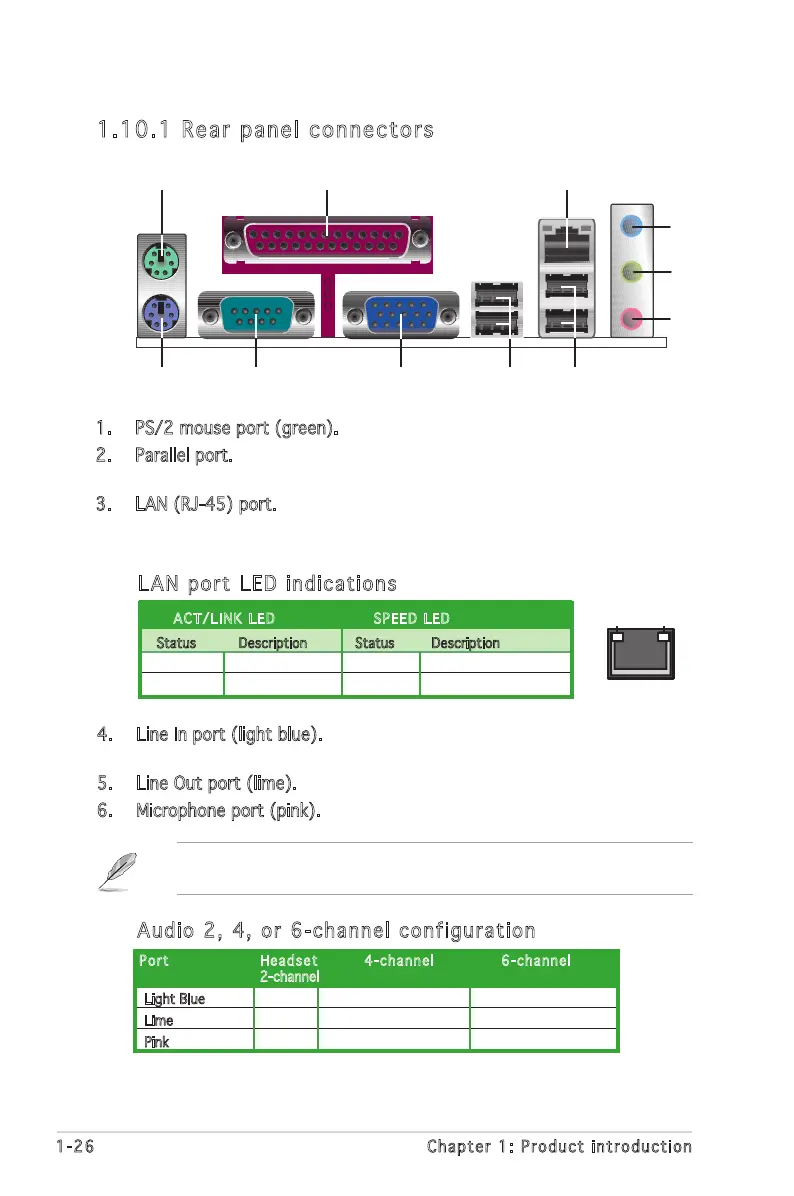

1.10 Connectors
1.10.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or
other devices.
3. LAN (RJ-45) port. This port allows 10/100Mbps connection to a Local
Area Network (LAN) through a network hub. Refer to the table below
for the LAN port LED indications.
4. Line In port (light blue). This port connects a tape, CD, DVD player, or
other audio sources.
5. Line Out port (lime). This port connects a headphone or a speaker.
6. Microphone port (pink). This port connects a microphone.
SPEED
LED
ACT/LINK
LED
LAN port
LAN port LED indications
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked GREEN 100 Mbps connection
1
11
7
2 3
10
8
9
4
5
6

Asus P5GV-MX Specifications

General

Networking features	Realtek RTL8100C PCI 10/100M LAN
Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 connectors	2
S/PDIF out connector	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Manageability features	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, SM Bus
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II Anti-Virus Software ASUS LiveUpdate
BIOS memory size	32 Mbit

Weight and Dimensions

Width	245 mm
