ASUS P5KPL SE 1-7

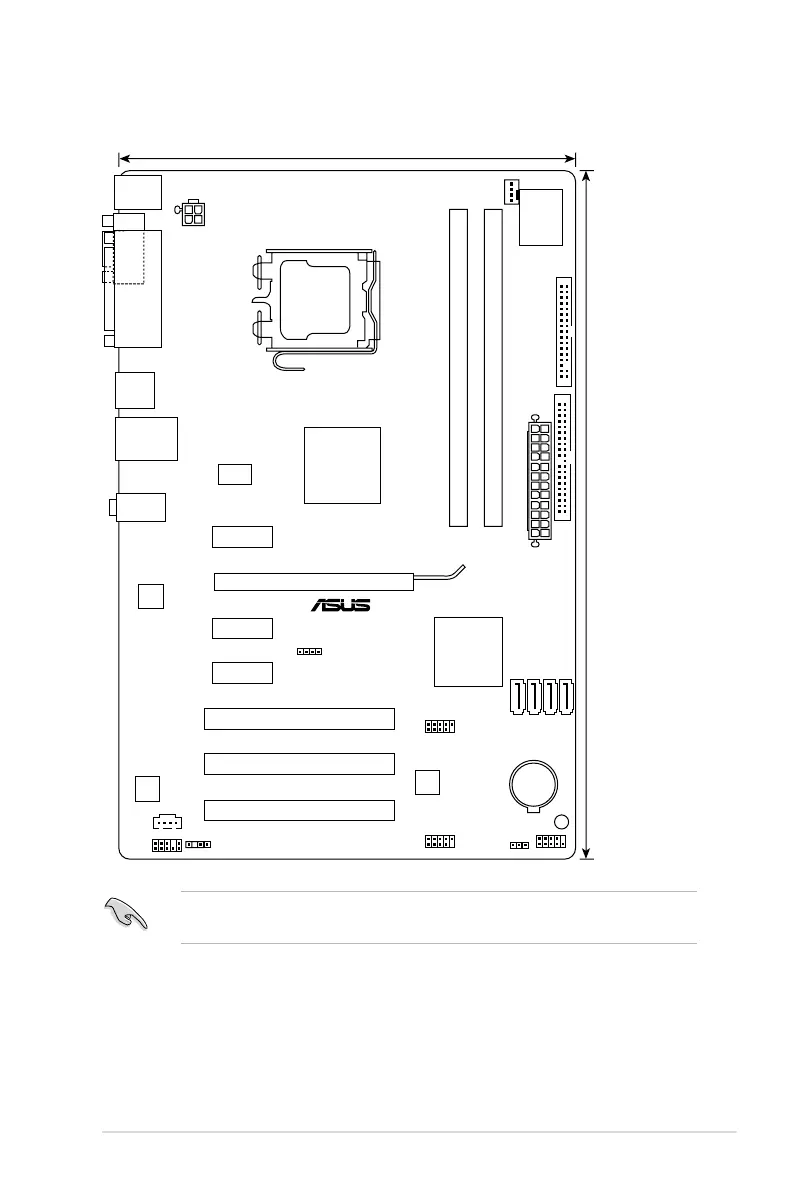

1.5.3 Motherboard layout
Refer to section 1.10 Connectors for more information about rear panel
connectors and internal connectors.
P5KPL SE
PCIEX16
PCIEX1_1
PCIEX1_2
PCIEX1_3
PCI2
PCI3
PCI1
PRI_IDE
FLOPPY
USB78
USB56
SPDIF_OUT
AAFP
ICS
9LPRS954A3GLF
CD
ATX12V
EATXPWR
CPU_FAN
Intel
®
G31 B0
Lithium Cell
CMOS Power
Super
I/O
ALC662
RTL
8111C
8Mb
BIOS
20.3cm(8.0in)
30.5cm(12in)
LGA775
Intel
®
ICH7
DDR2 DIMM_A1 (64bit, 240-pin module) DDR2 DIMM_B1 (64bit, 240-pin module)
SATA1 SATA3 SATA2 SATA4
CLRTC
SPEAKER
AUDIO
KBMS
LPT
COM1
LAN1_USB12
USB34
SB_PWR
F_PANEL

Asus P5KPL SE Specifications

General

Form Factor	ATX
Chipset	Intel G31
Socket	LGA 775
FSB	1600/1333/1066/800 MHz
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 3 x PCI
Supported CPU	Intel Core 2 Quad / Core 2 Duo / Pentium / Celeron
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 (4 on back panel, 4 via internal headers)
Audio	Realtek ALC662, 6-Channel High Definition Audio
LAN	Realtek Gigabit LAN
Back Panel Ports	4 x USB 2.0, 1 x LAN (RJ45)
