Asus P5KPL SE User Manual

ASUS P5KPL SE 1-13

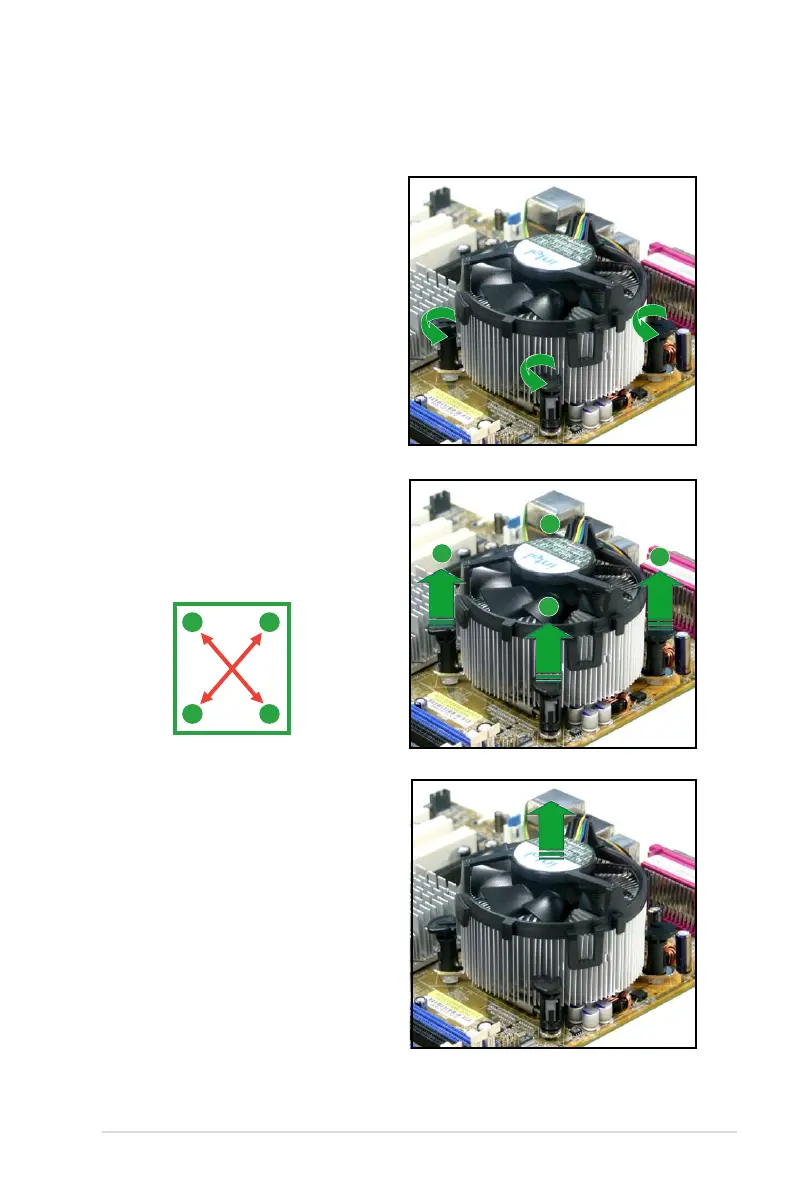

1.6.3 Uninstalling the CPU heatsink and fan
To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan cable from
the connector on the motherboard.
2. Rotate each fastener
counterclockwise.
3. Pull up two fasteners at a time in
a diagonal sequence to disengage
the heatsink and fan assembly
from the motherboard.
A
A
B
B
B
B
A
A
4. Remove the heatsink and fan
assembly from the motherboard.

Asus P5KPL SE Specifications

General

Form Factor	ATX
Chipset	Intel G31
Socket	LGA 775
FSB	1600/1333/1066/800 MHz
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 3 x PCI
Supported CPU	Intel Core 2 Quad / Core 2 Duo / Pentium / Celeron
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 (4 on back panel, 4 via internal headers)
Audio	Realtek ALC662, 6-Channel High Definition Audio
LAN	Realtek Gigabit LAN
Back Panel Ports	4 x USB 2.0, 1 x LAN (RJ45)
