1.7 System memory
1.7.1 Overview
The motherboard comes with two Double Data Rate 2 (DDR2) Dual Inline Memory
Modules (DIMM) sockets.
A DDR2 module has the same physical dimensions as a DDR DIMM but has a
240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched
differently to prevent installation on a DDR DIMM socket.

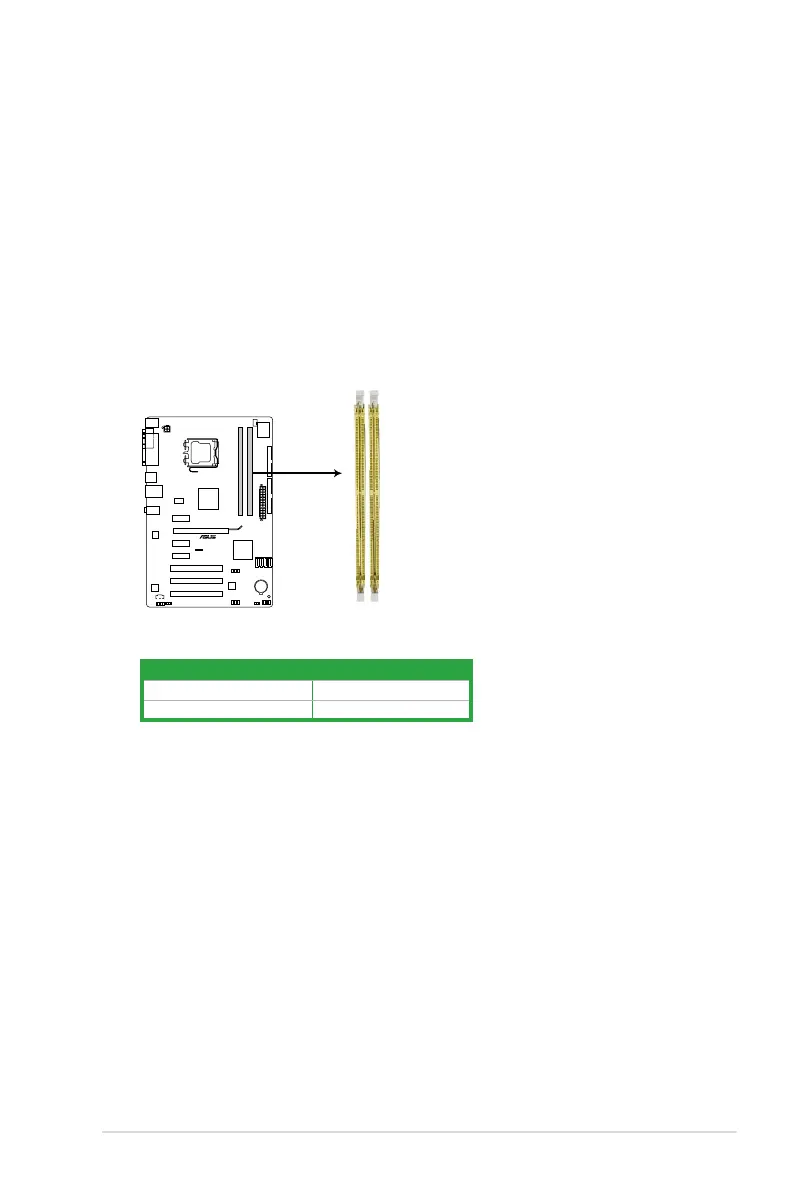

The gure illustrates the location of the DDR2 DIMM sockets:
P5KPL SE
P5KPL SE 240-pin DDR2 DIMM sockets
DIMM_A1 DIMM_B1
Channel Socket
Channel A DIMM_A1
Channel B DIMM_B1

Asus P5KPL SE Specifications

General

Form Factor	ATX
Chipset	Intel G31
Socket	LGA 775
FSB	1600/1333/1066/800 MHz
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 3 x PCI
Supported CPU	Intel Core 2 Quad / Core 2 Duo / Pentium / Celeron
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 (4 on back panel, 4 via internal headers)
Audio	Realtek ALC662, 6-Channel High Definition Audio
LAN	Realtek Gigabit LAN
Back Panel Ports	4 x USB 2.0, 1 x LAN (RJ45)
