ASUS P5KPL SE 1-25
1.10 Connectors

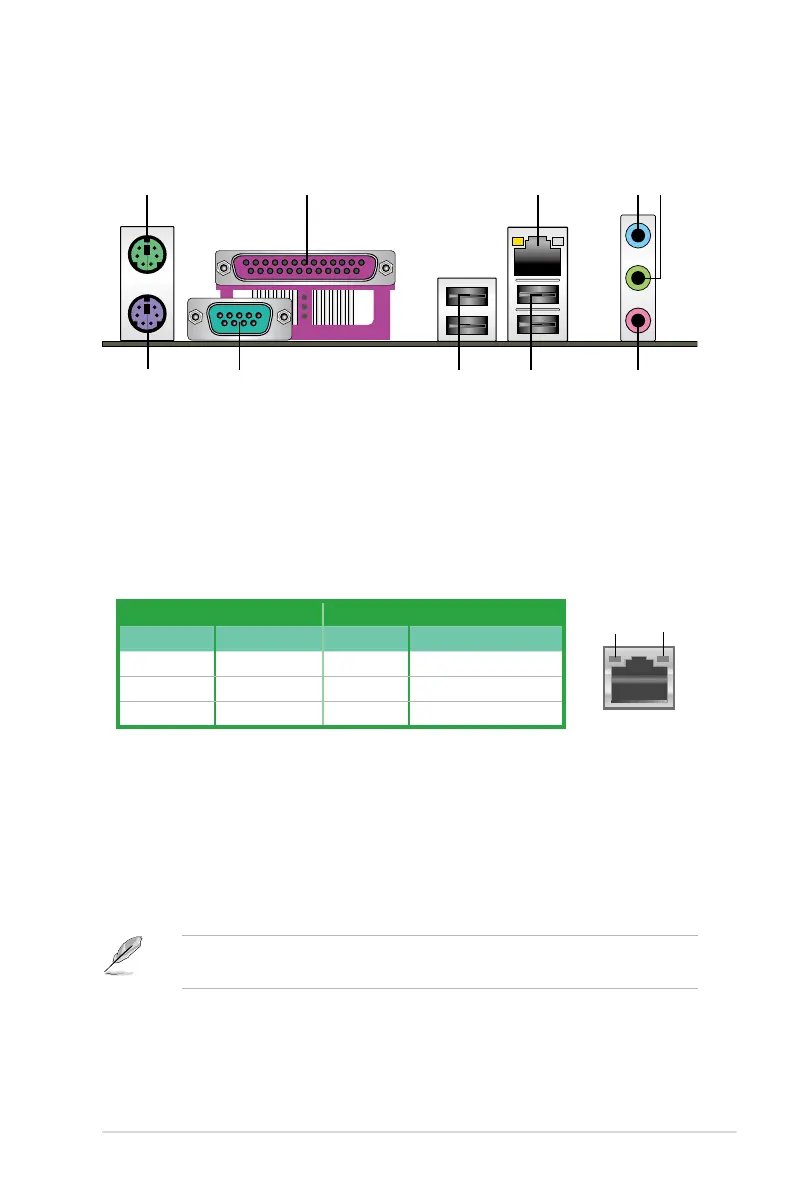

1.10.1 Rear panel connectors
Refer to the audio conguration table on the next page for the function of the
audio ports in 2, 4, or 6-channel conguration.
LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2.
Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. LAN (RJ-45) port.
Supported by L1 PCIE Gigabit LAN controller, this port
allows Gigabit connection to a Local Area Network (LAN) through a network
hub. Refer to the table below for the LAN port LED indications.
4. Line In port (light blue).
This port connects the tape, CD, DVD player, or
other audio sources.
5. Line Out port (lime).
This port connects a headphone or a speaker. In
4-channel and 6-channel conguration, the function of this port becomes
Front Speaker Out.
6. Microphone port (pink).
This port connects a microphone. In a 6-channel
conguration, the function of this port becomes Center/Bass.
4 53
68 7
2
9
1
10

Asus P5KPL SE Specifications

General

Form Factor	ATX
Chipset	Intel G31
Socket	LGA 775
FSB	1600/1333/1066/800 MHz
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 3 x PCI
Supported CPU	Intel Core 2 Quad / Core 2 Duo / Pentium / Celeron
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 (4 on back panel, 4 via internal headers)
Audio	Realtek ALC662, 6-Channel High Definition Audio
LAN	Realtek Gigabit LAN
Back Panel Ports	4 x USB 2.0, 1 x LAN (RJ45)
