1-20 Chapter 1: Product introduction

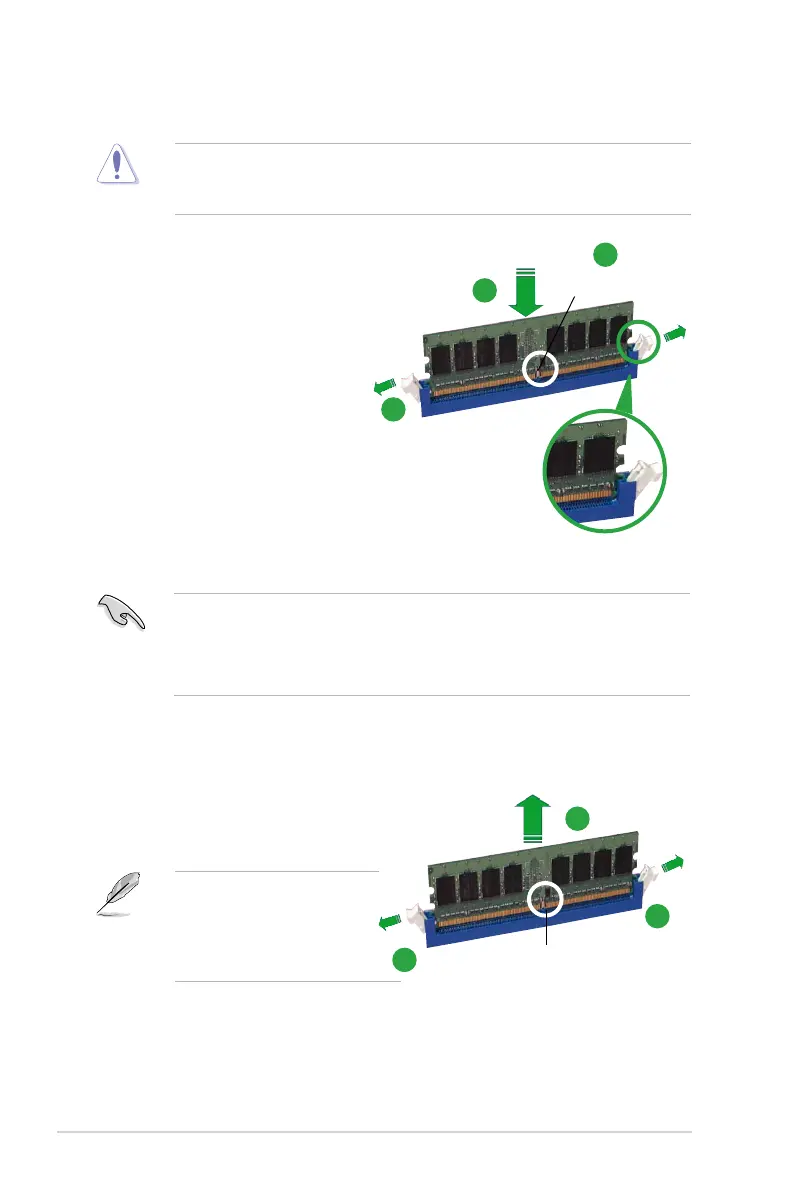

1.7.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other
system components. Failure to do so can cause severe damage to both the
motherboard and the components.
To install a DIMM:
1. Unlock a DIMM socket by
pressing the retaining clips
outward.
2. Align a DIMM on the socket
such that the notch on the
DIMM matches the break on
the socket.
3. Firmly insert the DIMM into
the socket until the retaining
clips snap back in place and
the DIMM is properly seated.
1.7.4 Removing a DIMM
Follow these steps to remove a DIMM.
1. Simultaneously press the retaining
clips outward to unlock the DIMM.
2. Remove the DIMM from the socket.
• A DDR2 DIMM is keyed with a notch so that it ts in only one direction. Do
not force a DIMM into a socket to avoid damaging the DIMM.
• The DDR2 DIMM sockets do not support DDR DIMMs. DO not install DDR
DIMMs to the DDR2 DIMM sockets.
Support the DIMM lightly with
your ngers when pressing
the retaining clips. The DIMM
might get damaged when it
ips out with extra force.
Unlocked retaining clip
DDR2 DIMM notch
1
2
3
DDR2 DIMM notch
1
2
1

Asus P5KPL SE Specifications

General

Form Factor	ATX
Chipset	Intel G31
Socket	LGA 775
FSB	1600/1333/1066/800 MHz
Memory Type	DDR2
Memory Slots	2 x DIMM
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCIe x1, 3 x PCI
Supported CPU	Intel Core 2 Quad / Core 2 Duo / Pentium / Celeron
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 (4 on back panel, 4 via internal headers)
Audio	Realtek ALC662, 6-Channel High Definition Audio
LAN	Realtek Gigabit LAN
Back Panel Ports	4 x USB 2.0, 1 x LAN (RJ45)
