ASUS RS500A-S6/PS4 1-5

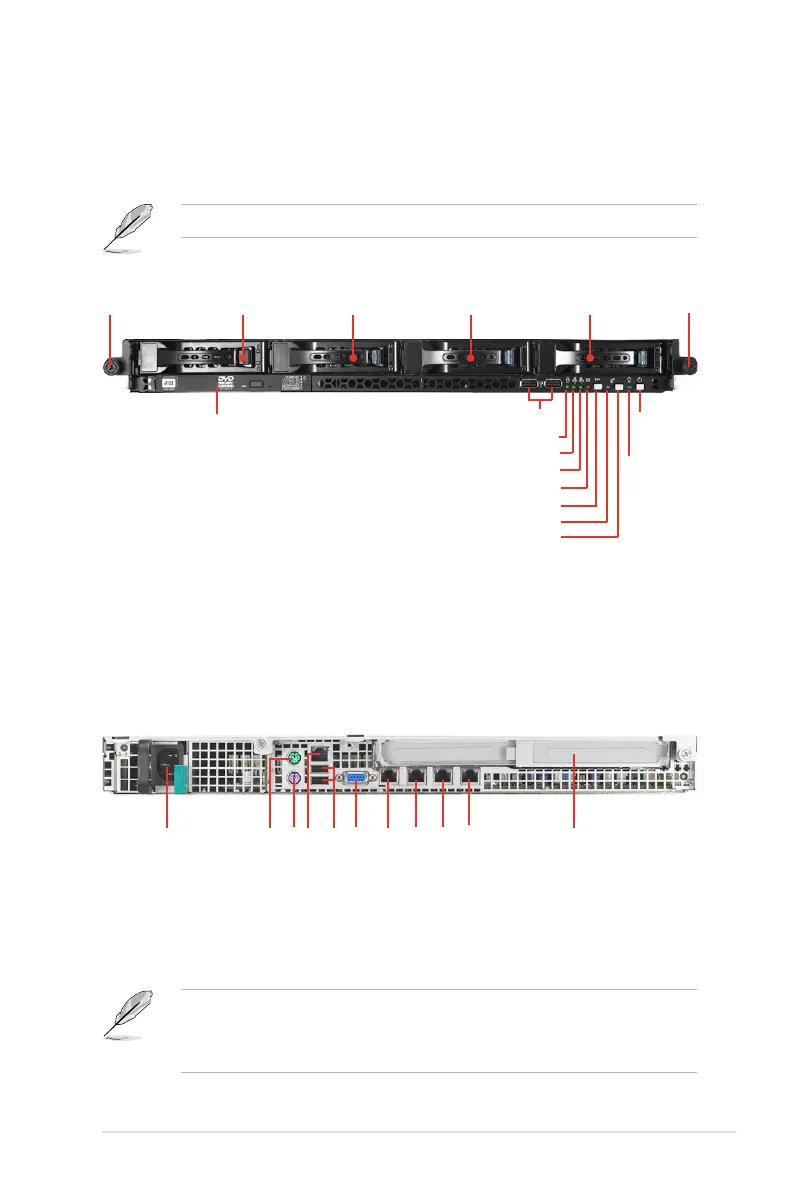

1.4 Front panel features
The barebone server displays a simple yet stylish front panel with easily accessible
features. The power and reset buttons, LED indicators, optical drive, and two USB
ports are located on the front panel.
Refer to section 1.7.1 Front panel LEDs for the LED descriptions.
1.5 Rear panel features
The rear panel includes the expansion slot, system power socket, and rear fans.
The middle part includes the I/O shield with openings for the rear panel connectors
on the motherboard.
• The ports for the PS/2 keyboard, PS/2 mouse, USB, VGA, and Gigabit LAN
do not appear on the rear panel if motherboard is not present.
• *The port is for ASUS ASMB4-iKVM controller card only.
Optical drive
Rack screw
Rack screw
USB ports
LAN2 LED
HDD Access LED
LAN1 LED
Message LED
Power
button
Power
LED
Location switch
Reset button
Location LED
HDD 1 HDD 2 HDD 3 HDD 4
PS/2 keyboard port
USB ports
LAN port 2
VGA port
LAN port 1
Expansion slot
LAN port 3
Power cord connector
PS/2 mouse port
LAN port 5*
LAN port 4
