2-17ASUS RS500A-S6/PS4

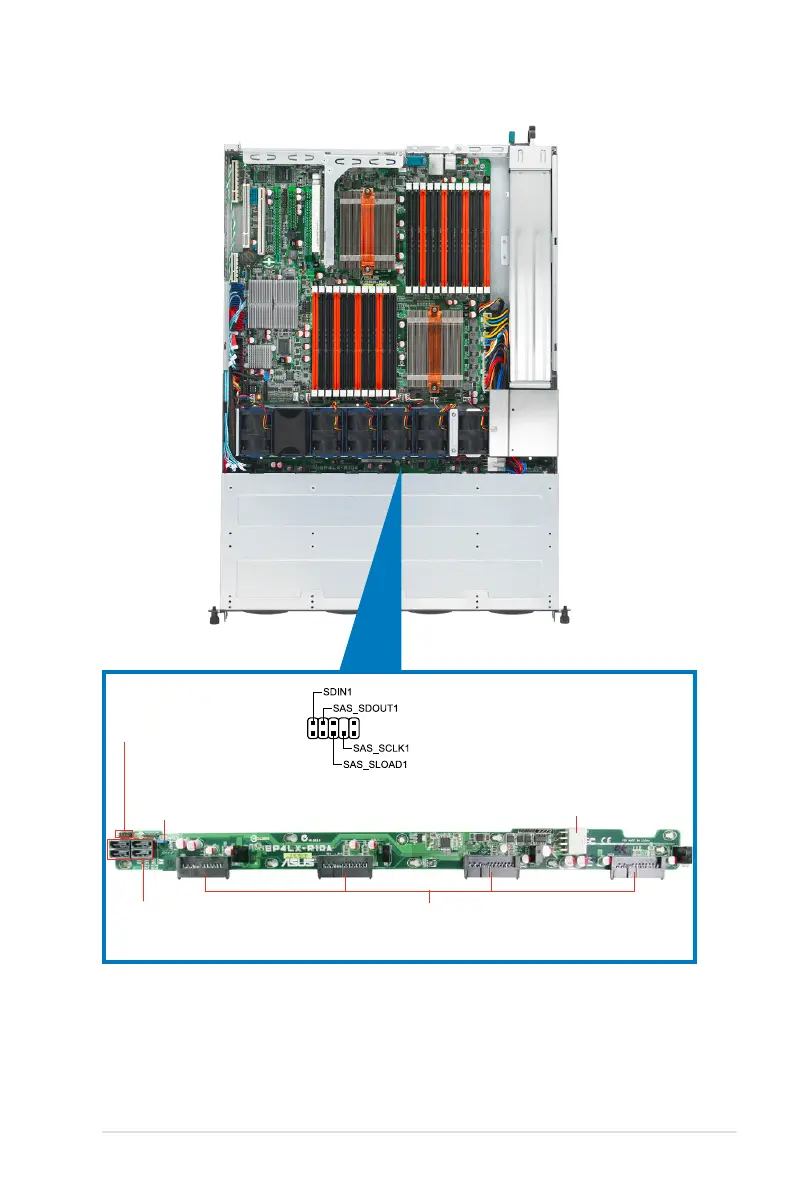

2.7 SATAII/SAS backplane cabling
Connects a
8-pin plug from
power supply
SGPIO_SELjumper:
pins 1-2 (Onboard)
pins 2-3 (Add-on card)
Connects the data cables
connected to the motherboard
Connect the SATAII/SAS HDDs
SAS_SGPIO_CON1 connector*
* For PIKE RAID solution, ensure to connect SAS_SGPIO_CON1 to the SGPIO1 connector on the
motherboard.
