19

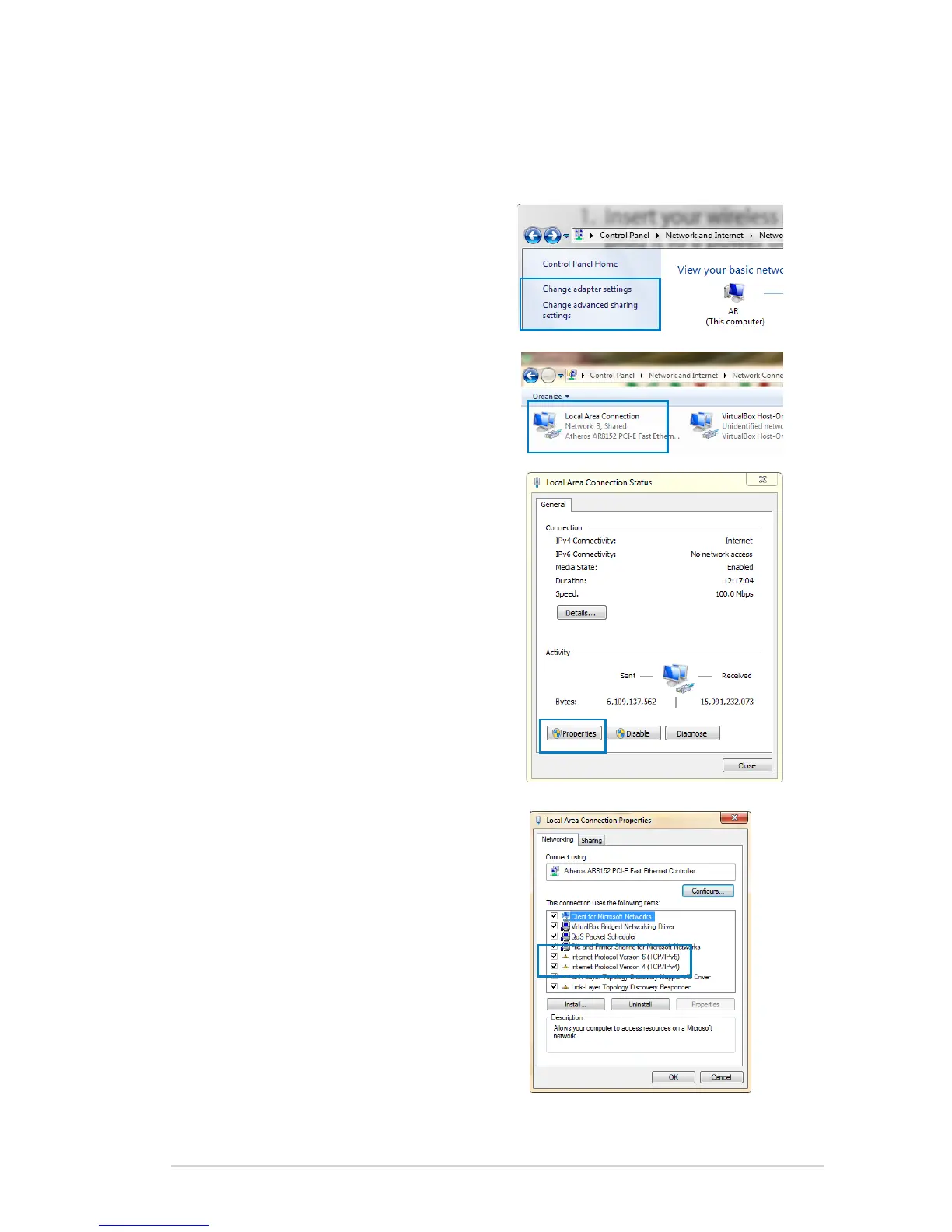

B. Configure TCP/IP settings to automatically obtain an
IP address.
Windows
®
7
1. Click Start > Control Panel
> Network and Internet
> Network and Sharing
Center > Change adapter
settings.
2. On the Network Connections
window, click on Local Area
Connection.
3. On the Local Area Connection
Network Status window, click
Properties.
4. Select Internet Protocol
Version 4 (TCP/IPv4) or
Internet Protocol Version
6 (TCP/IPv6), then click
Properties.

Asus RT-N12 Series Specifications

General

Wireless Standard	IEEE 802.11b/g/n
Frequency Band	2.4 GHz
Data Rate	Up to 300 Mbps
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Operating Temperature	0 °C to 40 °C
Antenna	2 x external antennas
Encryption	64/128-bit WEP, WPA2-PSK, WPA-PSK
Security	Firewall
Firewall	SPI
Storage Temperature	-20°C to 70°C
Storage Humidity	20% to 90% RH
