Atlas Copco G 22 User Manual

2 General description
2.1 Introduction
Introduction
G 15L, G 18 and G 22 are air-cooled, single-stage, oil-injected screw compressors, driven by an
electric motor.
The compressors are enclosed in sound-insulating bodywork.
An easy-to-operate control panel is provided, including the start/stop switch and the emergency
stop button. A cabinet housing the controller, pressure sensor and motor starter is integrated into
the bodywork.
Floor-mounted model
The compressor is installed directly on the floor.
Tank-mounted model
G 15L, G 18 and G 22 tank-mounted units are supplied with an air receiver of 500 l (132 US gal /
110 Imp gal / 17.5 cu.ft).

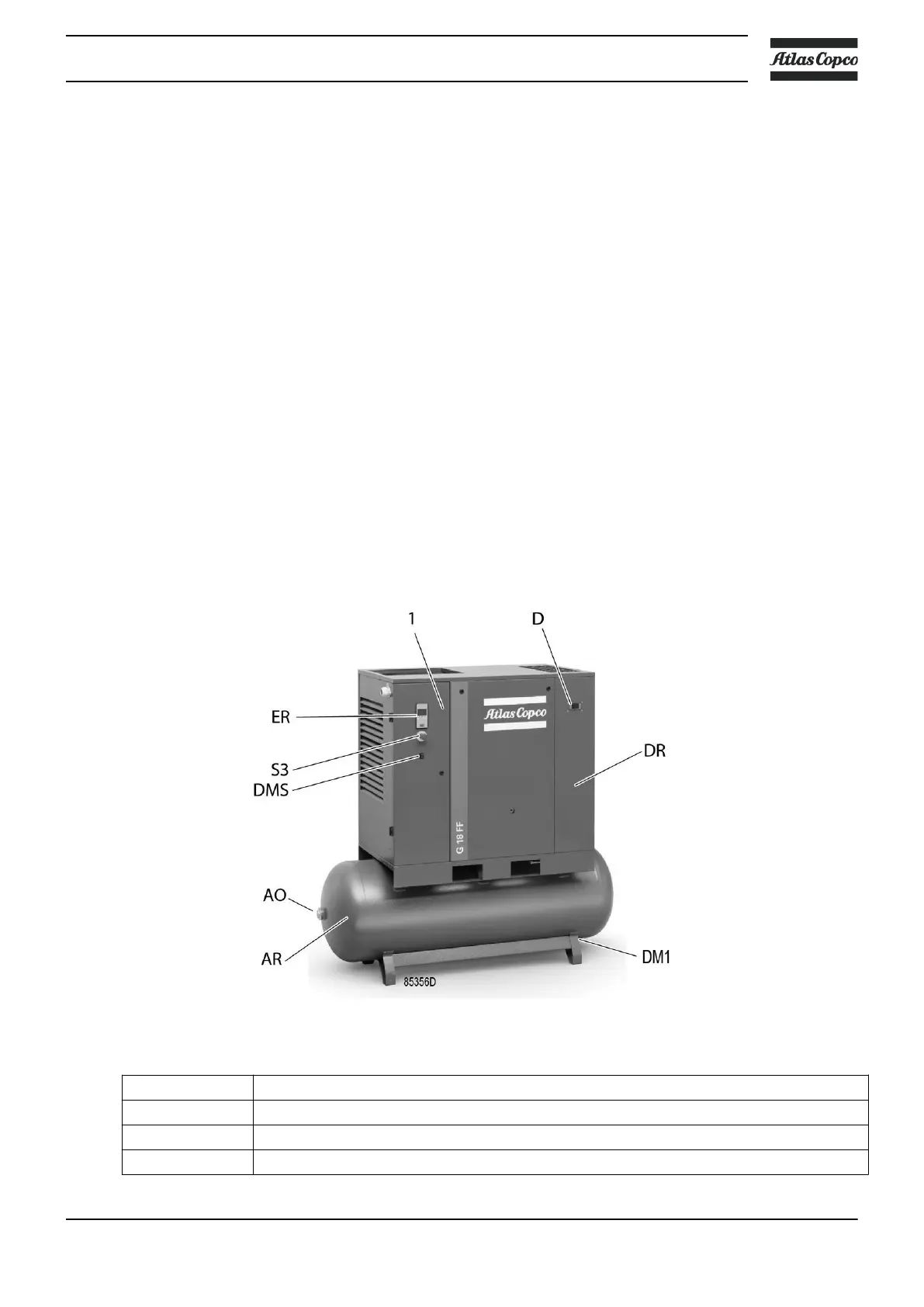

Front view, G 18 Full-Feature tank-mounted
Reference Designation
1 Electric cabinet
ER Elektronikon™ Base Controller
S3 Emergency stop button
Instruction book
2920 7119 21 11
