Keyboard lock
Keep both Up and Down buttons pressed for more than 3 seconds to lock or unlock the
keyboard.
•
The display will show the label <Loc> blinking for 3 seconds if the keyboard has been
locked.
•
The display will show the label <UnLo> blinking for 3 seconds if the keyboard has been
unlocked.

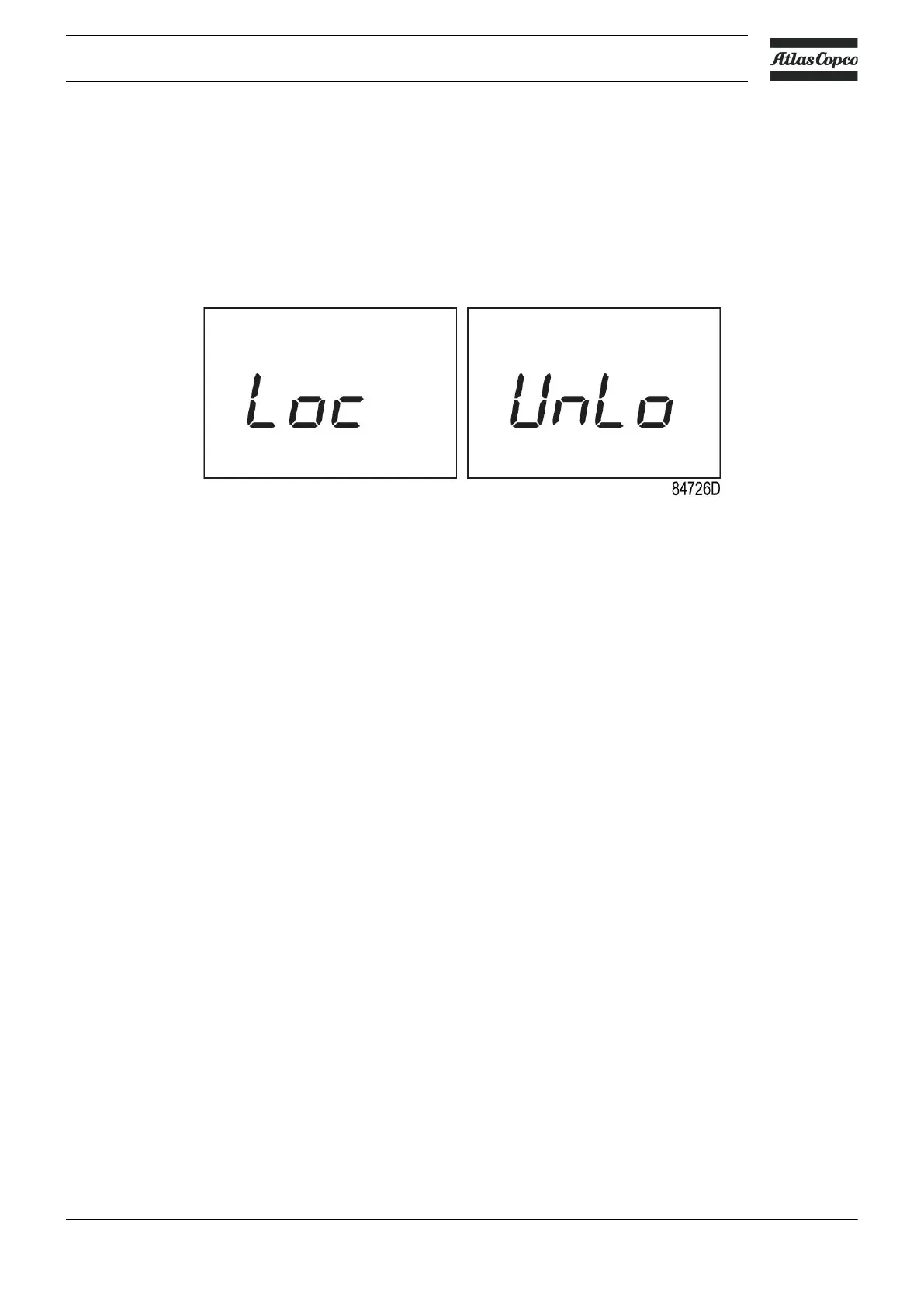

Example Lock/unlock screen.
