Atlas Copco G 22 User Manual

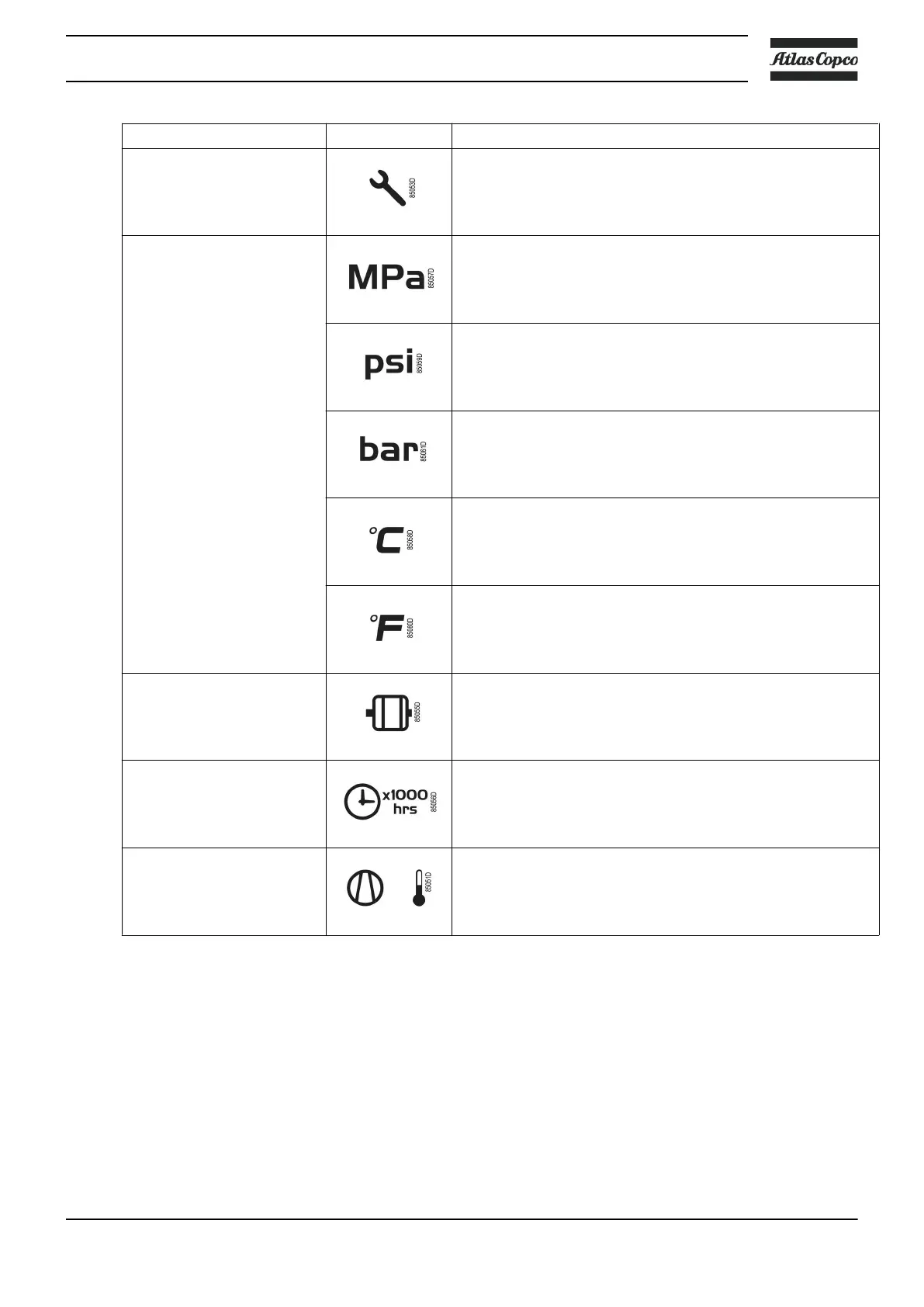

Function Icon Description
Service Service required
Units Pressure unit (Mega Pascal)
Pressure unit (pounds per square inch)
Pressure unit (bar)
Temperature unit (degree Centigrade)
Temperature unit (degree Fahrenheit)
Motor
A time/delay parameter is displayed. NOTE:
• x1000: ON if the displayed value is in thousands of
• hrs: ON if the displayed value is in hours
• s: ON if the displayed value is in seconds
Element outlet temperature
3.4 Main screen
At power on, the first screen is a test screen (Icon, digit and led are on). The next screen is the
Main screen, shown automatically. The Main screen shows:
• The compressor status by means of pictographs;
• The air outlet pressure;
