This is the main menu structure. The structure can be different depending on the configuration of
the unit.
Select or modify a setting
Several settings can be modified. The process of selecting or modifying a setting anywhere in the
menu is basically the same.

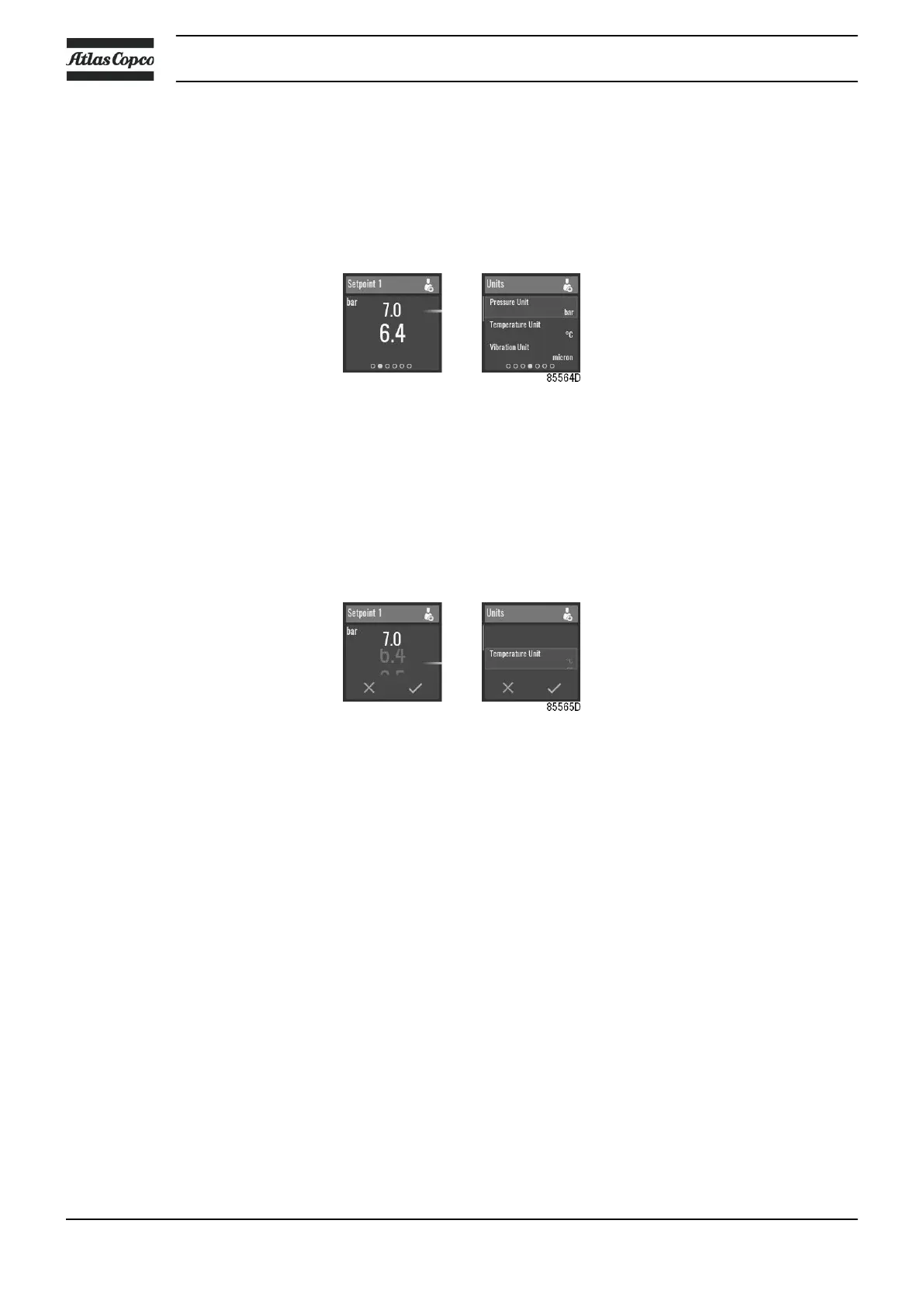

Examples of modifiable settings
Select
In these examples, the upper value is selected.
To select the lower value, swipe down on the left vertical swipebar.
Modify
To modify the selected value, tap the right vertical swipebar.
Swipe up or down on the right vertical swipebar to change the value.
On the horizontal swipebar, tap ‘V’ to confirm or ‘X’ to decline.
3.5 Main screen
Function
The Main screen is the screen that is shown automatically when the voltage is switched on. It is
switched off automatically after a few minutes when there is no touch input.
Swipe left to navigate to the following screens:
• Predefined IO or counter data (optional)
• Setpoint used (optional)
• Manual unload (optional)
• Status
