Atlas Copco GA 11+ User Manual

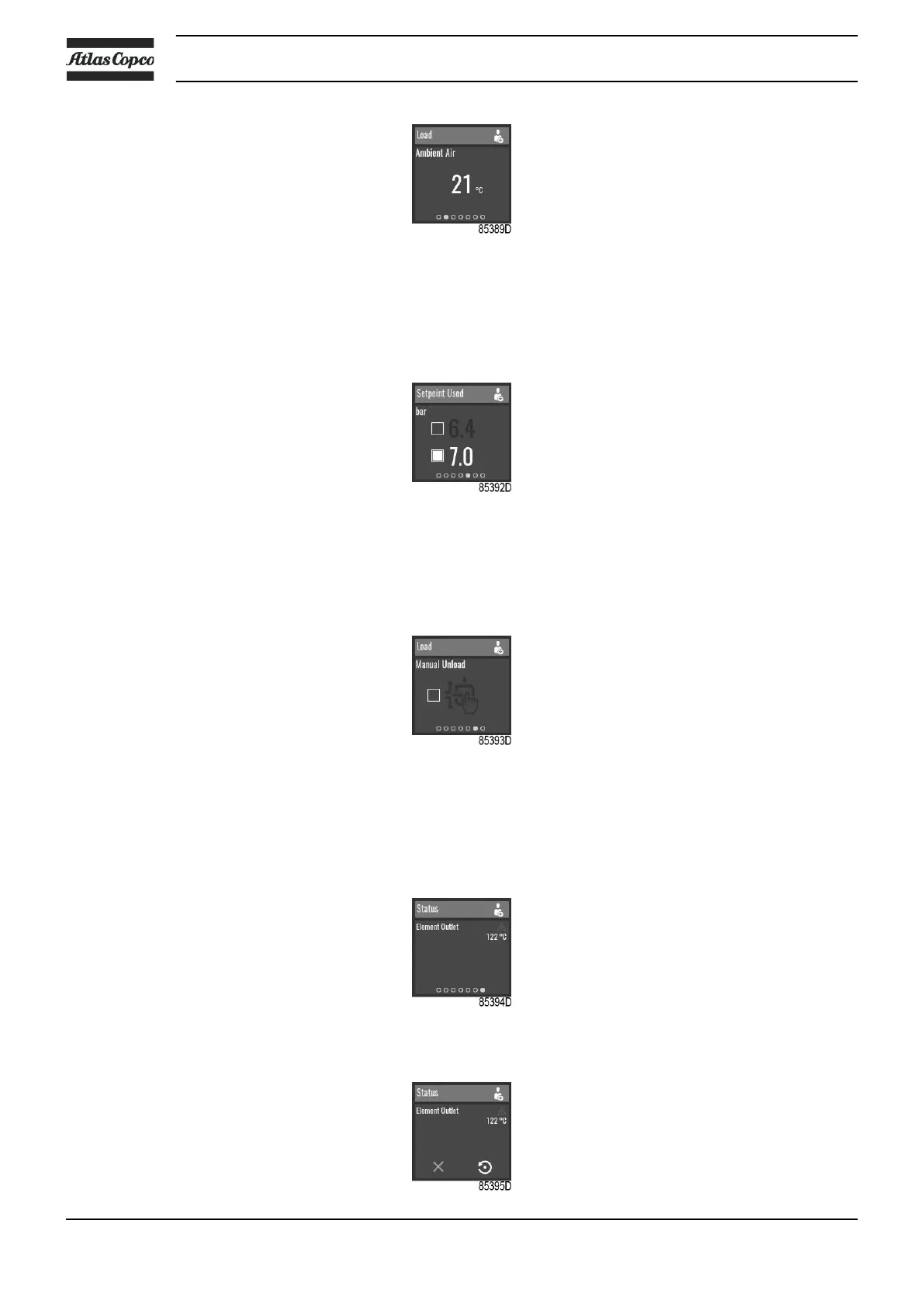

Example
Setpoint used
Starting from the main screen, swipe left until the Setpoint used screen is shown.
To switch to a different setpoint, swipe up or down on the left vertical swipebar or tap next to the
corresponding square.
Manual unload
Starting from the main screen, swipe left until the Manual unload screen is shown.
Manual unload can only be activated when the machine is in LOAD and Local control.
To manually unload the unit, tap on the left vertical swipebar.
Status
Starting from the main screen, swipe left until the Status screen is shown.
This screen shows the current status of the unit.
If an alarm is active, tap the right vertical swipebar.
Instruction book
32 2920 7118 31

Atlas Copco GA 11+ Specifications

General

Model	GA 11+
Category	Air Compressor
Power	11 kW
Working Pressure	7.5 bar
Height	1200 mm
Capacity FAD	29.3 l/s
Free Air Delivery	Varies with pressure, see FAD range
Noise Level	68 dB(A)
