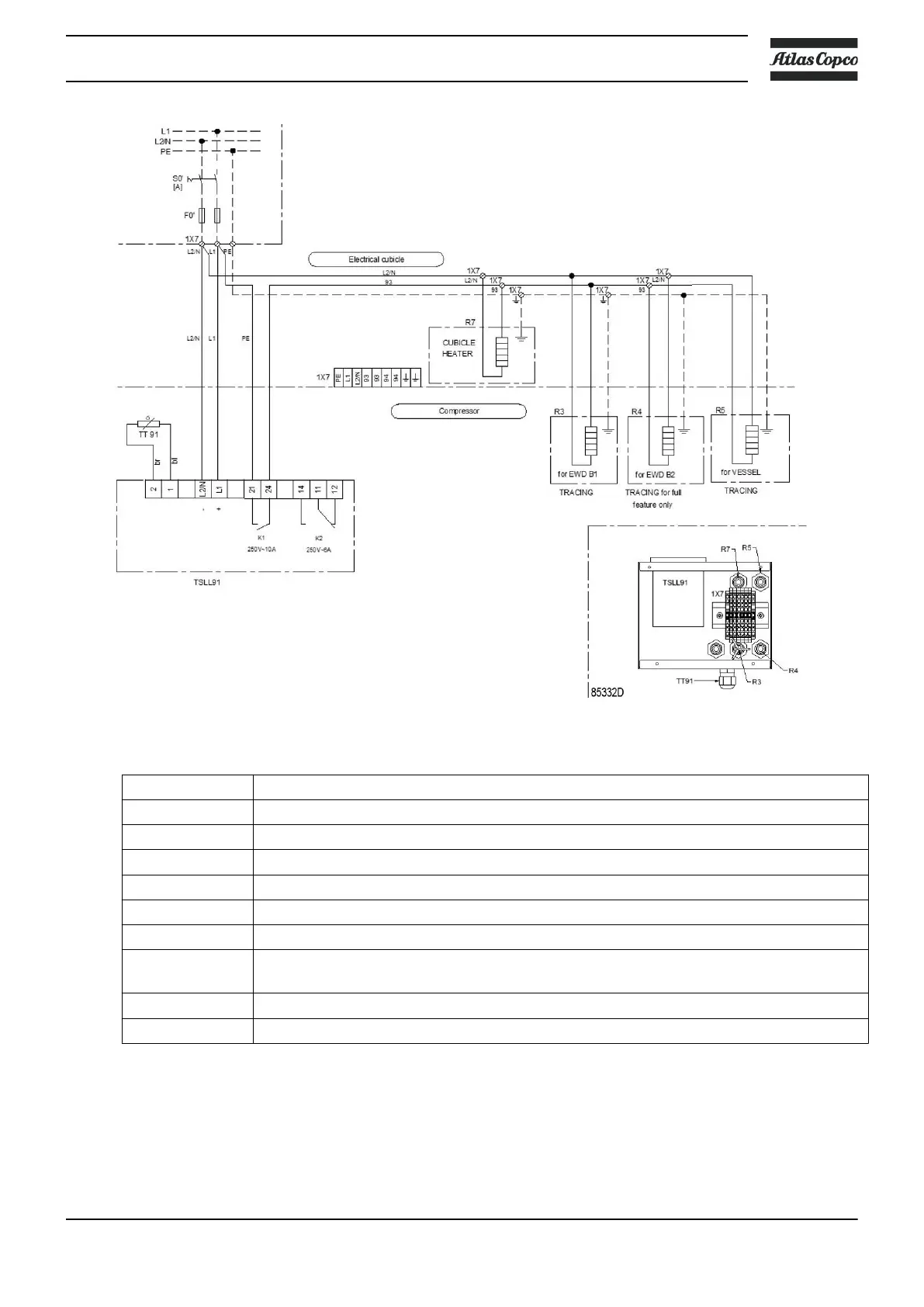

Freeze protection components
Reference Name
S0’ Main switch (Customer installation)
F0’ Main protection (Customer installation)
R3 Tracing for electronic water drain on after cooler
R4 Tracing for electronic water drain on dryer (Units with integrated dryer only)
R5 Tracing for vessel
R7 Heater for electrical cubicle
TSLL91 Thermostat CSA-UL/IEC
Factory setting 5°C, contact closes below setpoint
TT91 Temperature sensor for thermostat
1X7 Terminals
Instruction book
