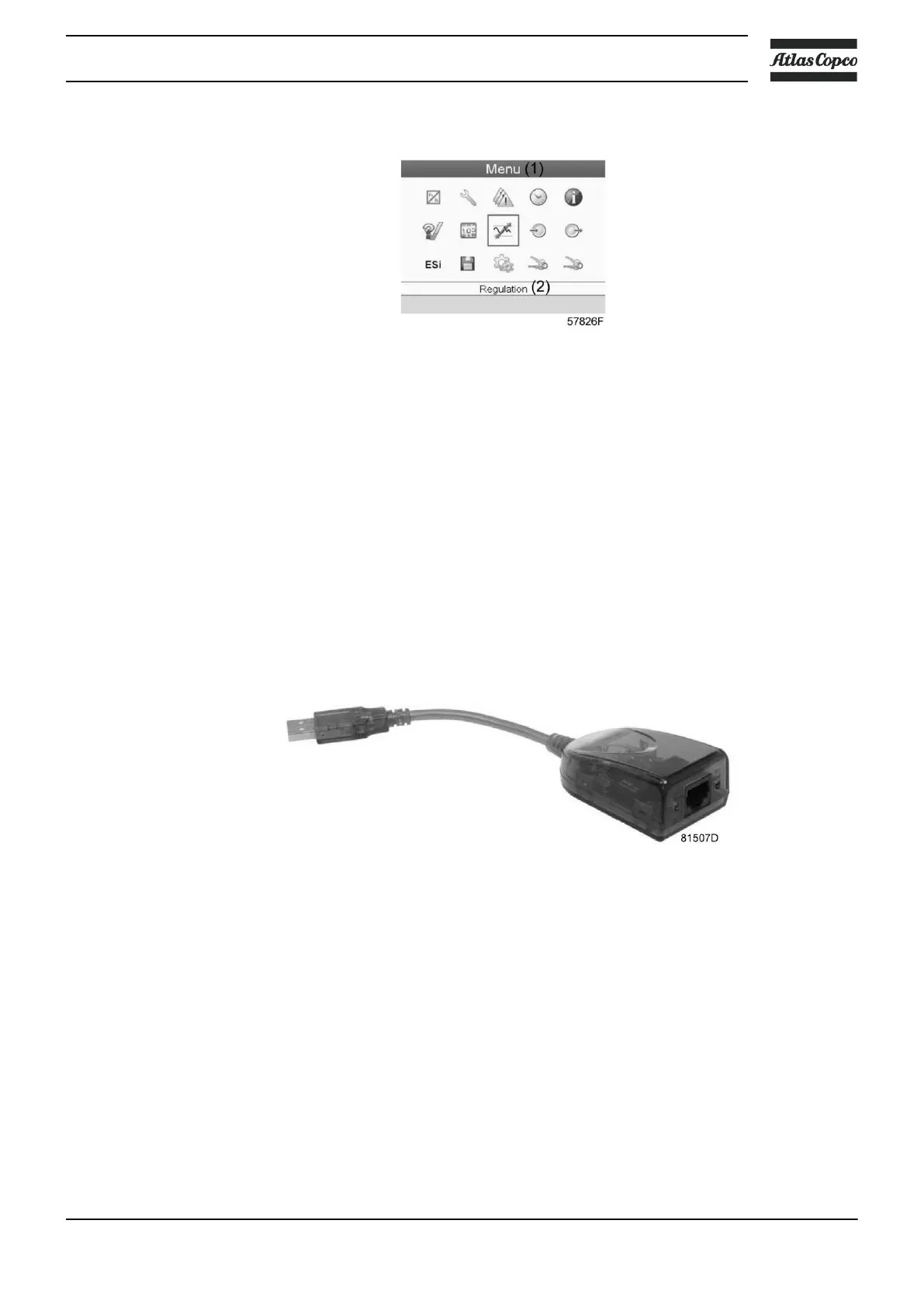

• Move the cursor to the action button Menu and press the Enter key. Following screen appears:
• Using the Scroll keys, move the cursor to the Password icon (see above, section Menu icon)
• Press the Enter key.
• Select the Modify button using the Scroll keys and press the Enter key. Next, modify the password as
required.
3.18 Web server
All Elektronikon controllers have a built-in web server that allows direct connection to the company network
or to a dedicated PC via a local area network (LAN). This allows to consult certain data and settings via a PC
instead of via the display of the controller.
Getting started
Make sure you are logged in as administrator.
• Use the internal network card from your computer or a USB to LAN adapter (see picture below).
USB to LAN adapter
• Use a UTP cable (CAT 5e) to connect to the controller (see picture below).
Instruction book
2920 7104 10 51
