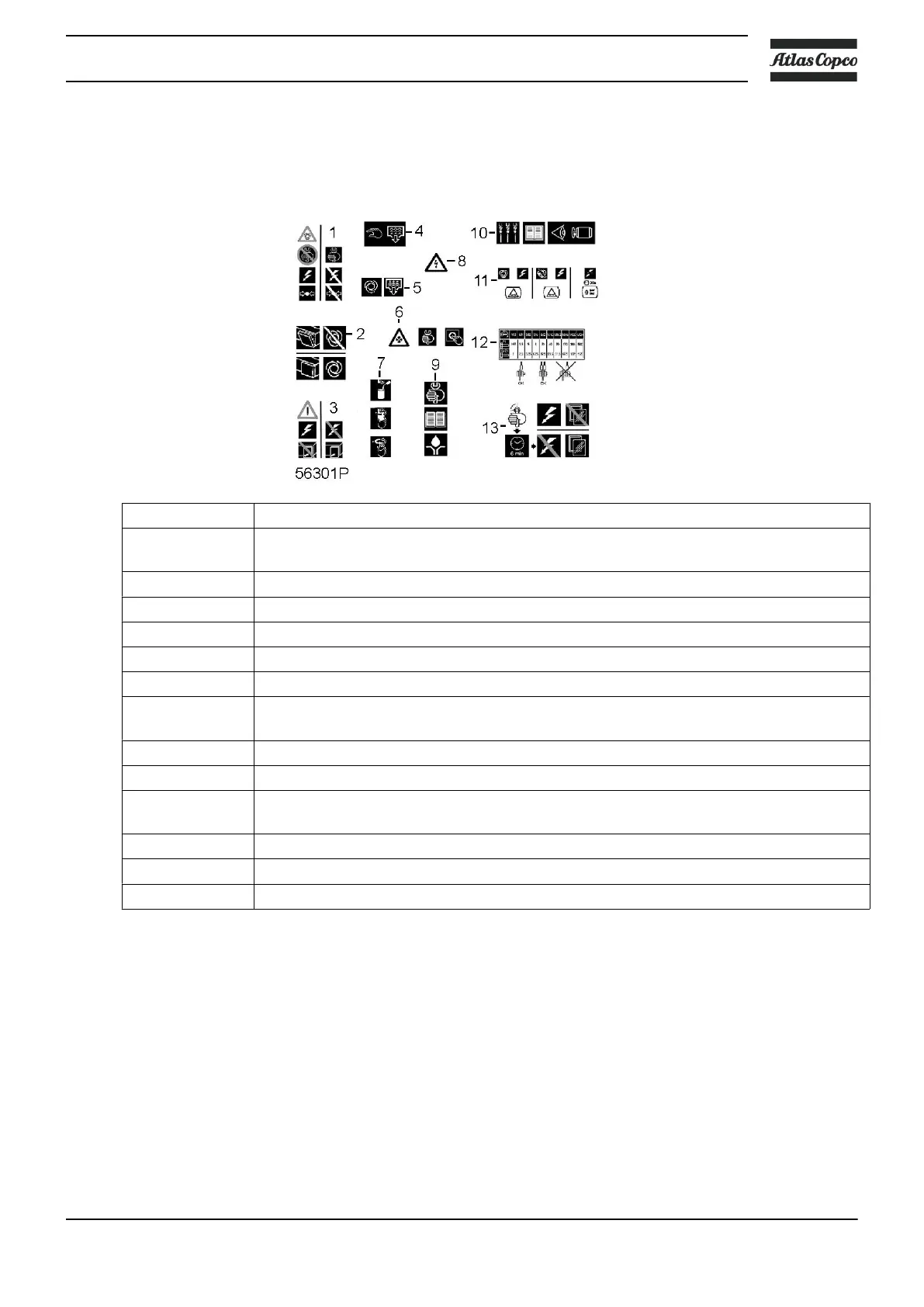

4.4 Pictographs
Explanation of pictographs
Reference Designation
1 Switch off the voltage and depressurize the compressor before starting maintenance or
repairs
2 Keep the doors closed during operation
3 Switch off the voltage before removing protecting cover inside electric cubicle
4 Manual condensate drain
5 Automatic condensate drain
6 Stop the compressor before cleaning the coolers
7 Lightly oil the gasket of the oil filter, screw the filter on and tighten by hand (approx. half a
turn)
8 Warning, voltage
9 Consult instruction book before greasing
10 Before connecting the compressor electrically, consult the Instruction book for the motor
rotation direction
11 Compressor remains pressurized for 30 seconds after switching off the voltage
12 Torques for steel (Fe) or brass (CuZn) bolts
13 Switch off the voltage and wait at least 6 minutes before removing the screen
Instruction book
2920 7104 10 65
