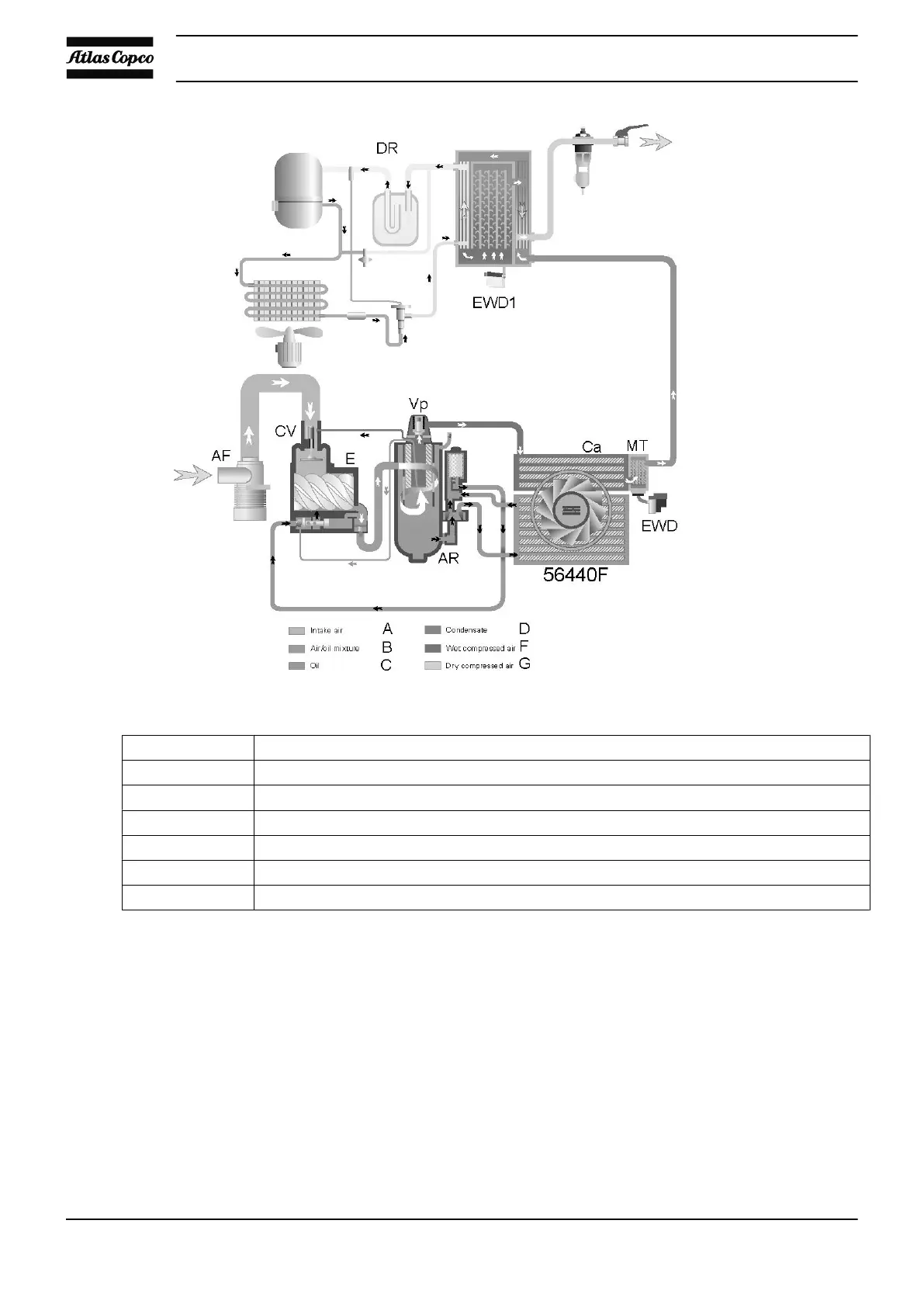

GA 75 VSD and GA 90 VSD Workplace Full-Feature
Reference Description
A Air inlet
B Air/oil mixture
C Oil
D Condensate
F Wet compressed air
G Dry air
Note: The cooling fan is not provided on water-cooled compressors.
Description
Air drawn through filter (AF) and check valve (CV) into compressor element (E) is compressed.
Compressed air and oil flow into the air receiver/oil separator (AR). The air is discharged through the outlet
valve via minimum pressure valve (Vp), air cooler (Ca) and condensate trap (MT).
Minimum pressure valve (Vp) prevents the receiver pressure from dropping below a minimum pressure and
includes a check valve which prevents blow-back of compressed air from the net.
Full-Feature compressors are provided with a dryer (DR).
Instruction book
16 2920 1634 04
