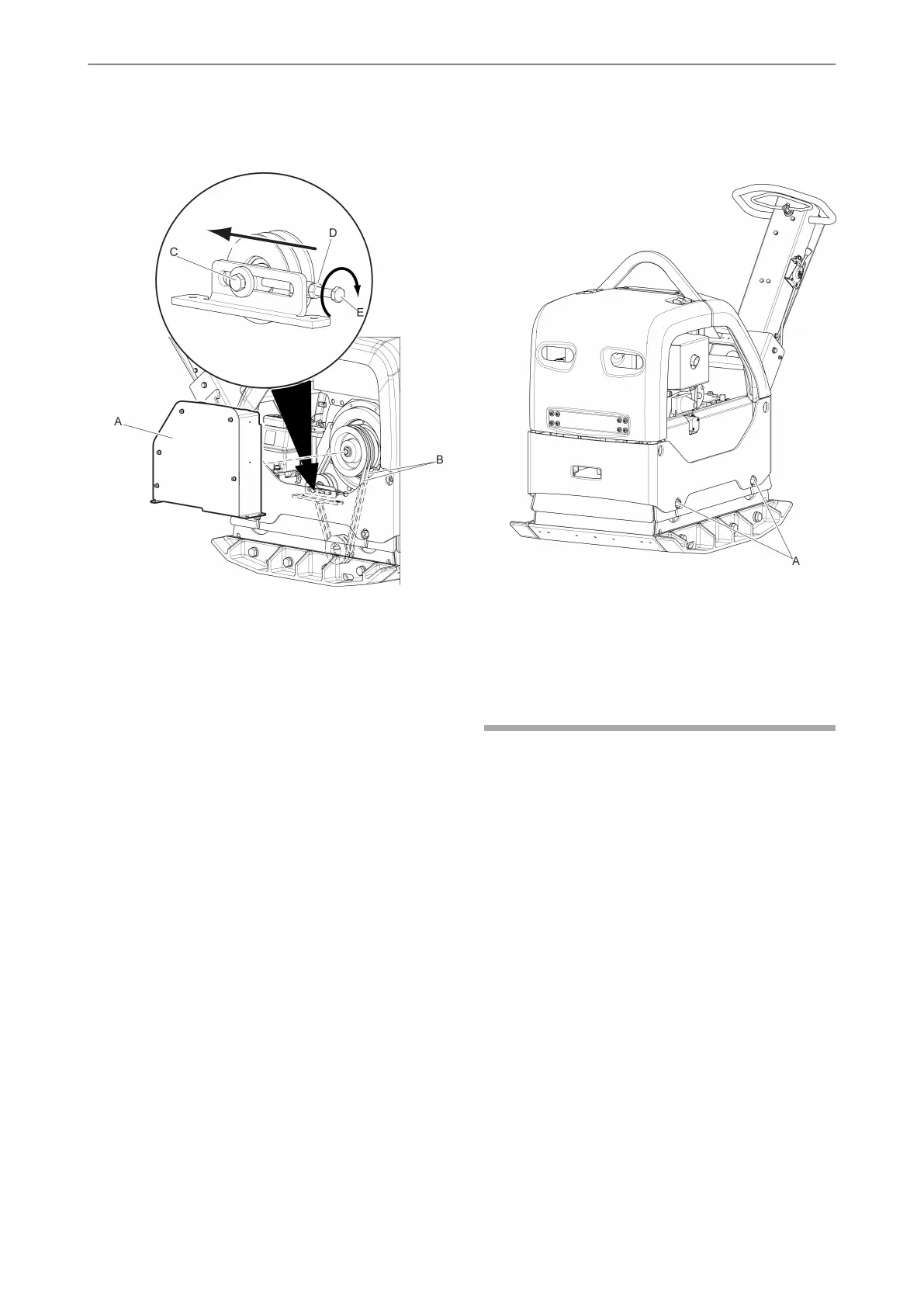

1. Remove the protective cover (A).
2. Check if the V-belt (B) is damaged, change if
necessary.
3. If the V-belt tension needs adjusting, release the
belt tensioner (C) and the lock nut (D).
4. Adjust the belt tightener with the adjustment
screw (E) .
5. Tighten the screw on the tensioner (C) and the
lock nut (D).
6. Reinstall the protective cover (A).
Checking the shock absorbers
1. Check all the shock absorbers (A) for cracks or
if they are exhausted. There are two shock
absorbers (A) on each side of the machine.
2. Change the shock absorbers (A) if they are
damaged.
Every 250 hours of operation
(every month)
Maintenance routines:
♦
Change the engine oil and replace the oil filter.
See the engine manual for more information.
♦
Clean the air filter housing and replace the air filter
on the engine.
♦
Check and adjust engine valve clearances. See
the engine manual for more information.
♦
Check and clean the engine air cooling system.
See the engine manual for more information.
♦
If a battery is fitted, check the battery connections.
♦
If operating is during high ambient temperature,
or intensive use of the machine, change the oil in
the eccentric element.
