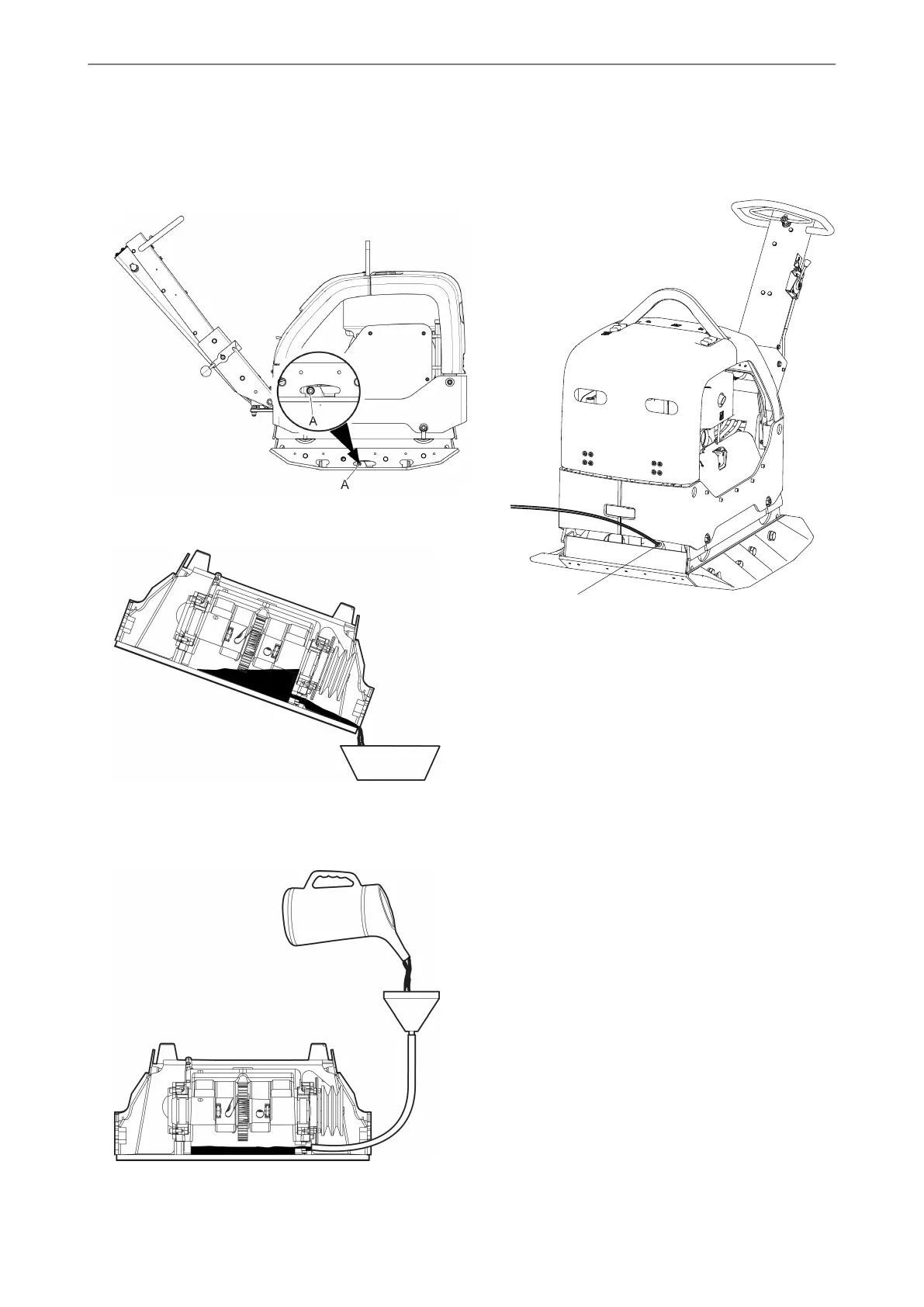

Changing the oil in the eccentric element
Drain the oil from the eccentric element by doing one
of the following ways:
Tilting the machine
1. Loosen the filler plug (A).
2. Tilt the machine.
3. Clean the sealing surfaces.
4. Level the machine and fill with oil.
5. Screw in the filler plug.
Using a suction pipe (optional eqiupment)
6. Loosen the sheet metal in front of the plug (B)
by unscrew two screws.
7. Loosen the plug (B) and add a suction pipe and
drain the oil.
8. Clean the sealing surfaces.
9. Fill the machine with oil.
10. Screw in the plug (B) and refit the sheet in metal
by screw in the screws.
