Power Focus 600 EN

Scenario

Further specifications and real life scenario to be investigated with Adam.

Procedure

1. Select the Batch sequence with the scanner

2. Run Batch 1 - Select batch by selecting the Socket selector’s first socket.

3. Run Batch 2 - Select batch by selecting the Socket selector’s third socket.

Tool calibration

{ , : profile5 in element [iosection]}

This tutorial describes how to adjust the tool by using the calibration settings on

the controller. You will learn how to set up your tool with the reference torque

transducer, what tightening program to use for your calibration, and how to use

the controller’s calibration function to adjust your tool.

Scenario

The tool calibration is scheduled to be performed once a year. During this oper-

ation when the operator checks the tool’s torque accuracy using an ACTA with

an IRTT it is discovered that the difference between the torque value given by

the tool differs from the torque value given by the ACTA. The operator realizes

that the difference in the torque readings exceeds the tool’s torque tolerance

values and that it needs an adjustment.

The tool is used to perform tightenings in the torque range 50–70 Nm.

The operator performs the calibration and adjusts the tool by entering the new

calibration value.

Required hardware Power Focus 600, Power tool, IRTT and ACTA.

Setting up the tool torque transducer

Make sure the tool and the controller are set up to perform tightenings. Set up

the tool with a torque reference transducer such as an ACTA or BLM Bench.

Please refer to the torque reference transducer’s user guide for setup instruc-

tions.

Selecting tightening program

Choose a Pset with a target torque corresponding to a tightening normally used

with the tool.

See Setting up a basic tightening [Page000] for a tutorial on setting up and ac-

tivating a suitable Pset.

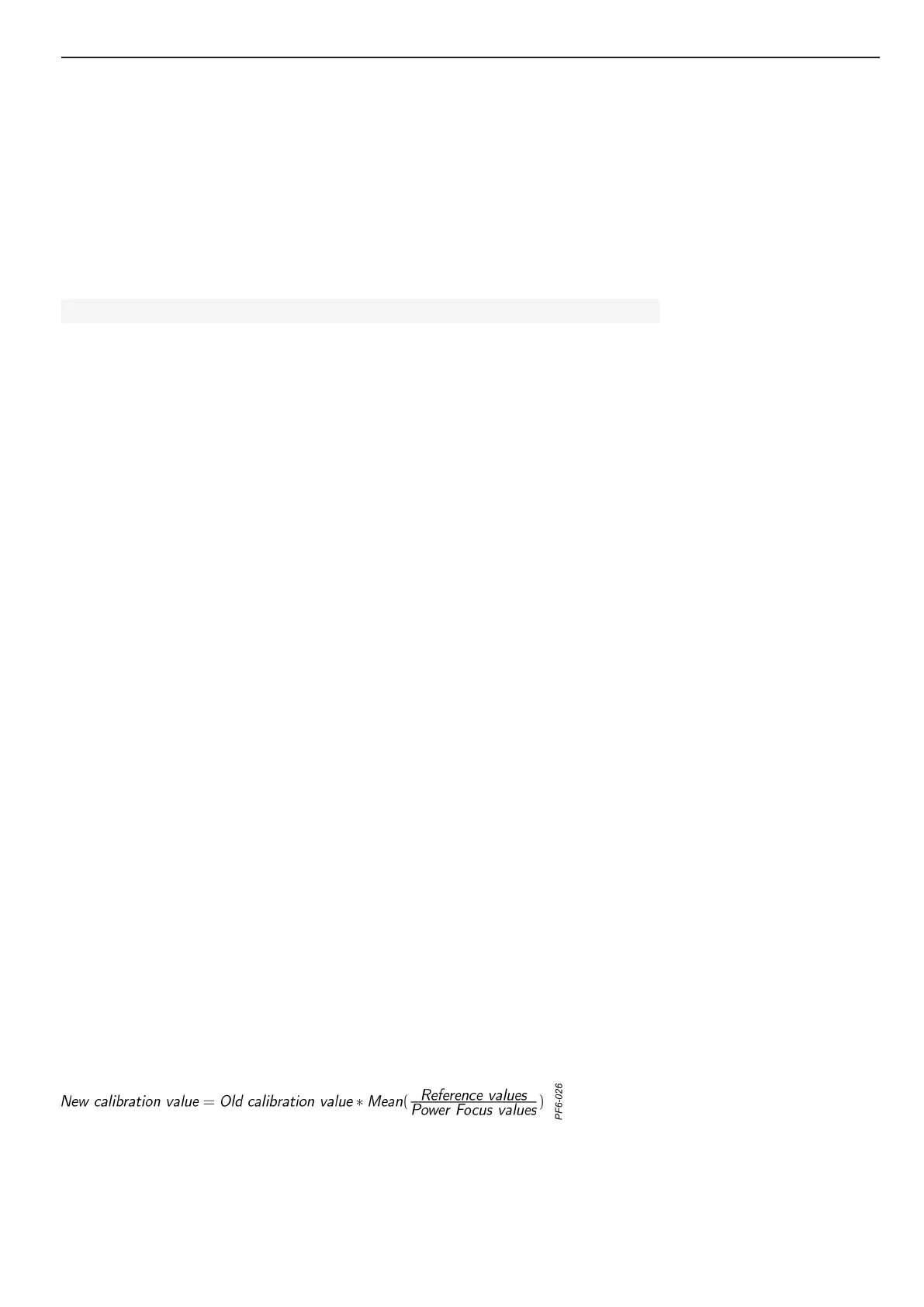

Adjust the tool’s calibration value

To set the tool’s calibration value it must first be calculated from the torque

readings from the controller and the torque reference transducer by using the

equation below.
