Atlas Copco Power Focus 600 User Manual

Power Focus 600 EN
© Atlas Copco Industrial Technique AB - 9836 4954 01
41

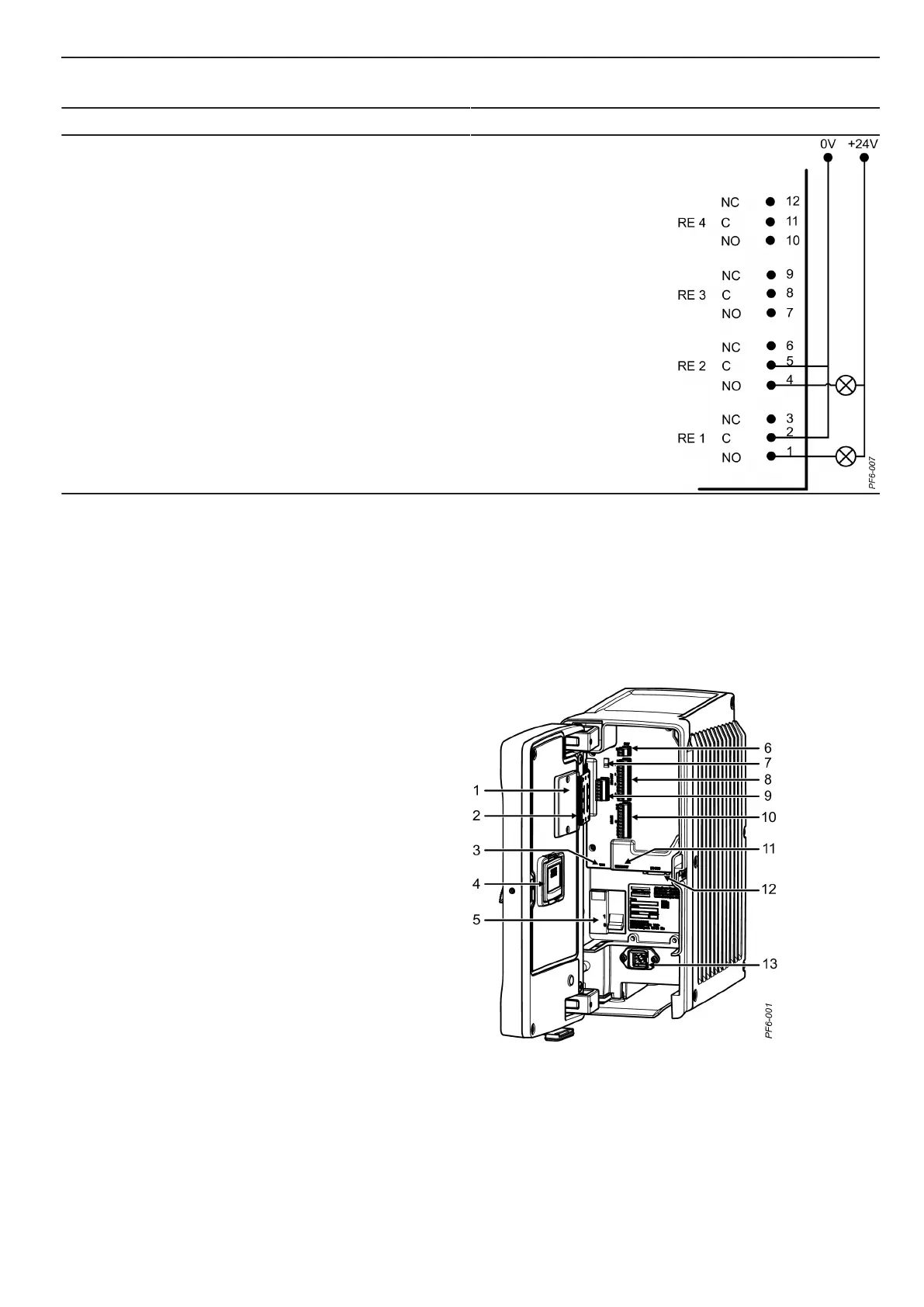

Digital output connector Power Focus 4000
Pin Relay Function
12 Normally closed
11 Relay 4 Common
10 Normally open
9 Normally closed
8 Relay 3 Common
7 Normally open
6 Normally closed
5 Relay 2 Common
4 Normally open
3 Normally closed
2 Relay 1 Common
1 Normally open
Controller connections
This section describes the connections on the Power Focus 600 controller’s
front and underside. Please refer to the Product instruction for more specific
technical data about the controller.
Connections – Front
Connections and switches on the Power Focus 600 controller.
1. Battery
2. Cable
3. USB port
4. IAM
5. Residual-current device (RCBO)
6. Aux. power out (24V, 1.5A)
7. Digital input
8. Digital output
9. Factory Ethernet port
10. I/O Bus
11. Power connector
