- 29 -

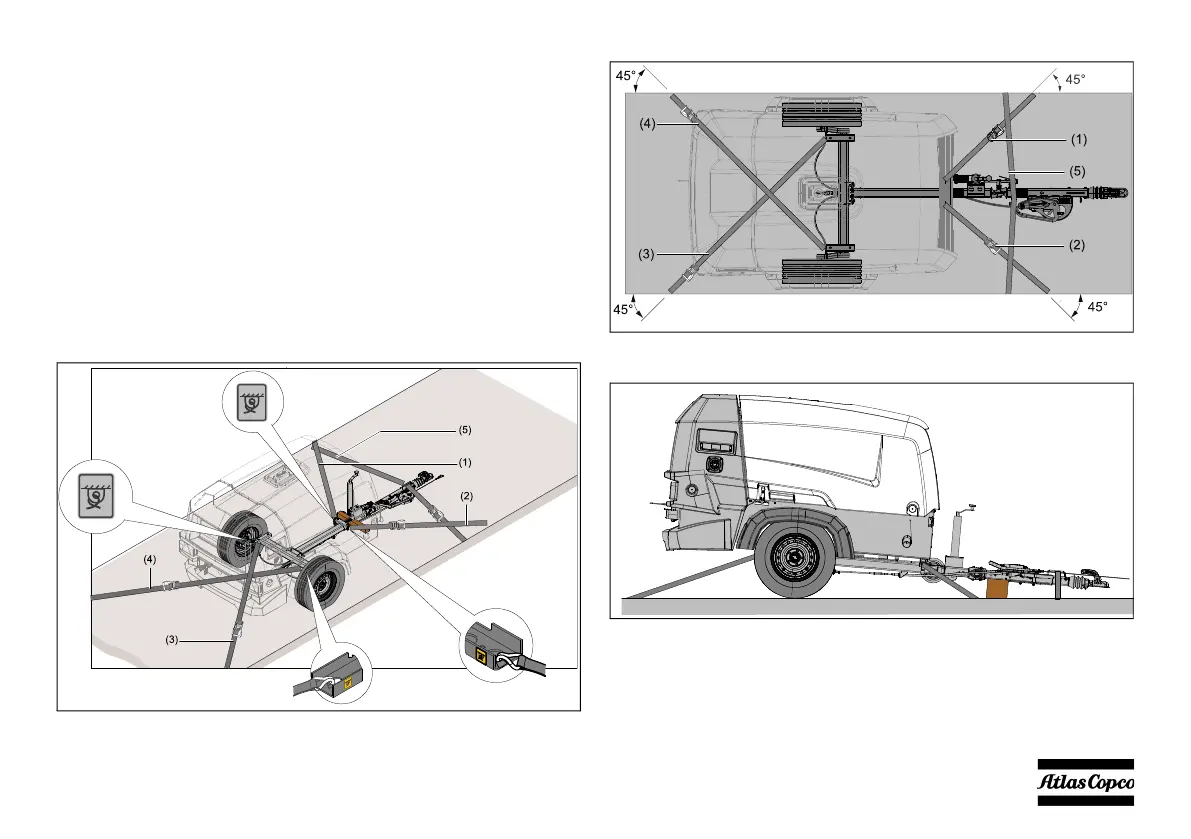

SECURING THE UNIT TO THE SHIPPING VEHICLE
1. Place the unit in centre position into the shipping vehicle so that the canopy is
parallel to the edges of the shipping vehicle.
2. For tie points 1 to 4, hook the four adjusting belts to the eyes of the unit and four
fixed belts to the eyes on the shipping vehicle.
3. Place the wooden block below the tow bar to make sure that the floor is not
damaged. It is recommended to keep minimum height of 15 cm.
4. Fasten the adjusting belts to the fixed belts, refer to Fixing The Lashing Belts
Make sure that an angle of 45° is maintained between the above fitted lashing
belts and the horizontal sides of the shipping unit.
5. For tie point 5, fit the hooks of the adjusting belt and the fixed belt to eyes
opposite to one another on the shipping vehicle.
6. Fasten the adjusting belt to the fixed belt so that the towing bar is tied down. For
the fastening procedure, refer to Fixing The Lashing Belts.
To Next Page
