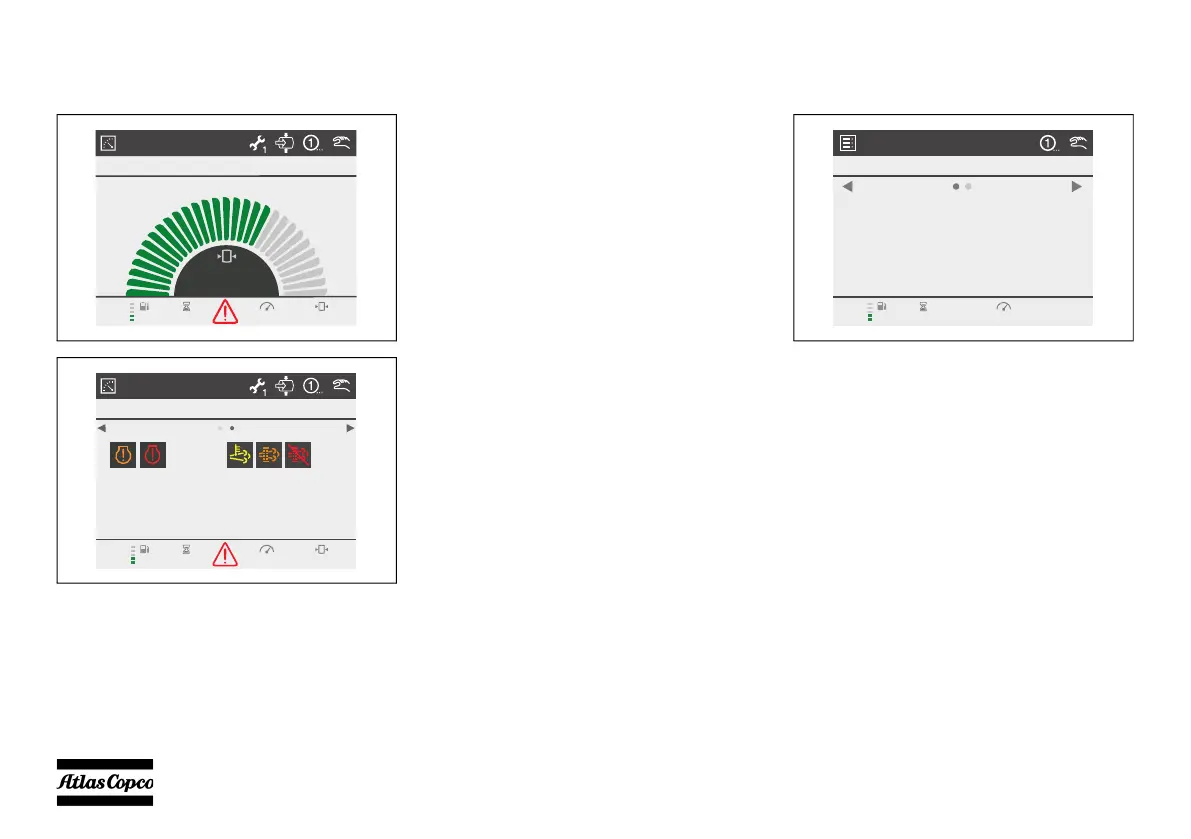

POSSIBLE VIEWS
Main View
Main view is the default view. In the main view the
operator can view the most important information on
the actual compressor operation, like:
Measurements View
In the measurements view the operator can view up to
100 measured values (depending on the authorisation
level).
Use the up and down navigation buttons to scroll
through the full list of measurements.
Use the left and right navigation buttons to scroll
through the different pages.
The first page contains general data
MAIN VIEW
LOADED
1300RPM 22.4bar1286h
22.4
40%
MAIN VIEW
LOADED
1300RPM 22.4bar1286h
40%
 Active Sequence
 Vessel pressure
 Engine rpm
 Fuel level
 Running hours
 Alarm indication
 Operation mode
 Pre-set indication
 Auto load indication
 Overhaul indication
 DPF indication
 Clock
 Fuel level
 Battery voltage
 Running hours
 Vessel pressure
 Regulating pressure
 Emergency stop count
 Loaded hours
MEASUREMENTS
READY TO START
--- RPM69h
Clock
2013-12-5 20:23
Fuel level 40%
Battery voltage 13.3 V
Running hours 69:46
LP Element Temperature 22°C
Regulating pressure 0.00 bar
40%
