- 34 -

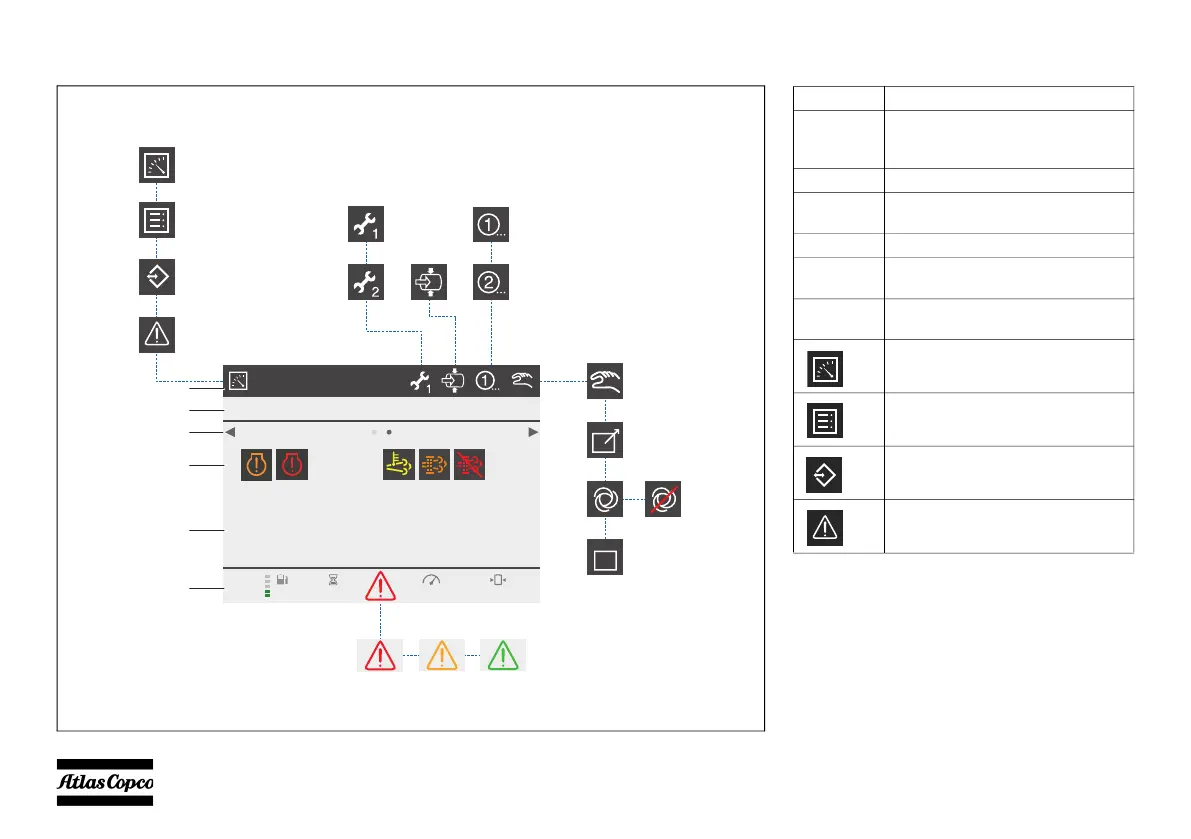

OVERVIEW ICONS
MAIN VIEW
LOADED
1300RPM 22.4bar1286h
40%
1
2
3
4
5
6
Reference Name
1 View, Overhaul, Auto load, Preset
and Active operation mode
indication
2 Active compressor status
3 Navigation, toggle between main
view and engine view
4 Engine information
5 Vessel pressure indication or
information text
6 Alarm indication and compressor
information
Main View Indication
Measuring View Indication
Settings View Indication
Alarm View Indication
