- 25 -

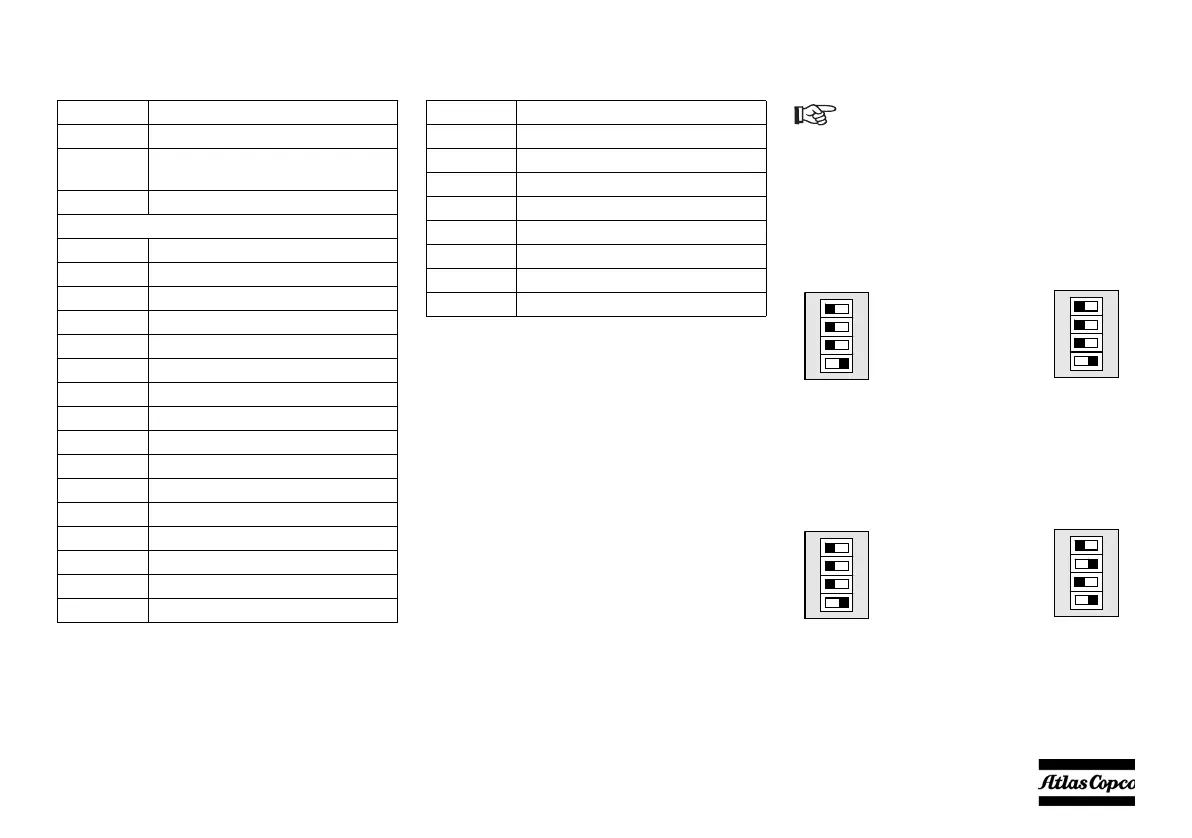

DIP SWITCHES FOR
XAHS 146 Dd, XATS 156 Dd AND XA(S) 186 Dd
Standard (no coldstart) With coldstart option
DIP SWITCHES FOR
XAVS 166 Dd AND XAHS 186 Dd
Standard (no coldstart) With coldstart option
Reference Name
1 To be used with Cold Start Option.
2 To be used with Refinery
Equipment.
3 Position of DIP-switches.
B6 Fuel Level Sensor
F1 Circuit Breaker
G1 Battery 12V
G2 Charging Alternator
K0 Starter Solenoid
K5 Auxiliary Starter Relay
K6 Cold Start Relay
K9 Overspeed Relay
M1 Starter Motor
N4 Control Module
N5 Overspeed Control Module
P1 Hourmeter
P2 Glowplug
P3 Fuel Level Gauge
S3 Compressor Temperature Switch
S4 Engine Temperature Switch
Reference Name
S5 Engine Low Oil Pressure Switch
S7 Overspeed Control Test Switch
S8 Push Button
S9 Coolant Level Switch
X1 Module Connector
Y1 Fuel Stop Solenoid
Y2 Excess Fuel Provider
Y3 Overspeed Solenoid
For correct functioning of the module,
the dip switches at the back of the
module should be positioned as follows.
Not used
Preheat-Coldstart
Low fuel level
Low coolant level
Not used
Preheat-Coldstart
Low fuel level
Low coolant level
DD6.book Page 25 Monday, November 10, 2014 11:25 AM
