TEST PROCEDURE OF BRAKE CABLE ADJUSTMENT

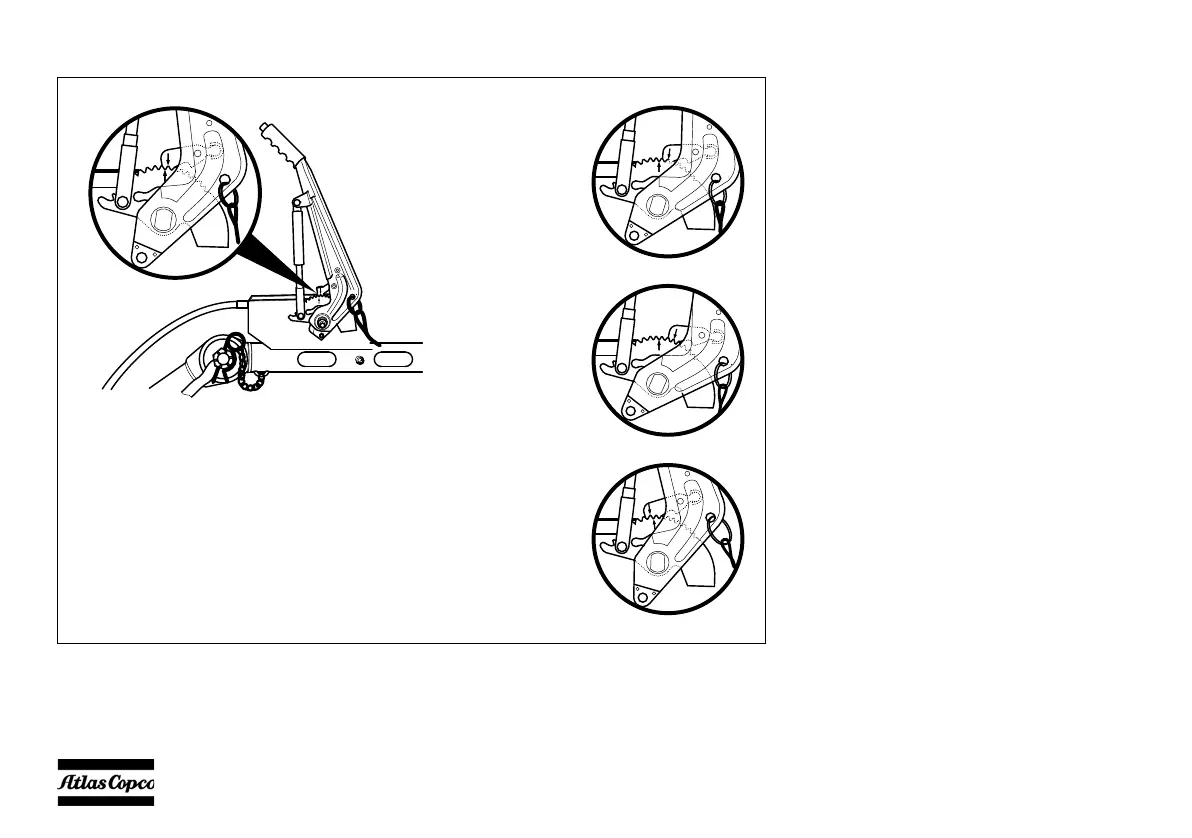

Correct and wrong position of markings
1. Check if the towing eye rod of the overrun brake
mechanism is in the outmost position.
2. Check if the adjustable towbar (= option) is in the
actual towing position.
3. Apply the hand brake lever.
4. Push the compressor a few centimeters backwards
so that the brake lever is automatically pulled up
further.
5. Check the position of the arrow marking ”1” at the
catch lock in combination with the arrow marking
”2” at the toothed sector, according to A,B,C,D.
2
1
B. Acceptable
C. Too loose;
adjust brake cables
(Section Brake
cable adjustment)
D. Too tight;
adjust brake cables
(Section Brake
cable adjustment)
A. Adjusted correctly
