AudioCodes Mediant 800 Series User Manual

CHAPTER3 Physical Description
Mediant 800 Gateway & E-SBC | Hardware Installation Manual
3 Physical Description
This section provides a physical description of the device.
Physical Dimensions and Operating Environment
The device's physical dimensions and operating environment are listed in the following table:
Table 3-1: Physical Dimensions and Operating Environment
Physical Specification Description
Dimensions (H x W x D) 1U x 32 x 34.5 cm (12.6 x 13.6 inches)
Weight 2.5 kg (5.5 lbs.)
Environmental ■ Operational: 5 to 40°C (41 to 104°F)
■ Storage: -25 to 85°C (-13 to 185°F)
■ Humidity: 10 to 90% non-condensing
Front Panel Description
The front panel provides the telephony port interfaces, various networking ports, reset pinhole
button, and LEDs.
Ports and Buttons
The device's front panel is shown in the following figure and described in the subsequent table.

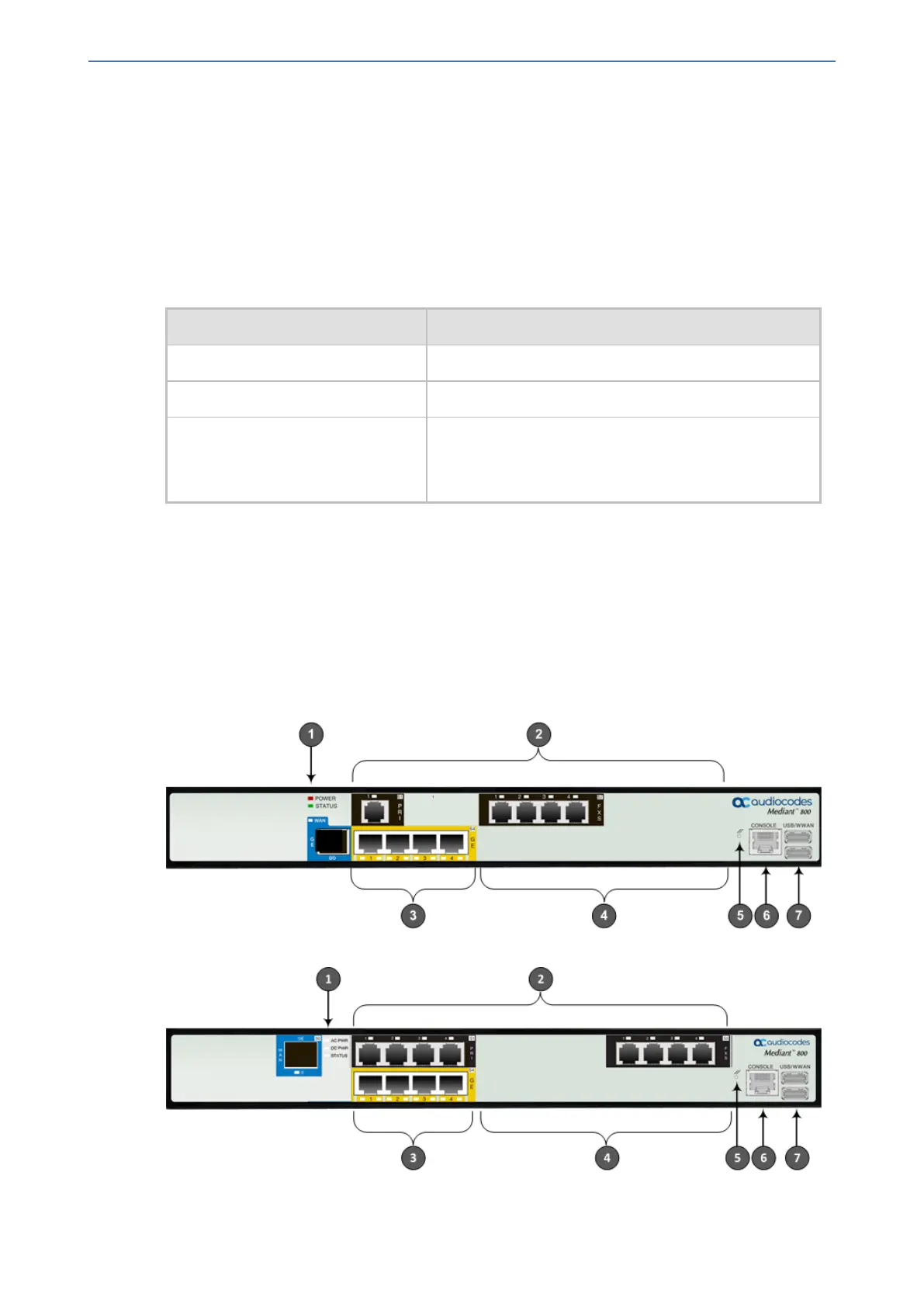

Figure 3-1: Mediant 800B Front Panel
Figure 3-2: Mediant 800C Front Panel
