Connections Between Fire Detection Systems and AutroMaster ISEMS
Installation and Commissioning Handbook, AutroMaster ISEMS - Integrated Safety and Emergency Management System,
116-P-AMASTER-INSTCOMM/IGB, Rev. C, 2016-05-20, Autronica Fire and Security
Page 75
7.5 Cable Specifications
This chapter deals with cable specification for AutroSafe (version 4
and earlier versions), Autroprime 2.0 and AutroMaster ISEMS.
Twisted pair cable is of type Category 5 or better with RJ-45
connectors. This cable is also called a “patch cable”.
The cable exists in two versions, either one-to-one cable or crossed
cable.
Crossed cable must be used for direct communication between
AutroMaster and AutroSafe/Autroprime.
One-to-one cable must be used if AutroMaster is connected to one or
several AutroSafe systems through a switch.
The length of one twisted pair cable must not exceed 90 meters.
If the communication distance exceeds 90 meters an amplifier or a
switch must be installed. The maximum distance when using a switch
is 180 meters. (Each twisted pair cable is 90 meters).

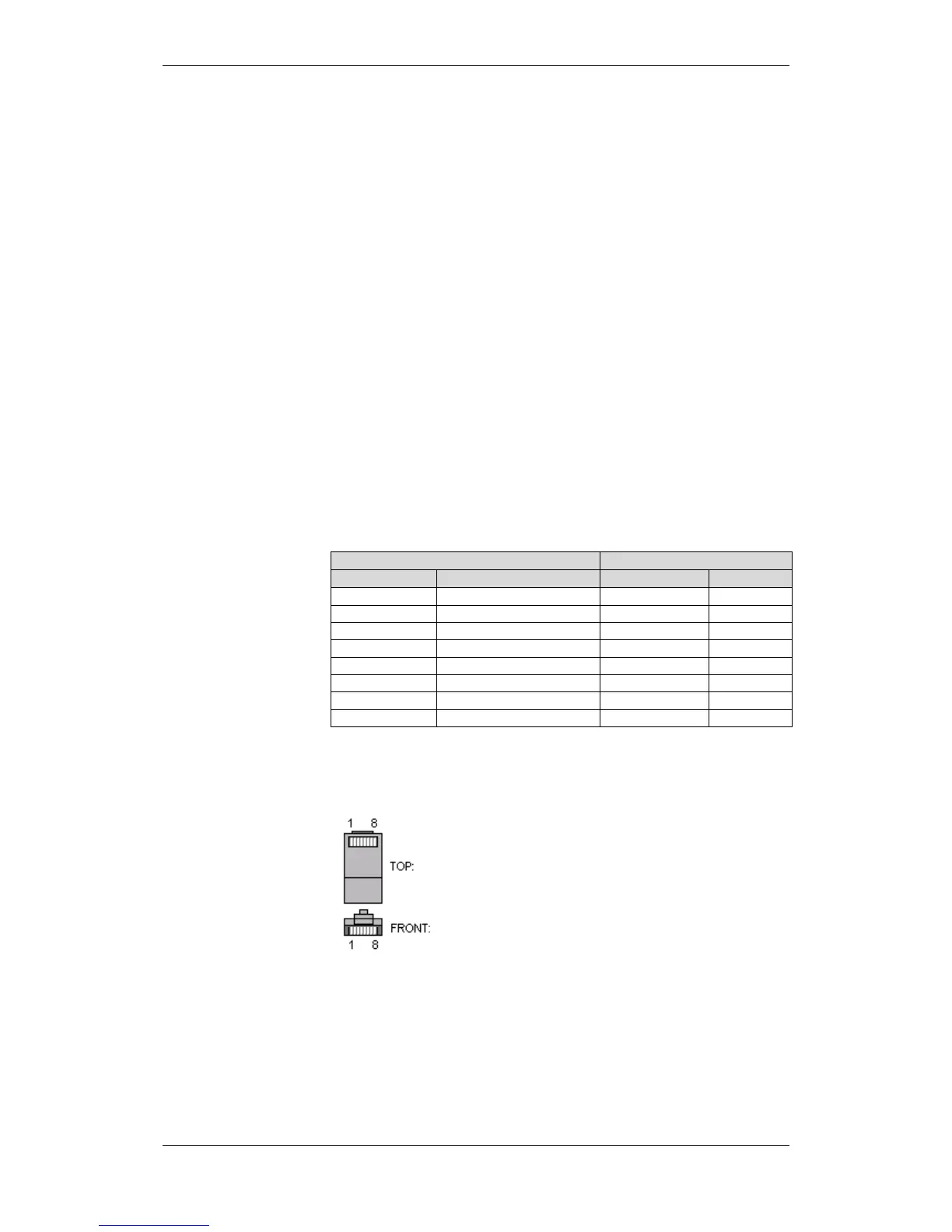

Connections twisted pair cable.
Crossed Cable
One-to-one cable
AutroMaster
AutroSafe/Autroprime
AutroMaster
Hub
1
3
1
1
2
6
2
2
3
1
3
3
4*
4*
4
4
5*
5*
5
5
6
2
6
6
7*
7*
7
7
8*
8*
8
8
* Can be connected, but not necessary.
RJ-45 Connector
