AUX-DC inverter ARV outdoor unit individual series technical manual
101

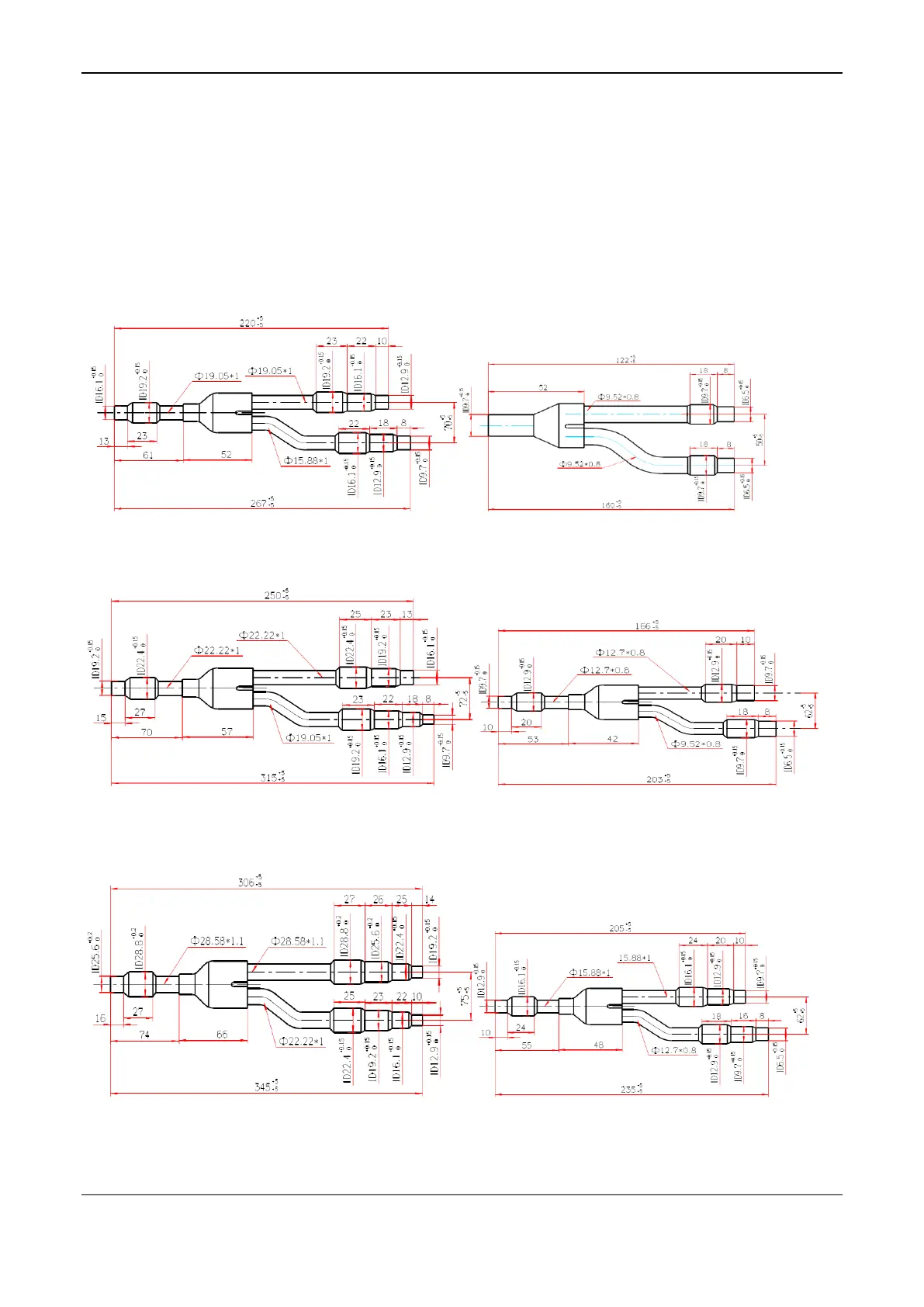

3.5 Type and physical dimension of branch pipe
It’s allowable to select branch pipe with similar specification as long as it meets pressure-proof
requirement. It’s required that no leakage at gas pressure of 4.5MPa and no distortion and leakage at
hydraulic pressure of 6.3MPa.
AFG-00B Physical Dimension
Gas side joint Liquid side joint
AFG-12B Physical Dimension
Gas side joint Liquid side joint
AFG-24B Physical Dimension
Gas side joint Liquid side joint
