AUX-DC inverter ARV outdoor unit individual series technical manual
112

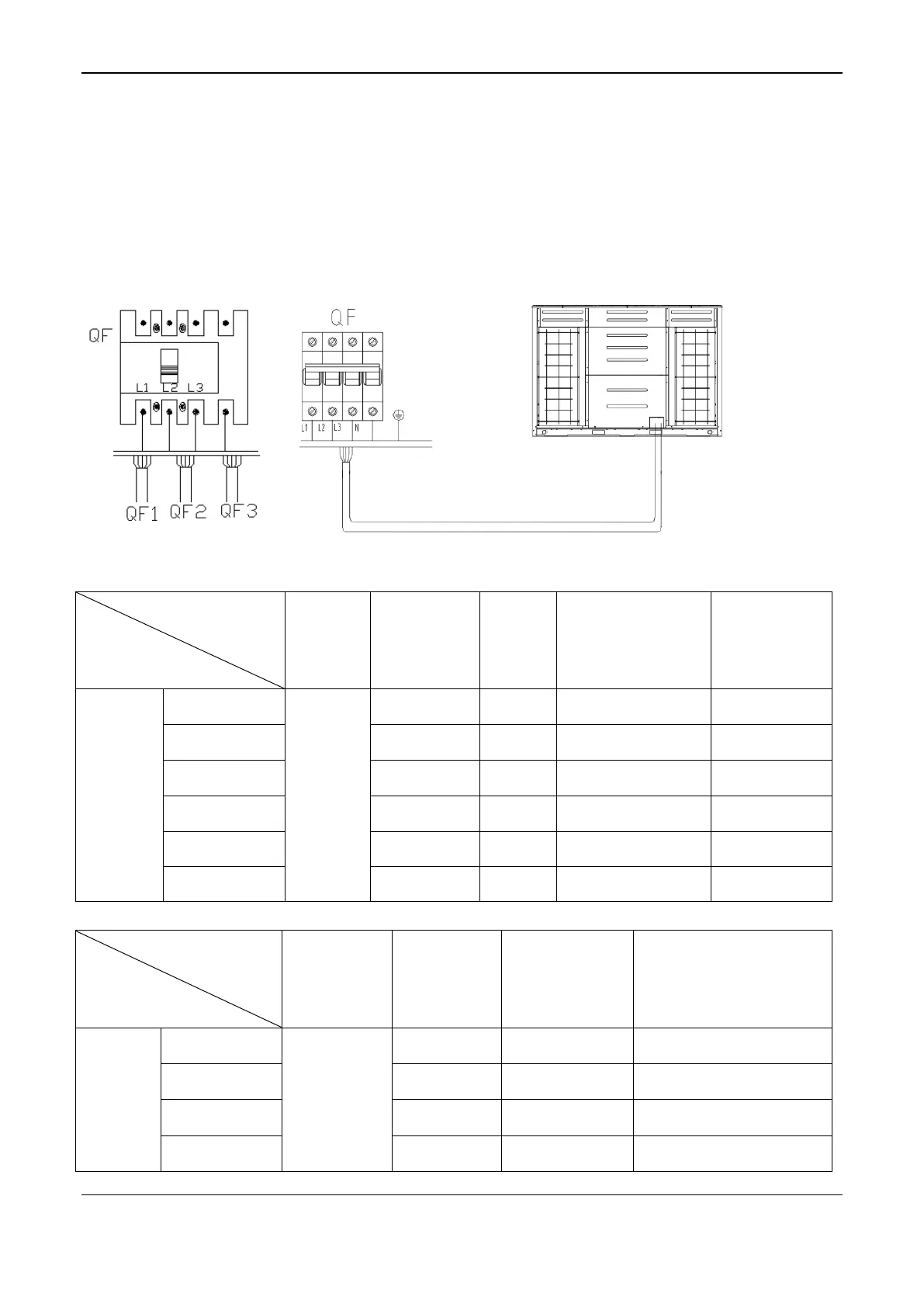

6.2 Wiring Diagram of Indoor Unit and Outdoor Unit
Note:
Power line must be properly fixed;
Each outdoor unit must be grounded;
Each indoor unit must be grounded;
Power wire must be thickened when it is overlong.
Wiring Diagram of Modular Outdoor Unit
Recommended Specification for Power Line of Outdoor Unit (stand-alone power supply)
Item
Unit
Type
Power
supply
Sectional
area of power
line (mm
2
)
Rated
current
breaker
(A)
Rated current of
breaker
Leakage current
Operate time
Containing an
area of ground
wire(mm
2
)
Separate
power
ARV-H615/5R1B
380V-415V
3N～
50Hz
16
50
30mA,＜0.1 sec.
16
ARV-H670/5R1B
16
50
30mA, ＜0.1 sec.
16
ARV-H730/5R1B
25
80
30mA, ＜0.1 sec.
16
ARV-H785/5R1B
25
80
30mA, ＜0.1 sec.
16
ARV-H850/5R1B
25
80
30mA, ＜0.1 sec.
16
ARV-H900/5R1B
25
80
30mA, ＜0.1 sec.
16
Recommended Specification for Power Line of Indoor Unit (separate power supply from outdoorunit)
Item
Unit
Type
Power supply
Sectional
area of power
line (mm
2
)
Rated current of
over current
breaker (A)
Rated current of breaker
Leakage current
Operate time
Separate
power
<10 A
Single-phase
220-240V/
50Hz
2.5
16
20 A,30mA,＜0.1 sec.
≥10 A and <15 A
4
20
25A,30mA,＜0.1 sec.
≥15 A and <22 A
6
32
40 A,30mA,＜0.1 sec.
≥27 A
10
40
50 A,30mA,＜0.1 sec.
