19
AACB8001
Light Board

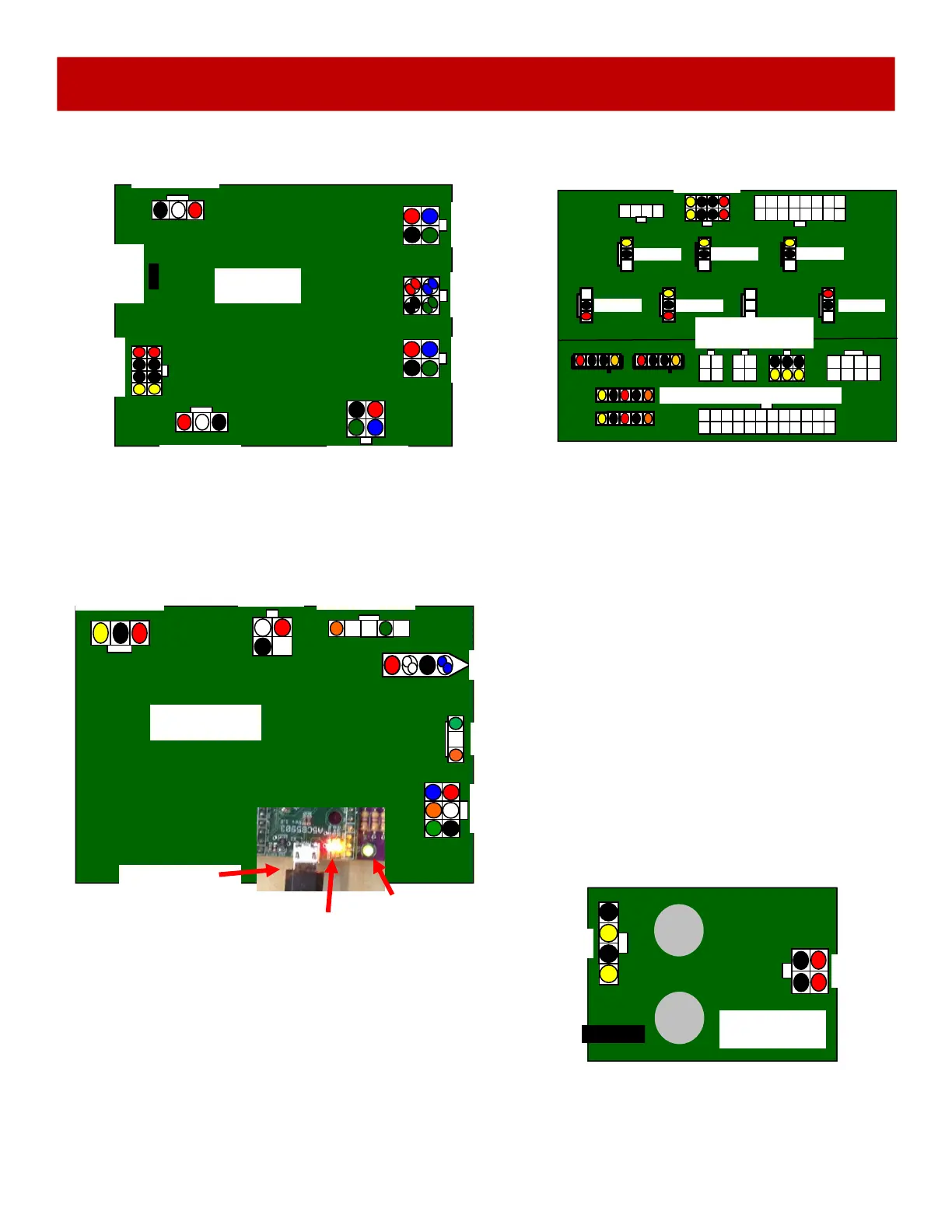

CIRCUIT BOARD LAYOUT
A5CB9600
Audio Amplifier
A5CE2300
Audio Cable
AACE8001
Speakers
AACE8015
12 VDC In
AACE8028
Right LED’s
AACE8002
Plunger Sensor
AACE8003
Control Panel
LED’s
AACE8007
Cannon
LED’s
AACE8009
Floor
LED’s
AACE8008
Monitor
Edge LED’s
AACE8016
Power In
from Power
Dist. Board
A5CORD58
USB Commu-
nication from
Motherboard
AACB9604
I/O Aux Board
AACE8006
Ticket Dispenser
AACE8005
Menu Buttons
& Meters
AACE8006
Coin Mech
AACE8014
Power in from
Power Dist Bd
AACE8004
DBA Cable
AACE8006
Ticket Switch
AACB5156
Power Dist. Board
AACE8016
Power to
8001 Board
Power In from Power Supply
CE8017 CE8015
CE8015
CE8000
CE8014
Red and
Yellow
LEDs
Green
Power
LED
A5CORD58
USB Communication
from Motherboard
CE8006
