HOW TO REPLACE MONITOR
Description:
As monitors become obsolete, a different model monitor must be used. The current monitor has
differences and some modification to the mounting will be needed. These instructions will walk you
through replacing the monitor on the Willy Crash Game.
There are 2 options available to you for this update:
1.) Use the included paper template to drill holes in your existing large piece of wood.
2.) Use the included large piece of wood and swap all of the components from the old piece of wood
to the new piece.
Note: The small piece of wood will be needed no matter which
above option is chosen.
Tools Needed:
# 2 Square bit screwdriver Phillips Screwdriver
7/16” Socket Wrench Jigsaw
Instructions:
Unplug the game’s power cord from the wall.
Unlock and remove the back door of the game.

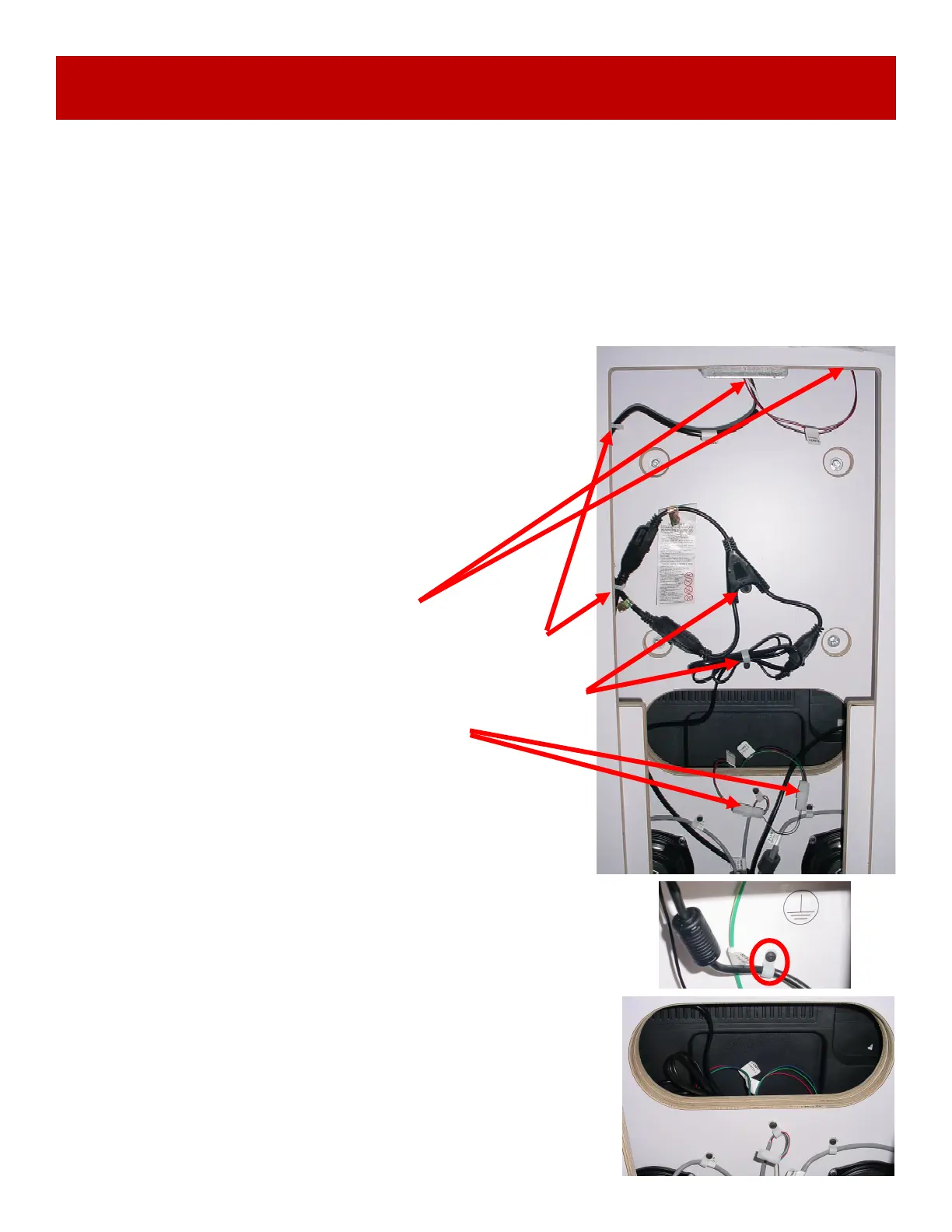

The back panel needs to be cleared by:
Unplug the top 2 connectors.
Remove the 3 white plastic wire saddles from the wood by
twisting and pulling. Save to be reinstalled later.
Remove the 2 wood screws using a # 2 Square bit screwdriver.
Unplug the bottom 2 connectors.
Unplug the monitor power cord from the Y connector in the
back.
The HDMI cable must be unplugged from the front of the game
and be removed as the monitor is removed.
Open front door.
Remove the 1 black screw on HDMI cable using a # 2 square bit.
Unplug the HDMI cable from the video card.
Pull this cable to the back of cabinet.
Tuck the light cables, HDMI cable, and the monitor power cord
inside the access hole so it can be removed with the wood and
monitor.
